Blower Unit: Installation

  1. INSTALL BLOWER ASSEMBLY
    1. Install the blower assembly with the 3 screws.
  2. INSTALL AIR CONDITIONING UNIT
    1. Install the air conditioning unit (see INSTALLATION ).
  3. INSTALL AIR DUCT (See  INSTALLATION  )
  4. INSTALL LOWER INSTRUMENT PANEL
    1. Install the lower instrument panel (see INSTALLATION ).
  5. INSTALL UPPER INSTRUMENT PANEL
    1. Install the upper instrument panel (see REASSEMBLY ).
  6. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  7. CHECK SRS WARNING LIGHT
    1. Check the SRS warning light (see DIAGNOSIS SYSTEM ).

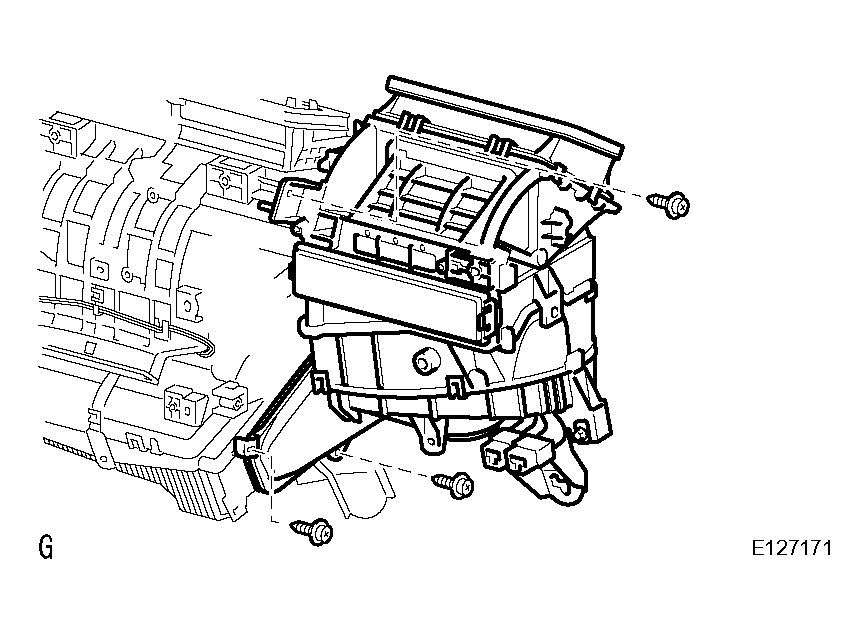

      Fig 1: Installing Blower Assembly
      G04490042Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
