Blower Unit: Disassembly

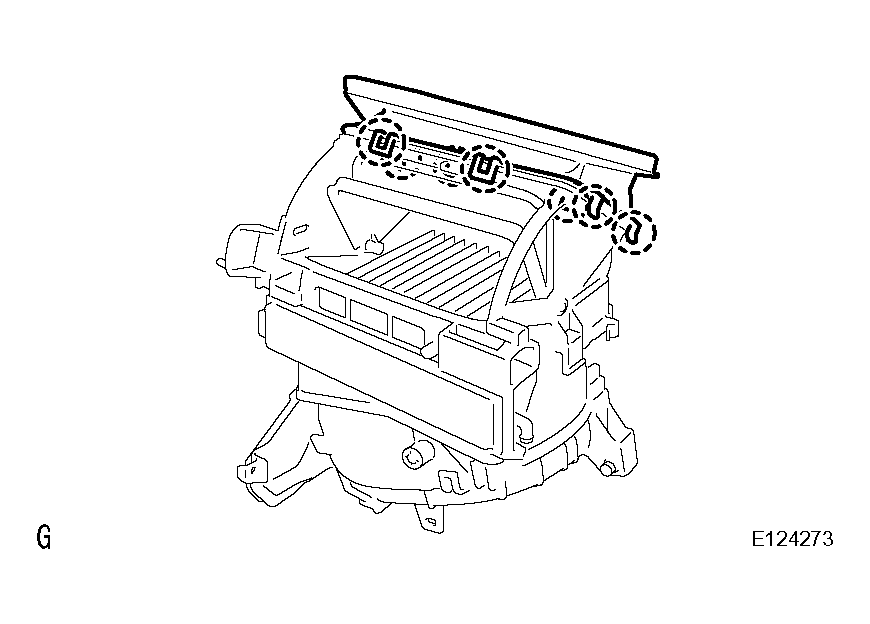

REMOVE HEATER TO REGISTER DUCT ASSEMBLY
1. Detach the 7 claws and register duct.

  Fig 1: Removing Register Duct
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

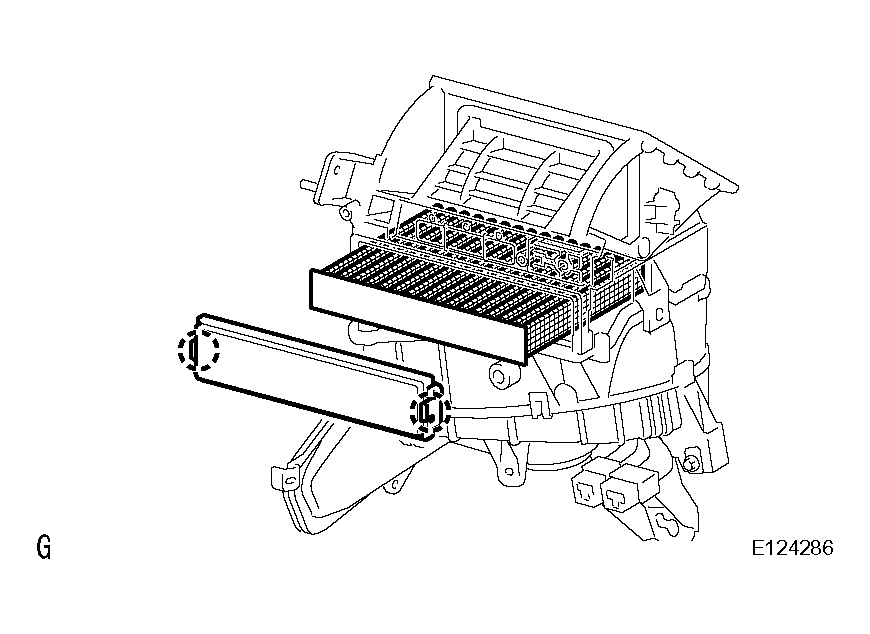

REMOVE AIR FILTER CASE
1. Detach the 2 claws and remove the air filter case.
2. Remove the air filter.

  Fig 2: Removing Air Filter Case
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

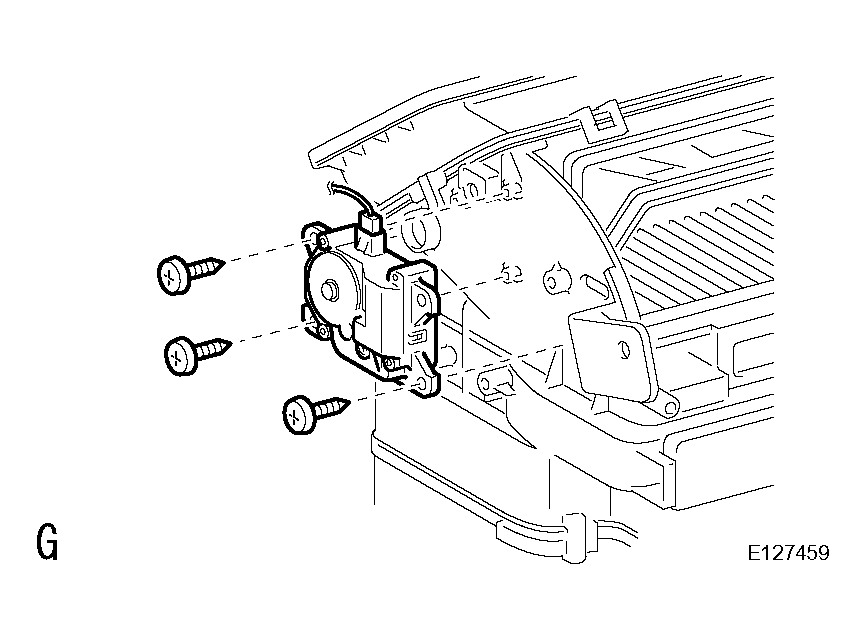

REMOVE AIR INLET CONTROL SERVO MOTOR (For Manual Air Conditioning System)
1. Remove the 3 screws and air inlet servo motor.

  Fig 3: Removing Air Inlet Servo Motor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE AIR INLET CONTROL SERVO MOTOR (For Automatic Air Conditioning System)

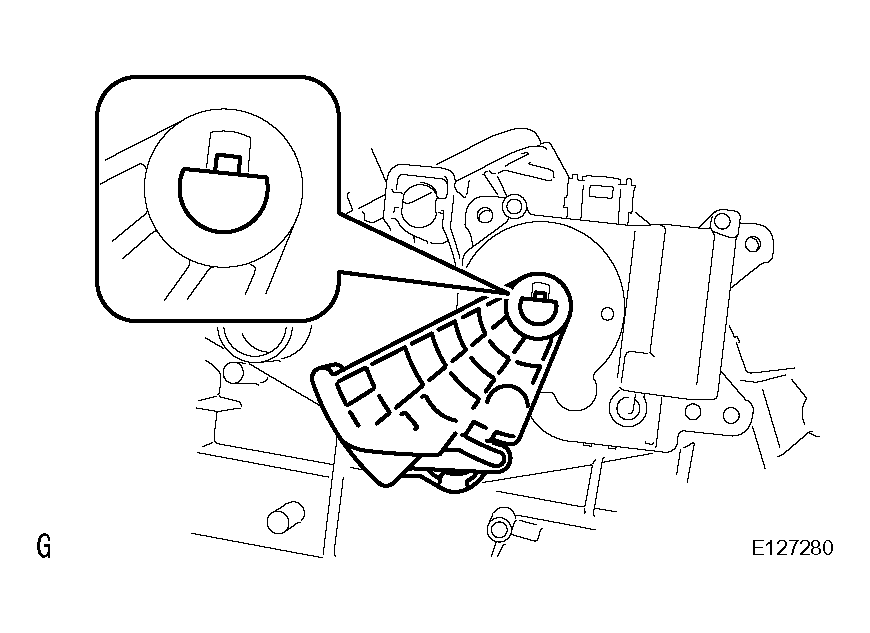

1. Detach the claws and lever.

  Fig 4: Detaching Claws And Lever
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

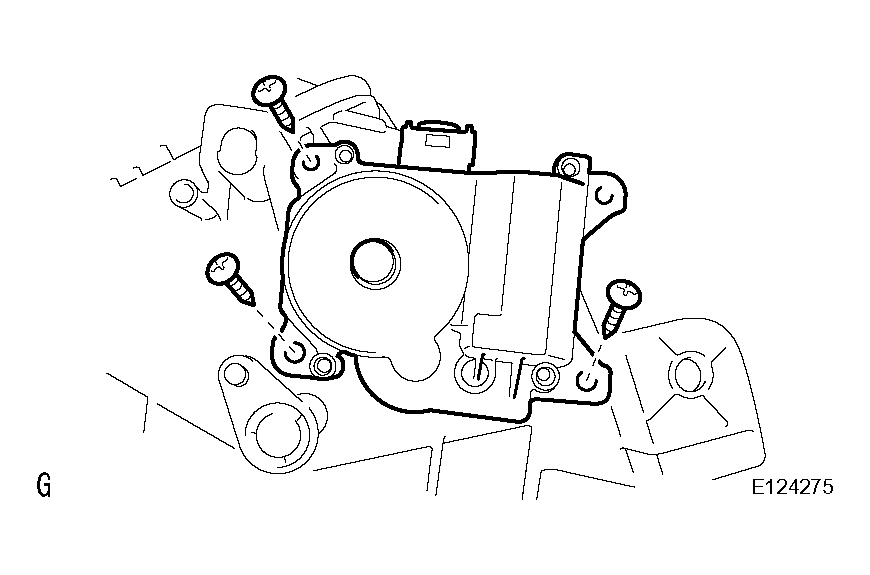

2. Remove the 3 screws and air inlet servo motor.

  Fig 5: Removing Air Inlet Servo Motor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

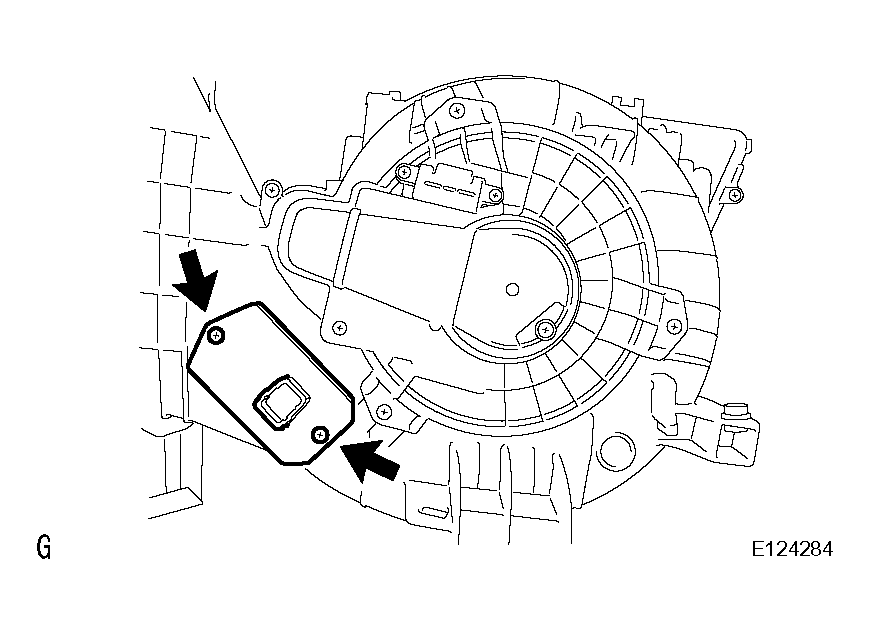

REMOVE BLOWER RESISTOR (For Manual Air Conditioning System)
1. Remove the 2 screws and blower resistor.

  Fig 6: Removing Blower Resistor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

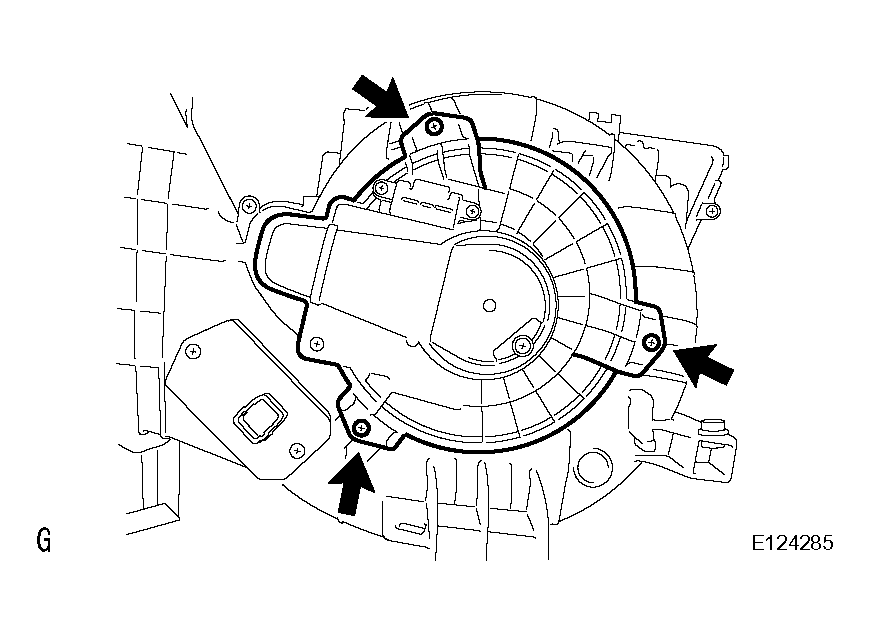

REMOVE BLOWER MOTOR
1. Remove the 3 screws and blower motor.

  Fig 7: Removing Blower Motor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
