4WD Control Ecu: Installation

WARNING: This page is about a different variant/trim than selected.
  1. INSTALL 4WD CONTROL ECU
    1. Install the ECU with the bolt.

      Torque: 4.5 N*m (46 kgf*cm, 40 in.*lbf)

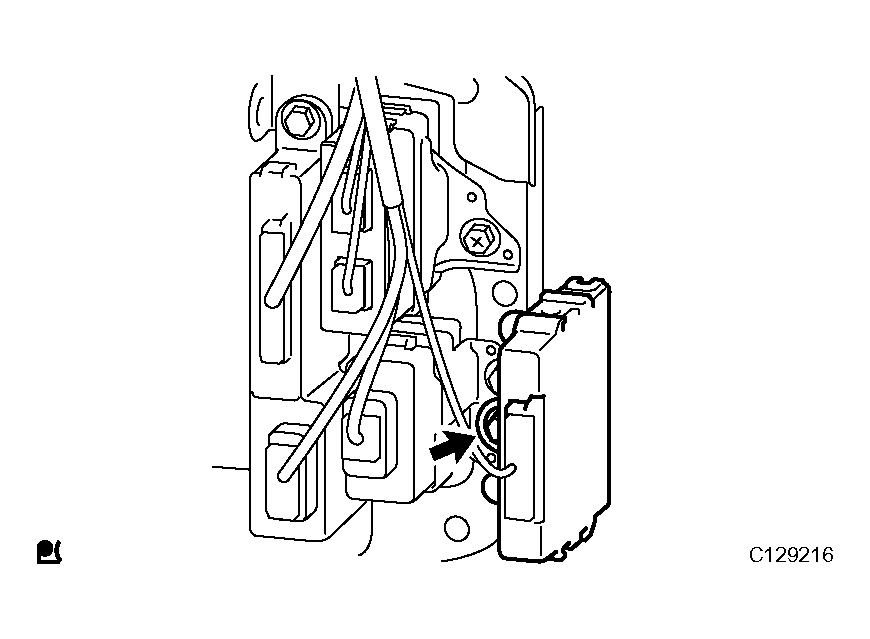

      Fig 1: Installing 4WD Control ECU
      G04488836Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the connector.
  2. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY (See appropriate step(s) under  INSTALLATION  )
  3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
