Water Pump: Components

WARNING: This page is about a different variant/trim than selected.

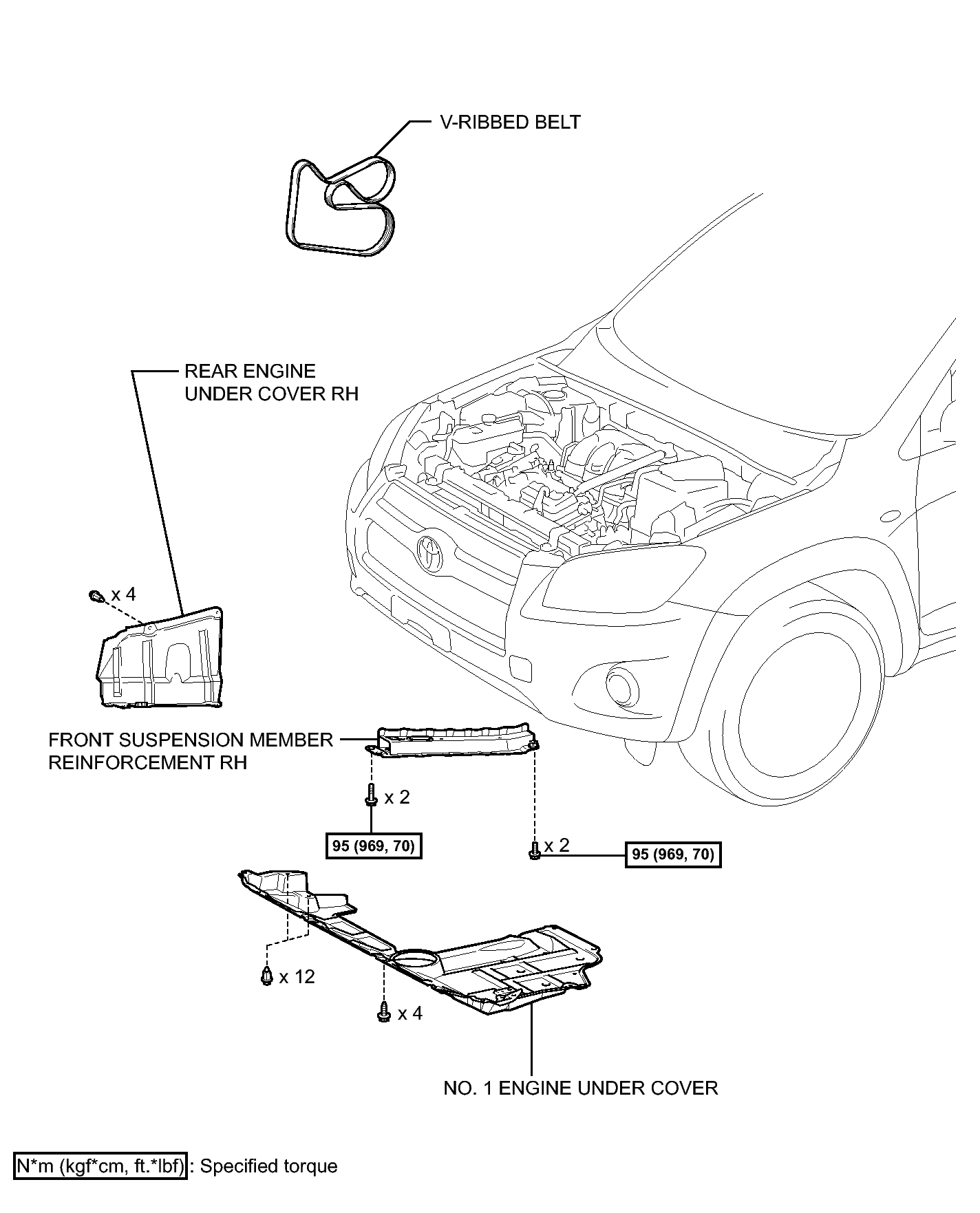

Fig 1: Identifying Water Pump Replacement Components With Torque Specifications (1 of 3)
GTY219209Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

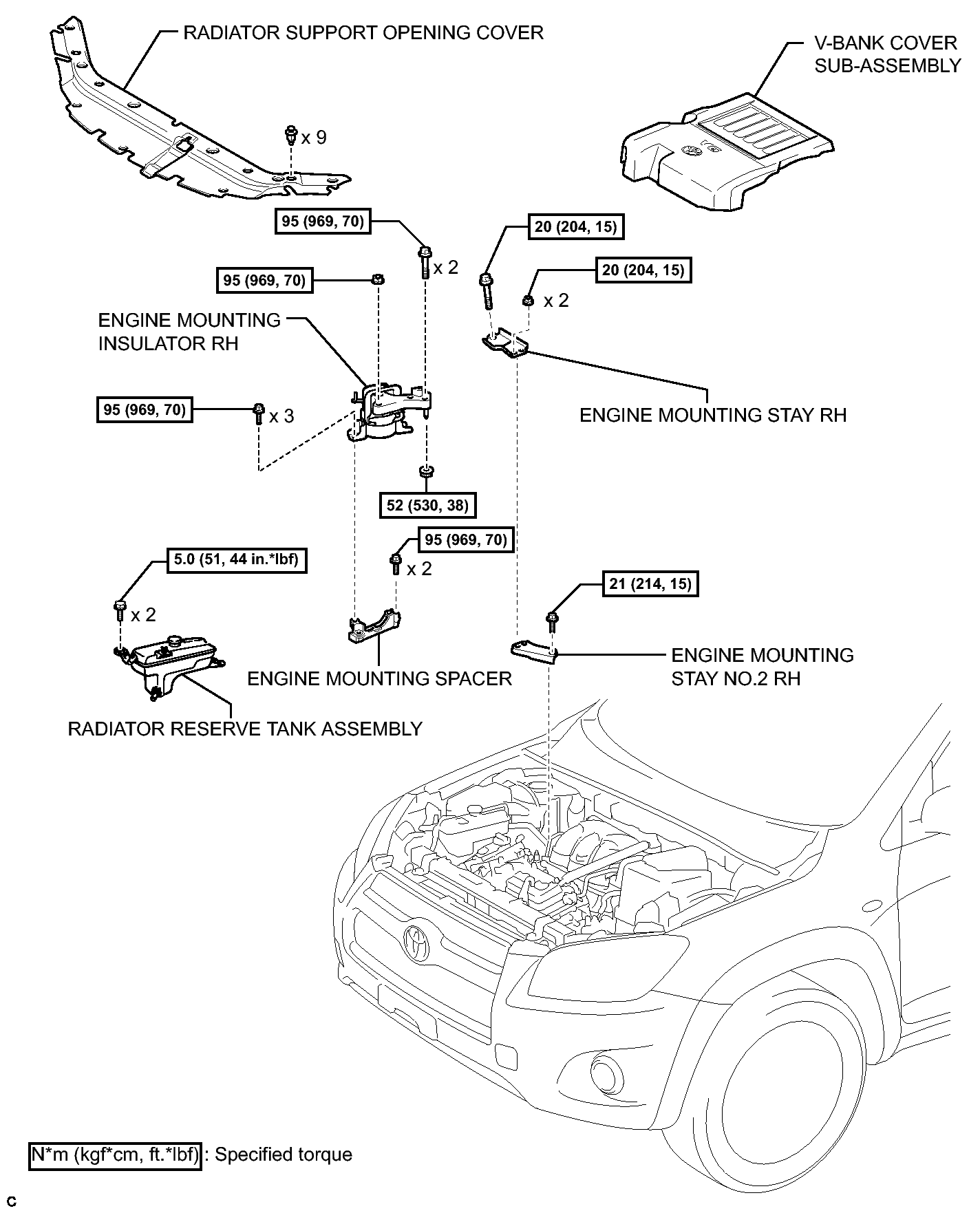

Fig 2: Identifying Water Pump Replacement Components With Torque Specifications (2 of 3)
GTY235499Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

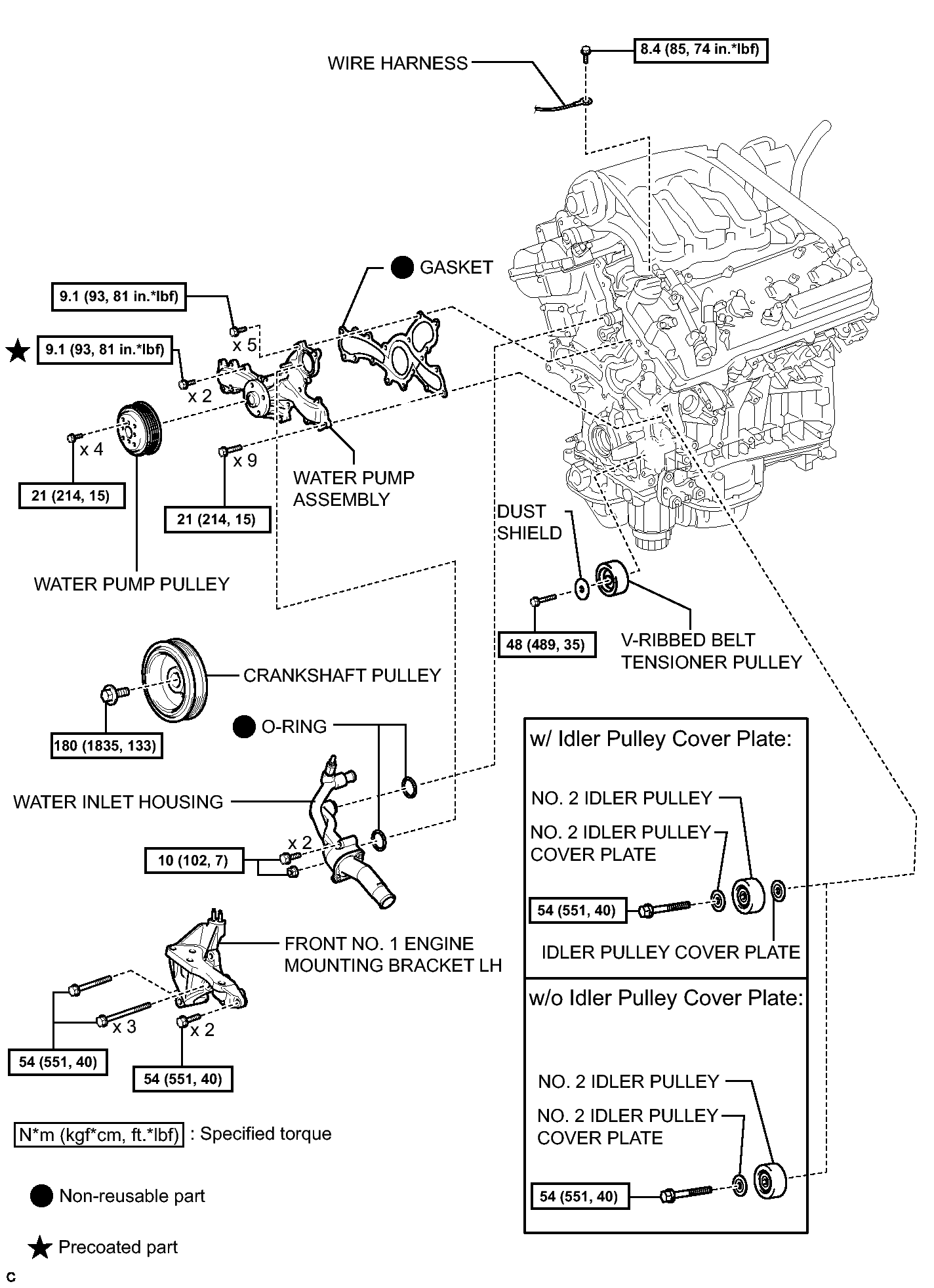

Fig 3: Identifying Water Pump Replacement Components With Torque Specifications (3 of 3)
GTY234090Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
