Oil Pump: Components

WARNING: This page is about a different variant/trim than selected.

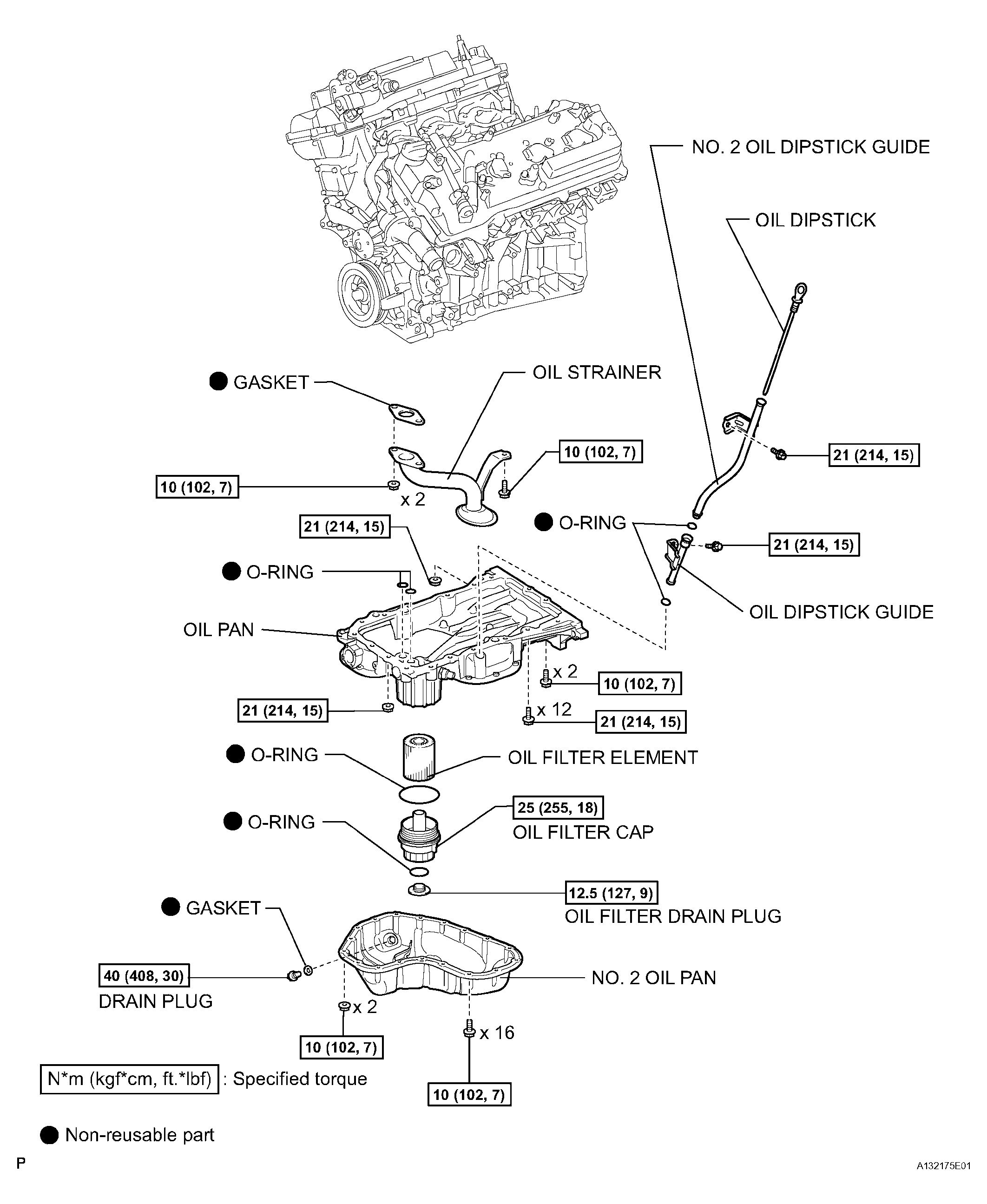

Fig 1: Oil Pump Replacement Components With Torque Specifications (1 Of 4)
G04485940Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

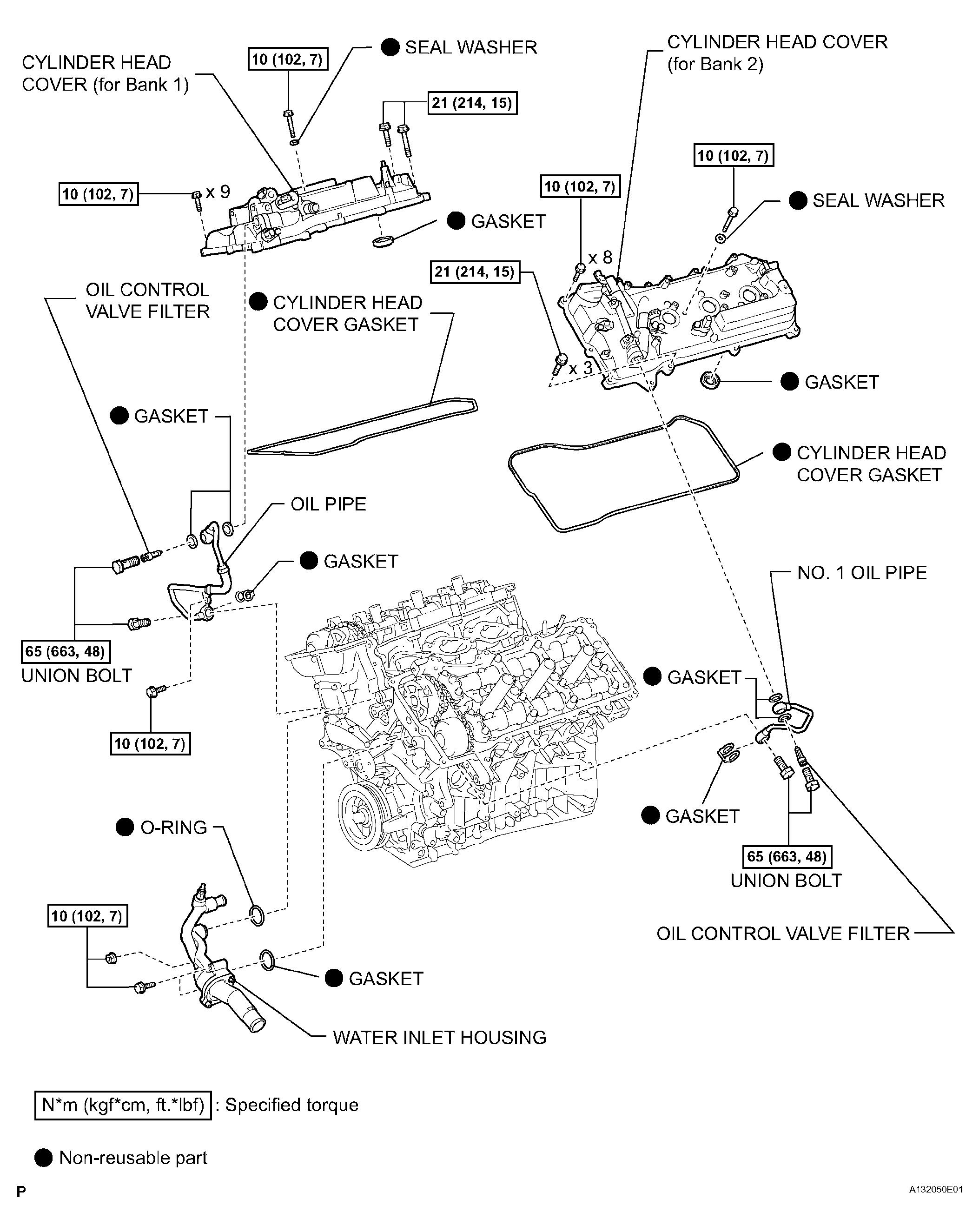

Fig 2: Oil Pump Replacement Components With Torque Specifications (2 Of 4)
G04485941Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Oil Pump Replacement Components With Torque Specifications (3 Of 4)
G04485942Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

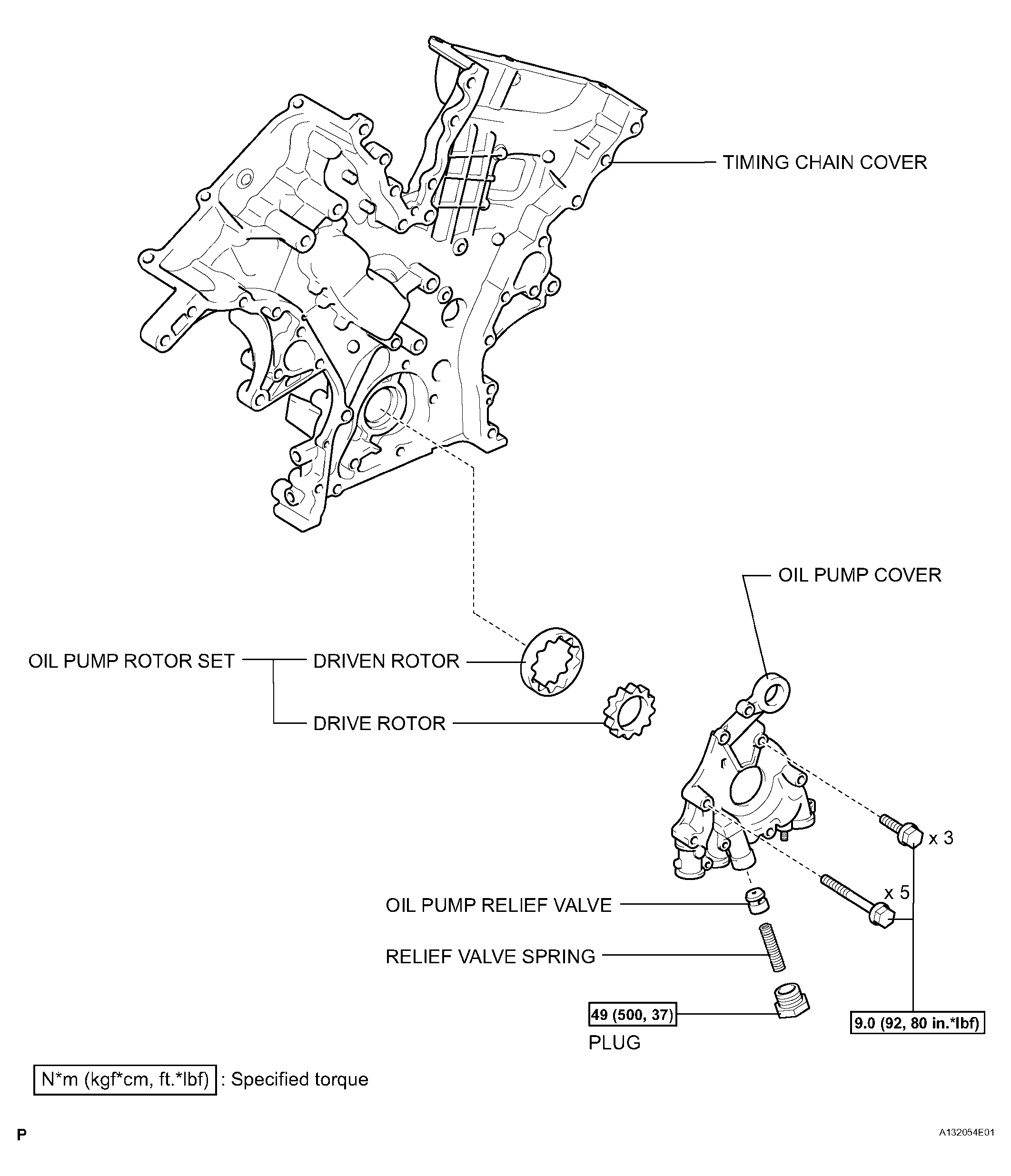

Fig 4: Oil Pump Replacement Components With Torque Specifications (4 Of 4)
G04485943Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
