Fuel Pressure Pulsation Damper: Components

WARNING: This page is about a different variant/trim than selected.

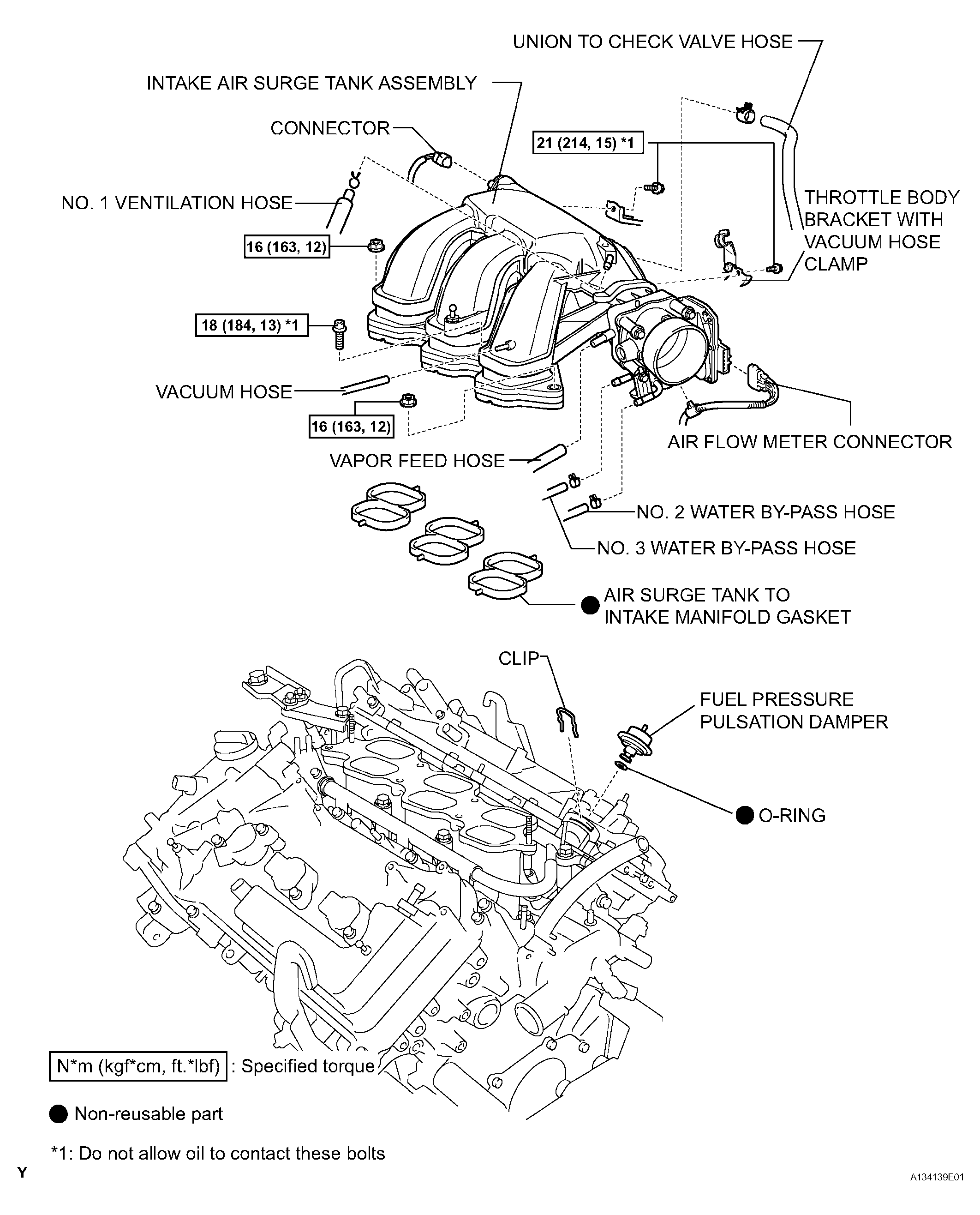

Fig 1: Fuel Pressure Pulsation Damper Replacement Components With Torque Specifications
G04485555Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
