VSC Off Switch: Removal: Removal

WARNING: This page is about a different car, the 2010 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE SWITCH BASE
1. Remove the switch base. Refer to REMOVAL .
REMOVE VSC OFF SWITCH
1. Disconnect the VSC OFF switch connector.
2. Using a screwdriver, detach the 2 claws and remove the VSC OFF switch from the switch base.

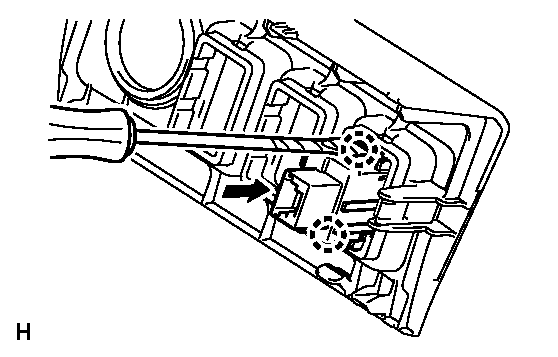

  Fig 1: Locating VSC OFF Switch Connector And Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  Tape the screwdriver tip before use.
