Ignition Coil: Installation

  1. INSTALL IGNITION COIL ASSEMBLY
    1. Install the 4 ignition coils with the 4 bolts.

      Torque: 9.0 Nm (92 kgf.cm, 80 in.lbf)

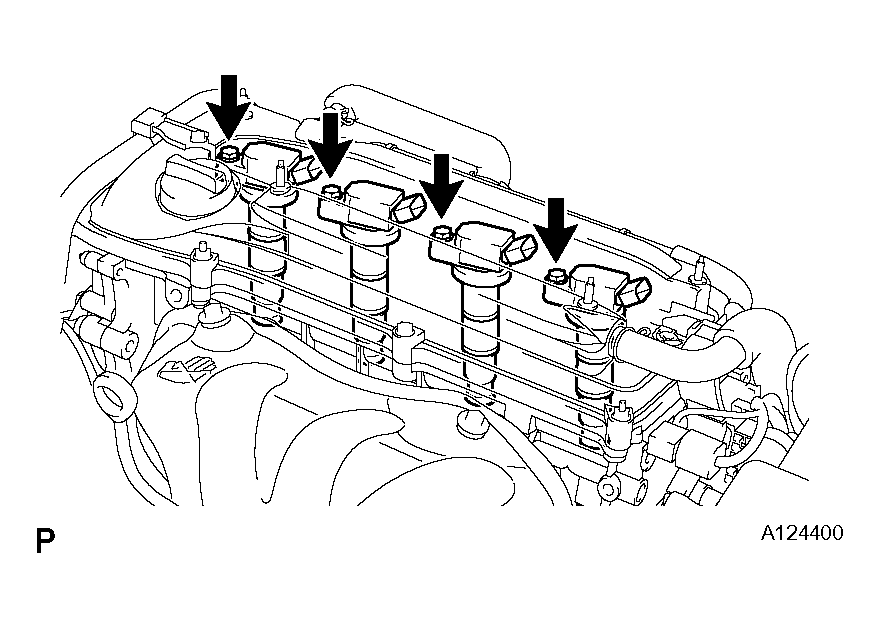

      Fig 1: Installing Ignition Coils
      G04485994Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the 4 ignition coil connectors.
  2. INSTALL NO. 1 ENGINE COVER (Under  INSTALLATION  )
  3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
