Home >> Toyota >> 2007 >> RAV4 Base, 2.4 D, FWD >> Repair and Diagnosis >> Engine Performance >> Ignition System >> Engine Ignition System (2AZ-FE) >> Ignition Coil >> Components

Ignition Coil: Components

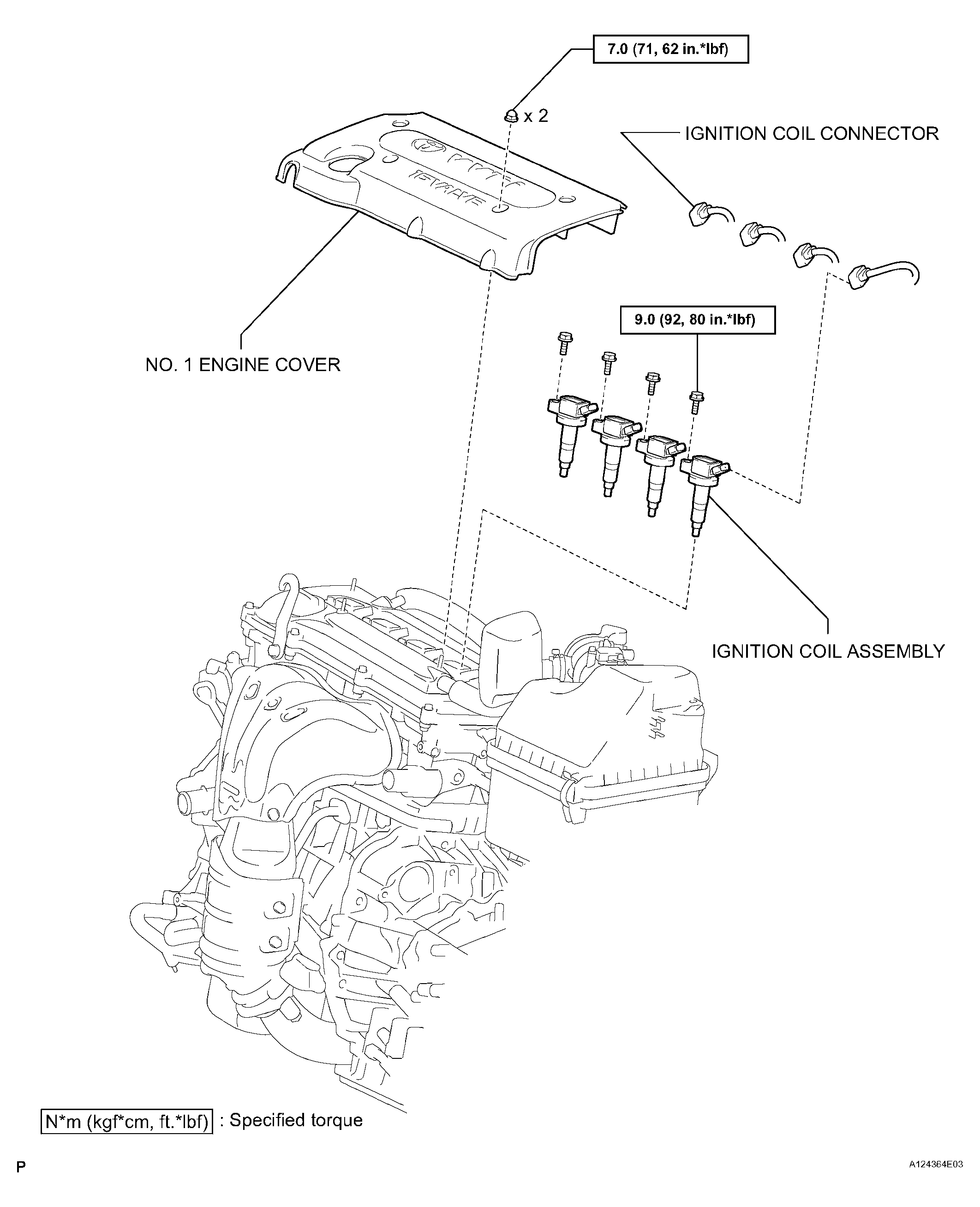

Fig 1: Ignition Coil Replacement Components With Torque Specifications
G04485992Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
