Fuel Pressure Regulator: Components

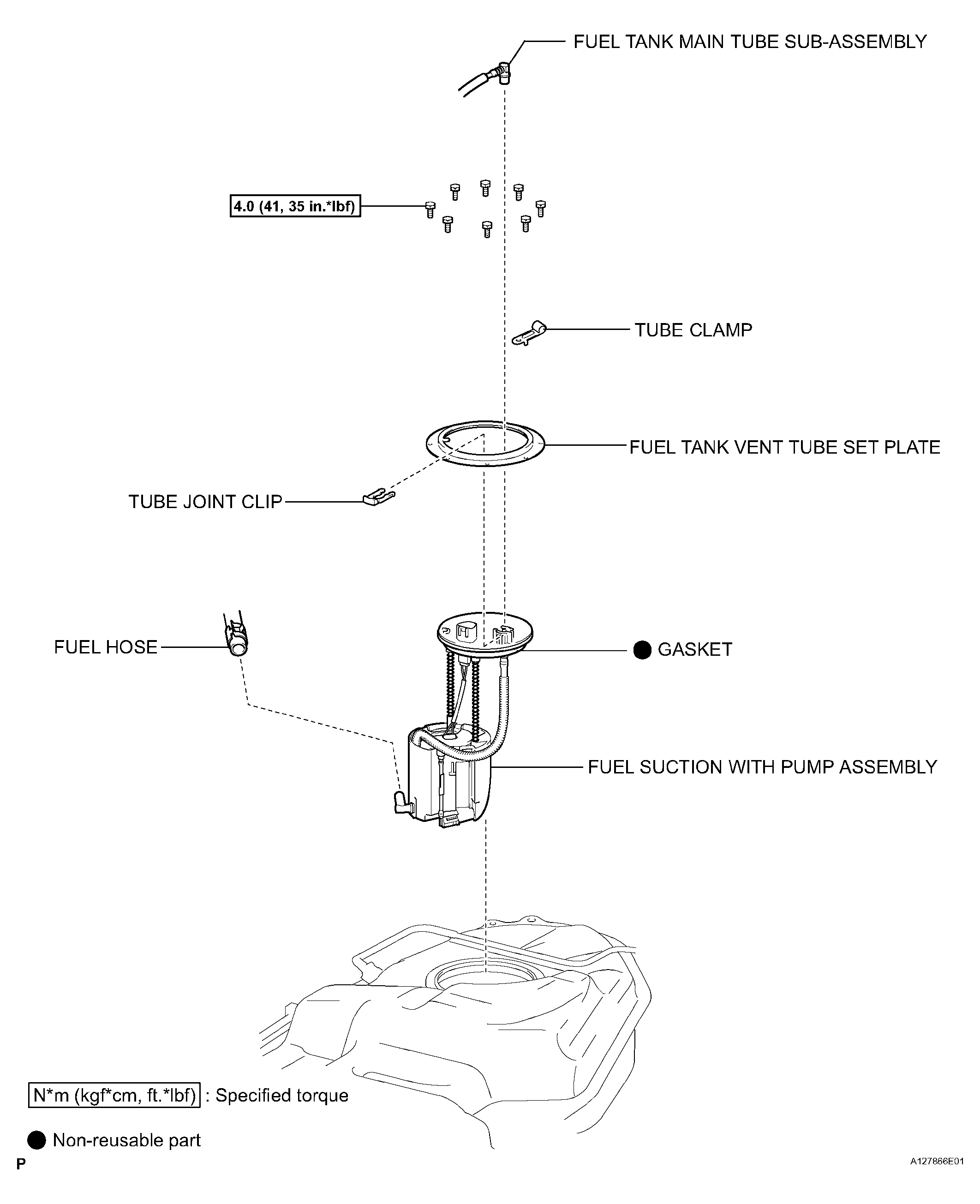

Fig 1: Fuel Pressure Regulator Replacement Components With Torque Specifications (1 Of 2)
G04485429Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

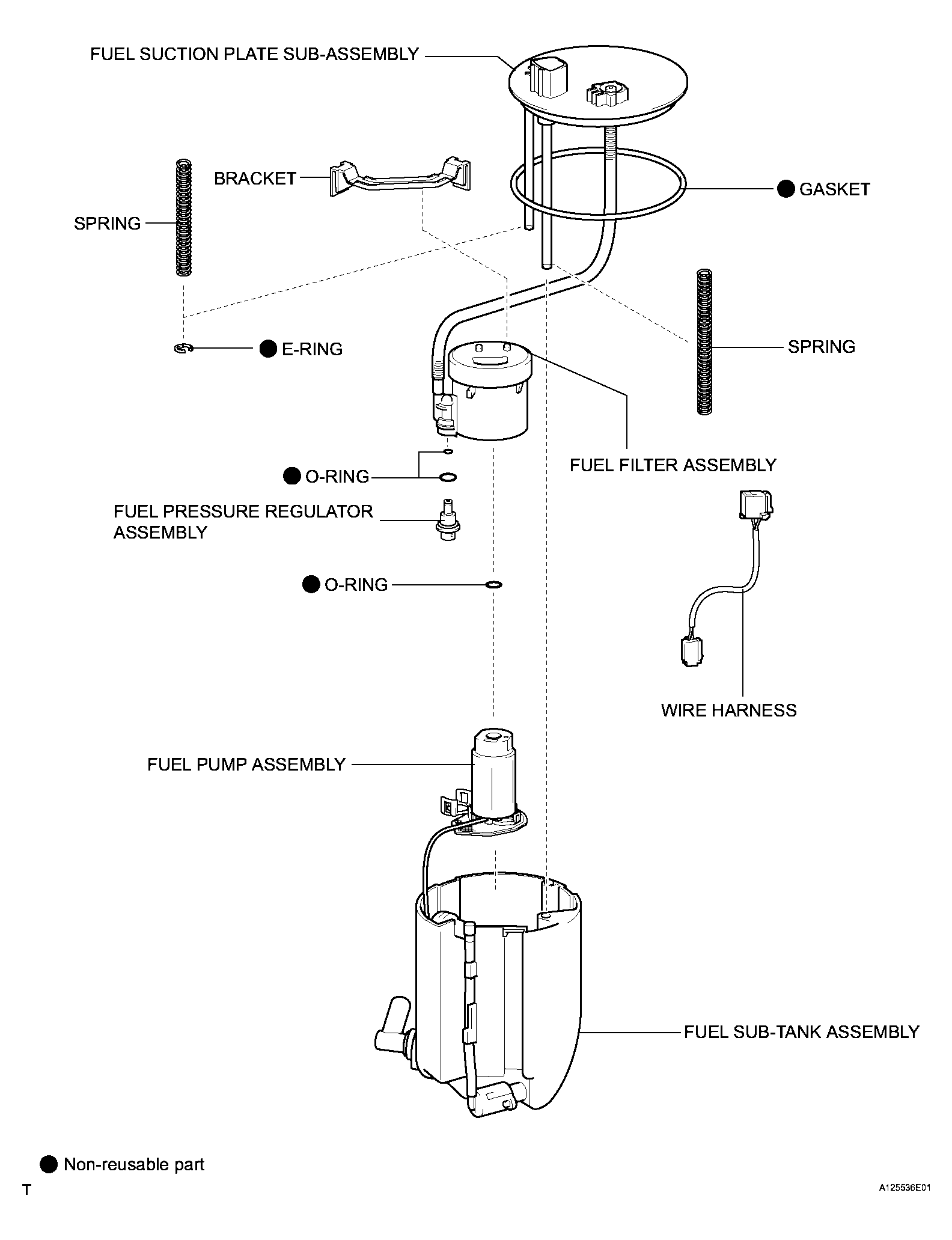

Fig 2: Fuel Pressure Regulator Replacement Components With Torque Specifications (2 Of 2)
G04485430Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
