Ignition Switch: Installation

  1. INSTALL IGNITION SWITCH ASSEMBLY
    1. Install the ignition switch with the 2 screws.

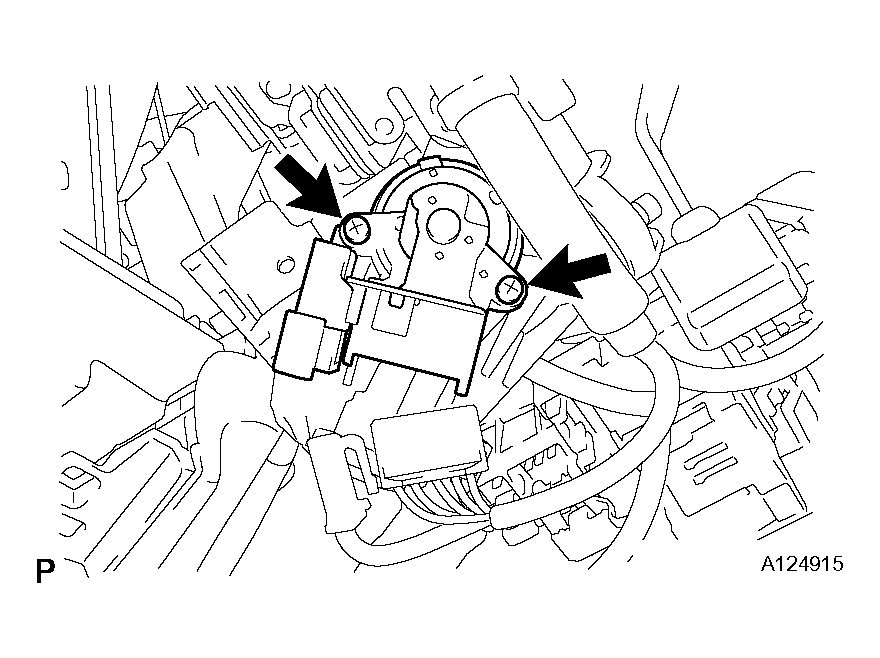

      Fig 1: Installing Ignition Switch
      G04486062Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the ignition key cylinder light connector.
    3. Install the ignition switch connector.

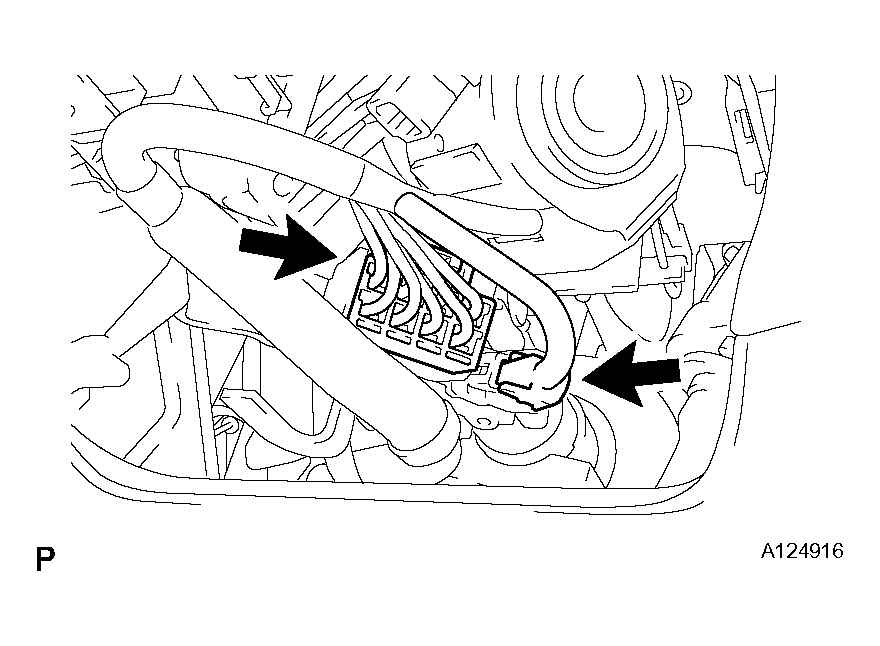

      Fig 2: Installing Ignition Switch Connectors
      G04486063Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL STEERING COLUMN COVER LOWER
    1. Attach the 4 claws to install the steering column lower cover.

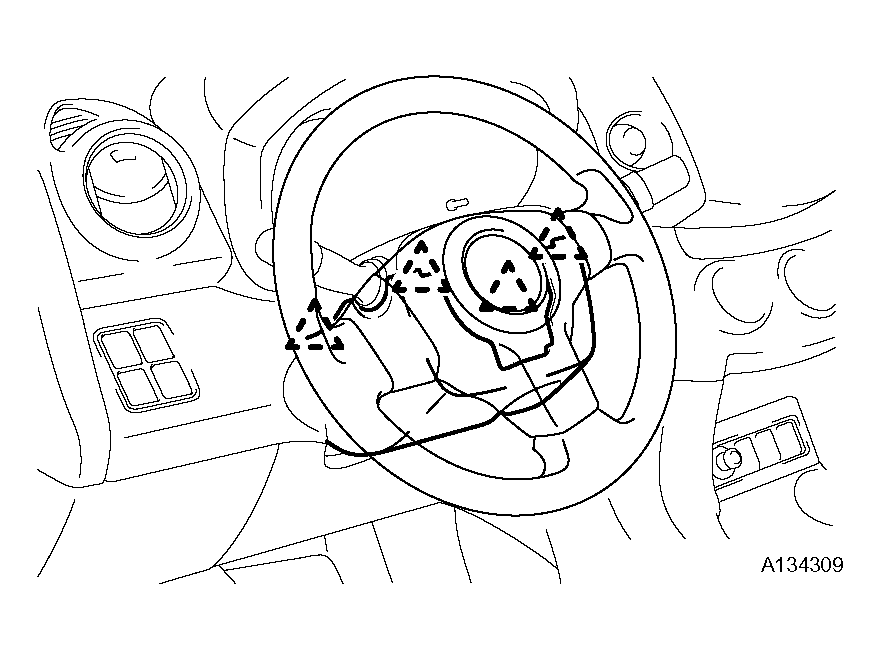

      Fig 3: Installing Steering Column Cover Lower
      G04486064Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
