Ignition Switch: Inspection

  1. INSPECT IGNITION SWITCH ASSEMBLY
    1. Measure the resistance of the switch.

      Standard resistance

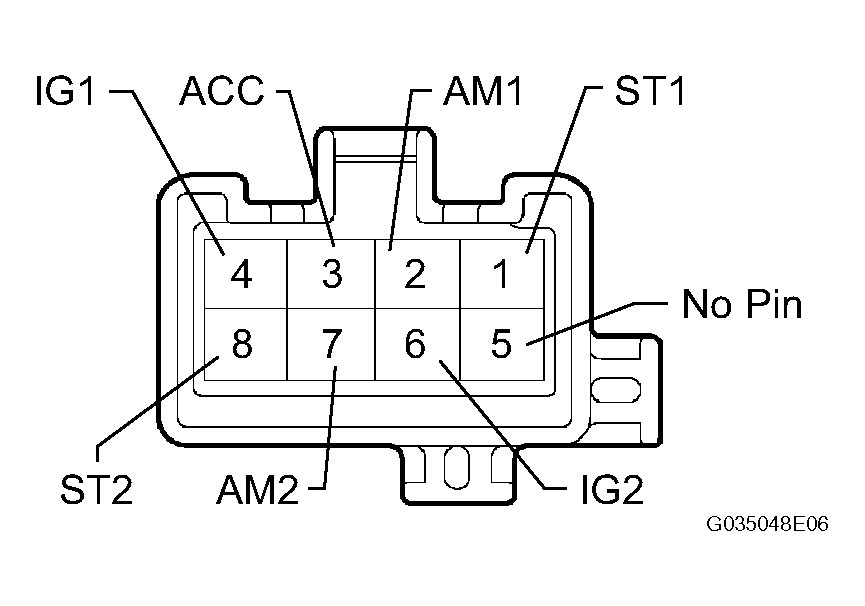

      Fig 1: Identifying Ignition Switch Connector Terminals
      G04486061Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      RESISTANCE REFERENCE

      Tester Connection Switch Condition Specified Condition
      - LOCK 10 kΩ or higher
      2 (AM1) - 3 (ACC) ACC Below 1 Ω
      2 (AM1) - 3 (ACC)
      2 (AM1) - 4 (IG1)
      6 (IG2) - 7 (AM2)      		 ON Below 1 Ω
      1 (ST1) - 2 (AM1)
      1 (ST1) - 4 (IG1)
      6 (IG2) - 7 (AM2)
      6 (IG2) - 8 (ST2)      		 START Below 1 Ω

      If the result is not as specified, replace the switch assembly.
