Fuel Tank: Reassembly

  1. INSTALL FUEL SENDER GAUGE ASSEMBLY
    1. Install the sender gauge with the 5 bolts.

      Torque: 1.5 N.m (15 kgf.cm, 13 in.lbf)

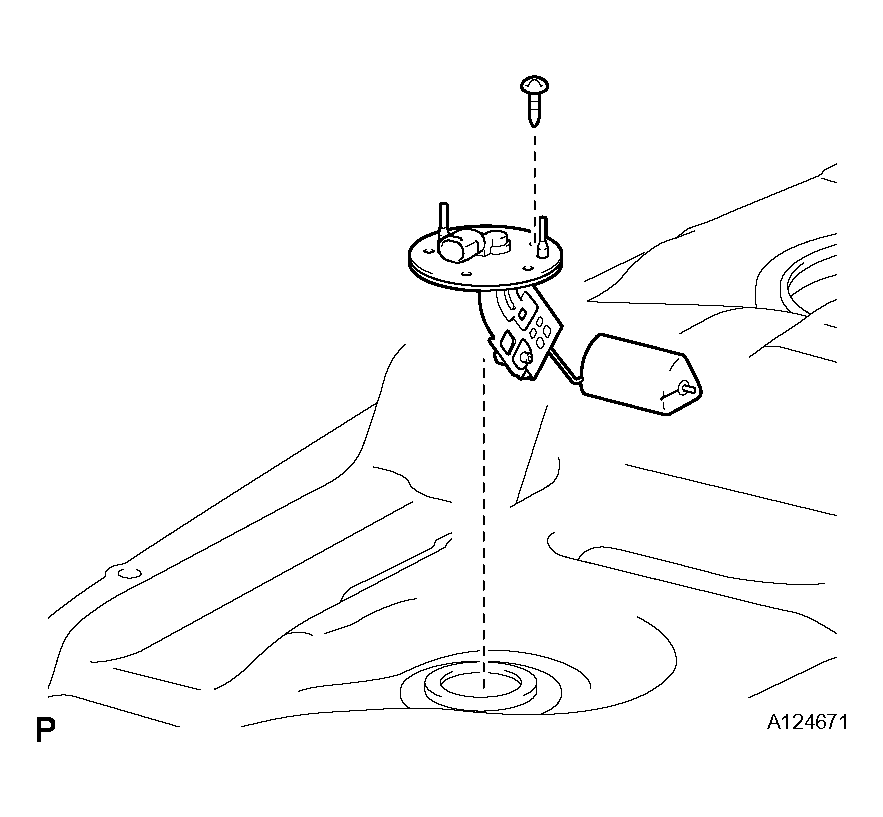

      Fig 1: Installing Sender Gauge With Bolts
      G04485506Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL NO. 1 FUEL TANK CUSHION
    1. Install 7 new fuel tank cushions onto the fuel tank as shown in the illustration.

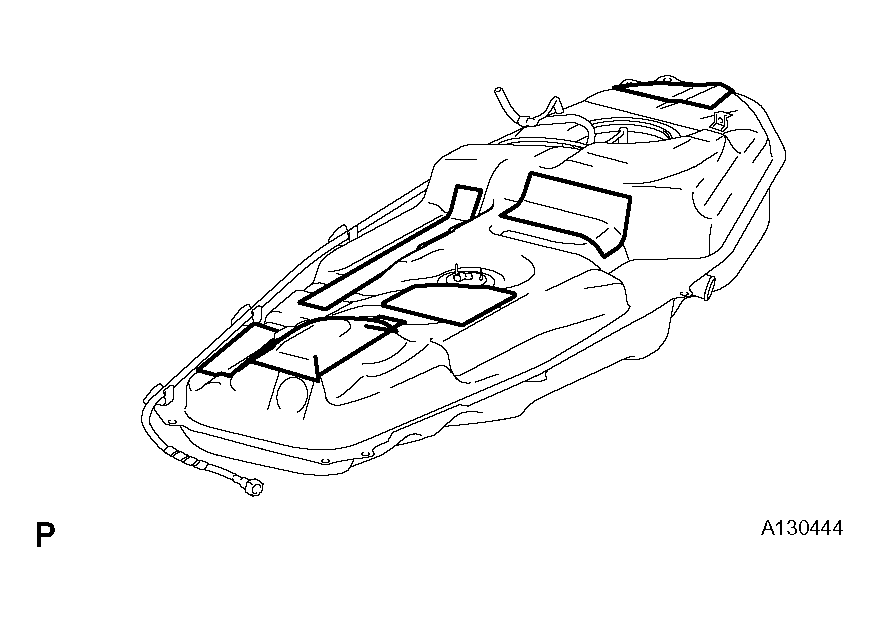

      Fig 2: Installing Fuel Tank Cushions Onto Fuel Tank
      G04485507Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL NO. 1 FUEL TUBE CLAMP
    1. Install the 4 tube clamps to the fuel tank.
  4. INSTALL FUEL TANK MAIN TUBE SUB-ASSEMBLY
    1. Install the tube with the 4 clips.

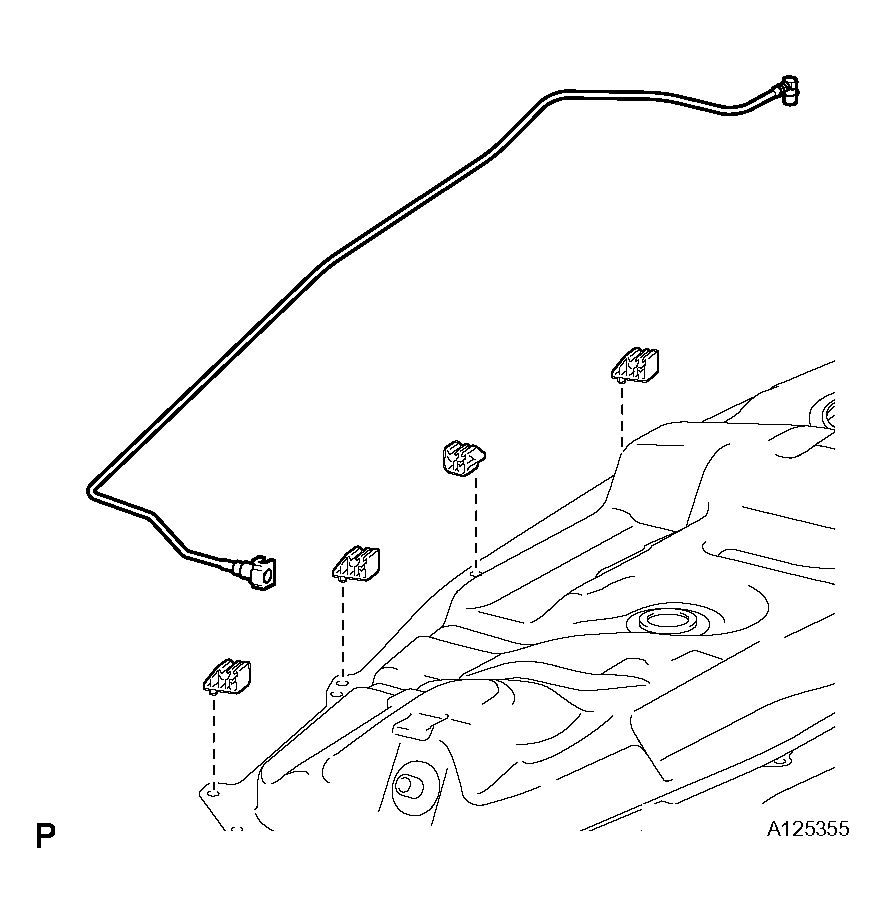

      Fig 3: Installing Tube With Clips
      G04485508Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL FUEL SUCTION WITH PUMP ASSEMBLY (See appropriate step(s) under  INSTALLATION  )
  6. INSTALL FUEL TANK VENT TUBE SET PLATE (See appropriate step(s) under  INSTALLATION  )
  7. INSTALL FUEL TANK MAIN TUBE SUB-ASSEMBLY (See appropriate step(s) under  INSTALLATION  )
