Combination Meter: Installation

INSTALL COMBINATION METER ASSEMBLY
1. Connect the connector.
2. Attach the 2 clips to install the combination meter.
3. Install the 2 screws.

  Fig 1: Installing Combination Meter Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY
1. Attach the 4 clips and 6 claws to install the instrument cluster finish panel.
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
CHECK SRS WARNING LIGHT
1. Check the SRS warning light (see DIAGNOSIS SYSTEM ).

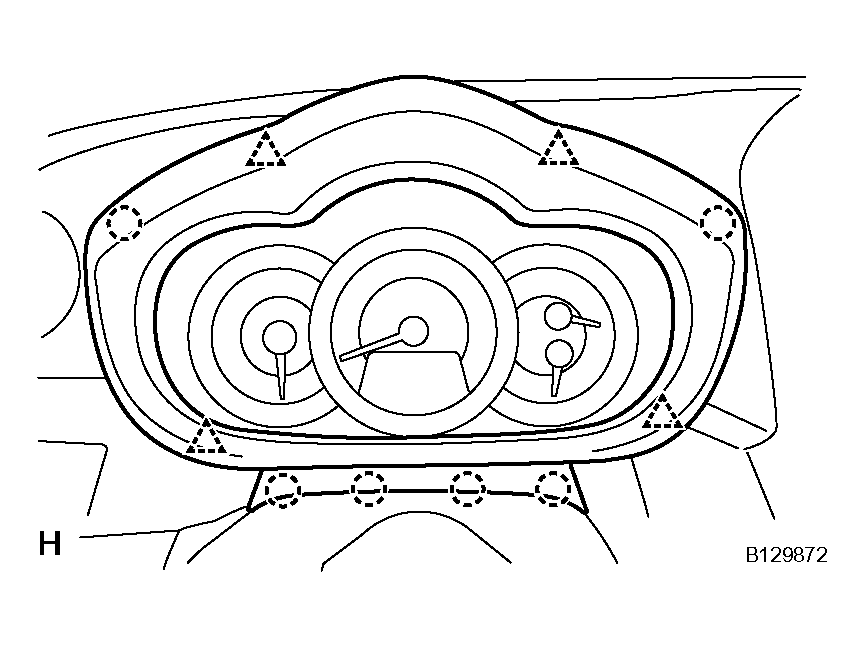

  Fig 2: Identifying Instrument Cluster Finish Panel Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
