Upper Instrument Panel: Components

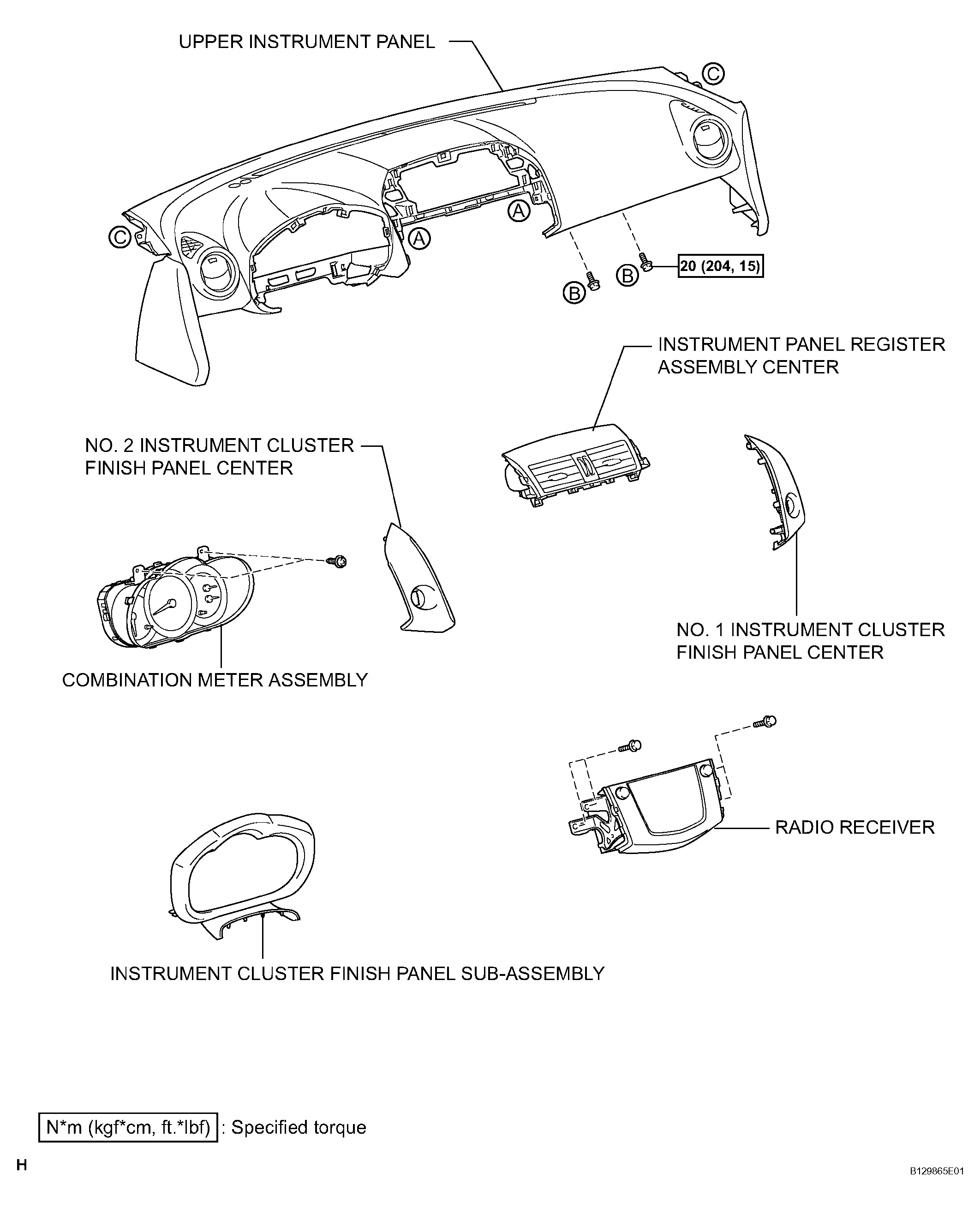

Fig 1: Instrument Panel Replacement Components With Torque Specifications (1 Of 2)
G04491512Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

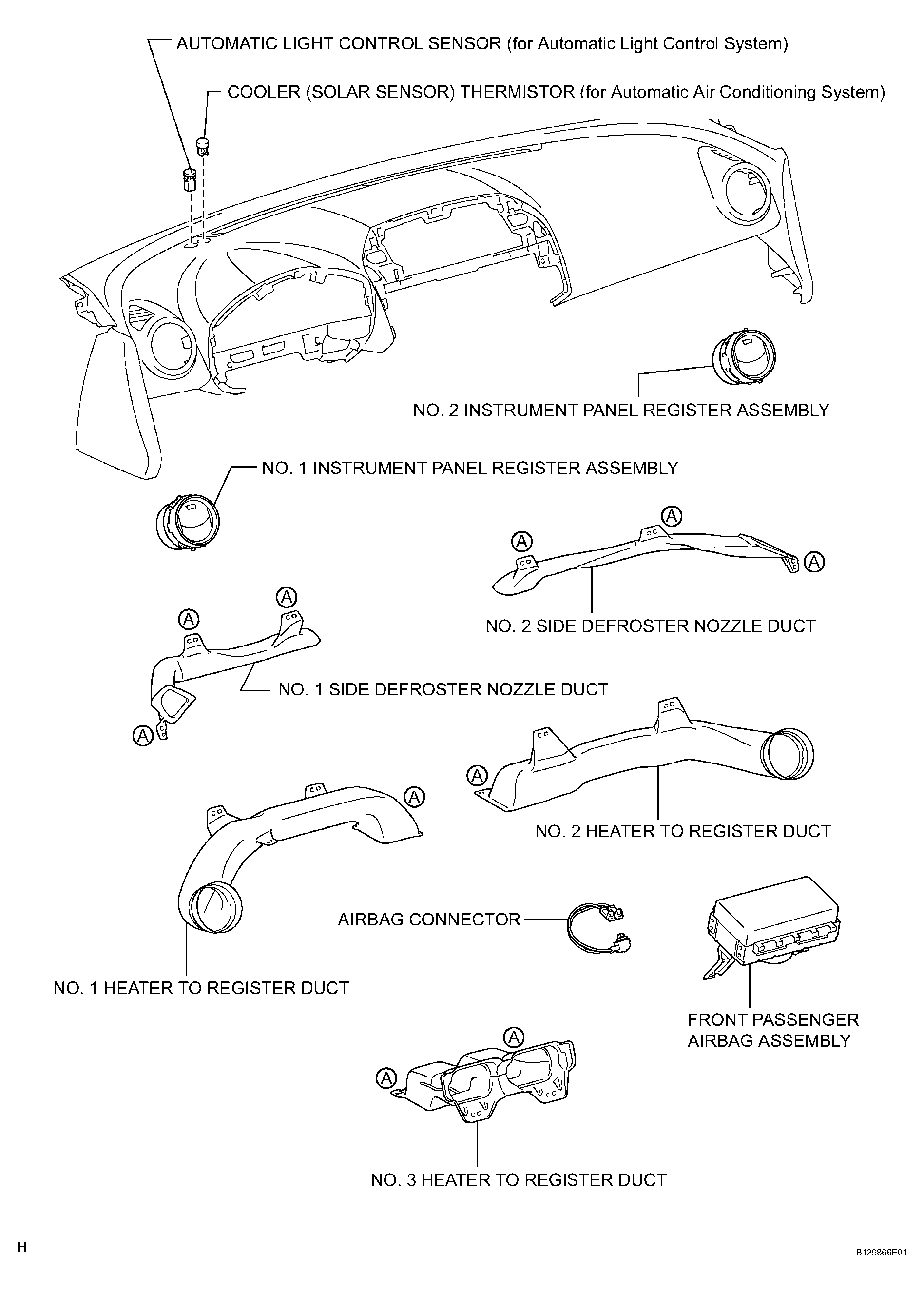

Fig 2: Identifying Instrument Panel Components (2 Of 2)
G04491513Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
