Lower Instrument Panel: Components

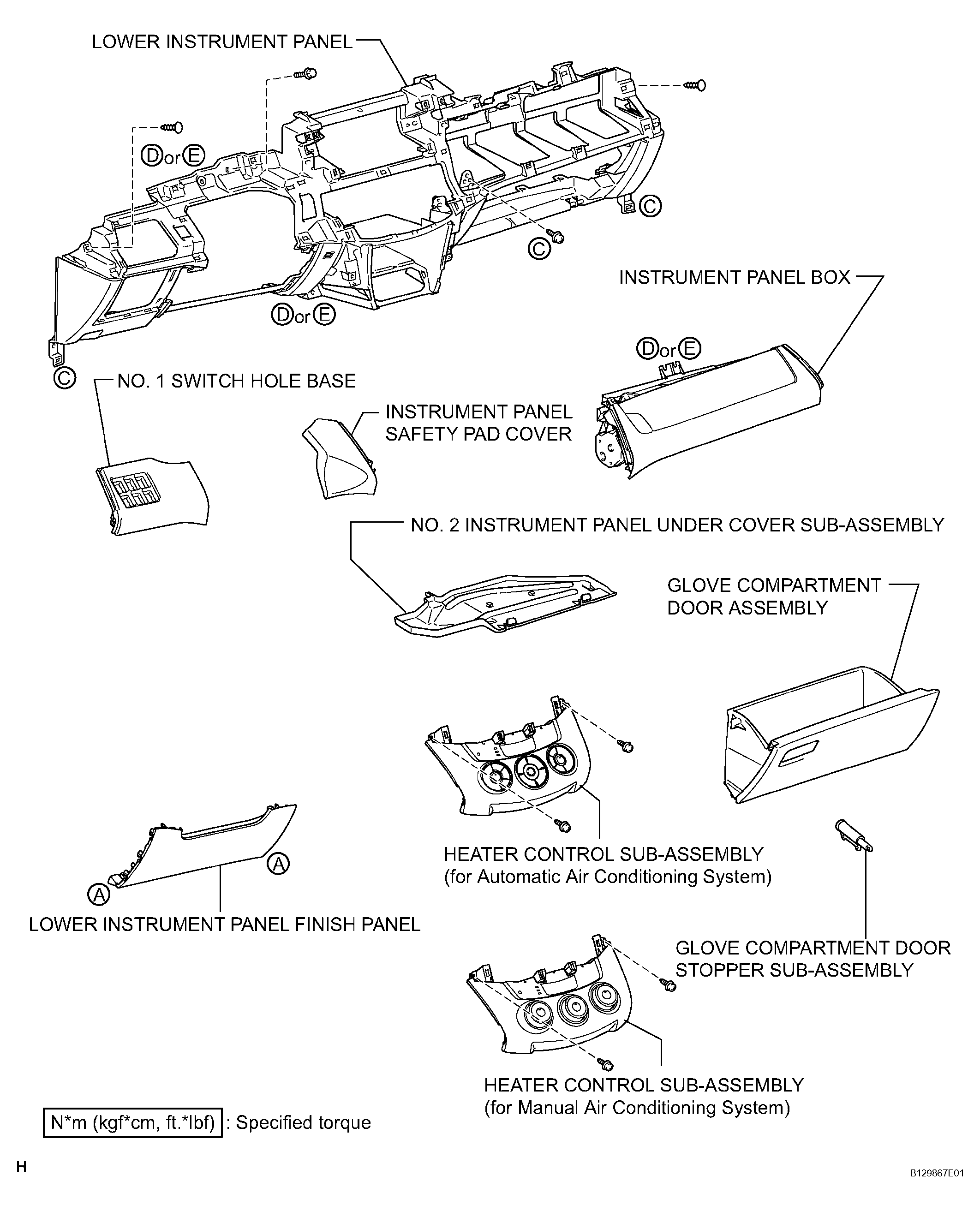

Fig 1: Identifying Instrument Panel Components (1 Of 4)
G04491541Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

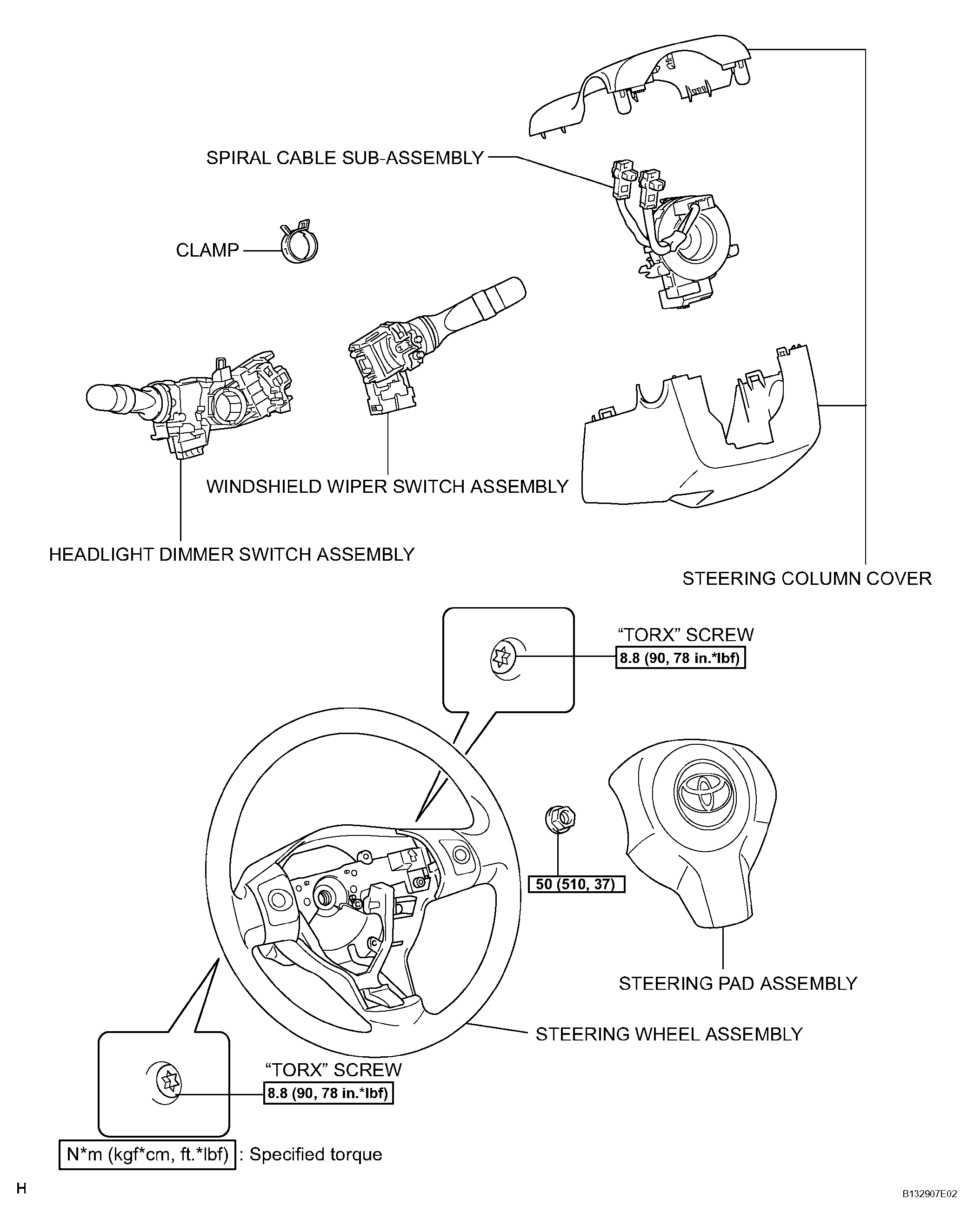

Fig 2: Instrument Panel Replacement Components With Torque Specifications (2 Of 4)
G04491542Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Identifying Instrument Panel Components (3 Of 4)
G04491543Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

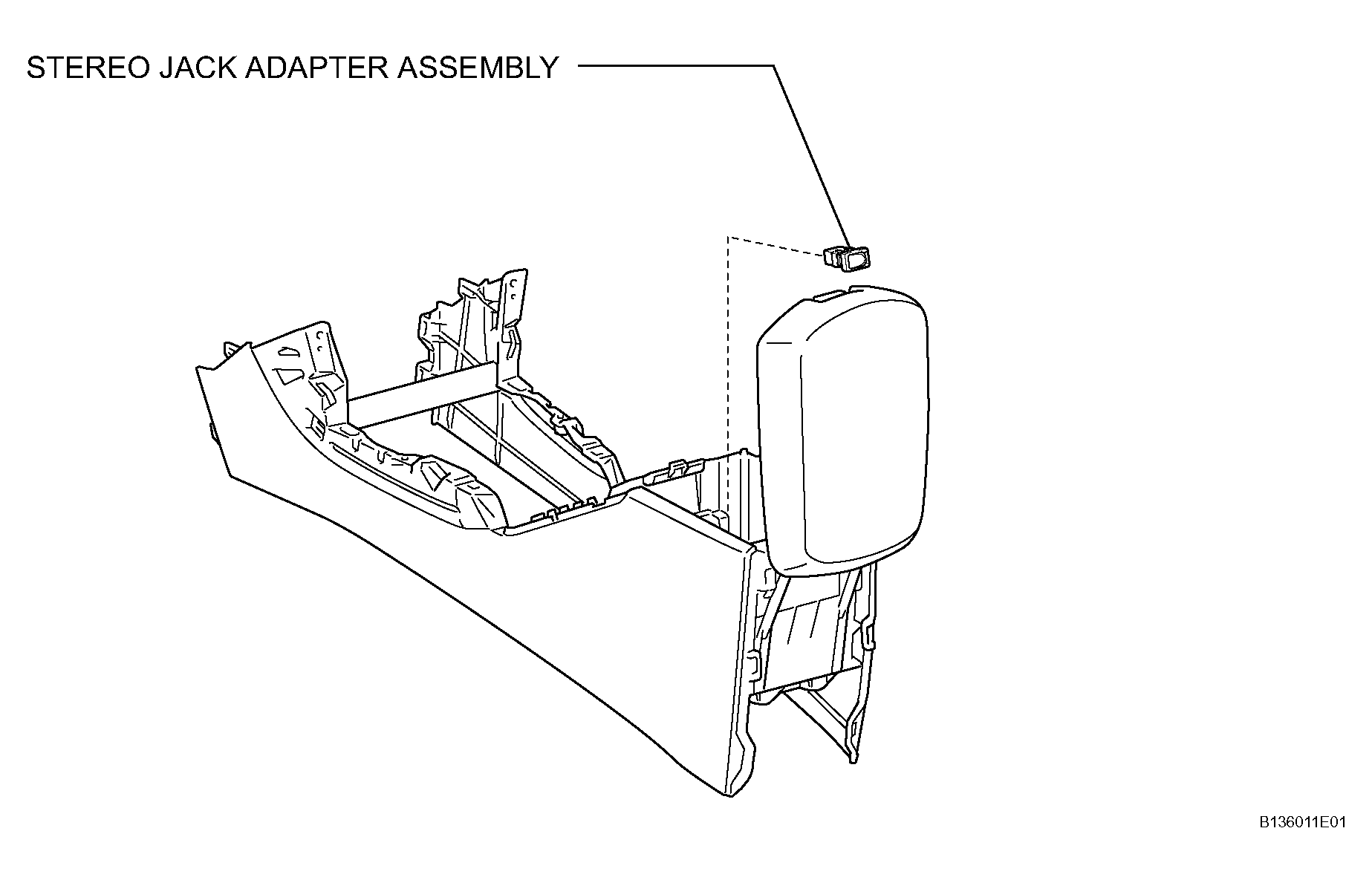

Fig 4: Identifying Instrument Panel Components (4 Of 4)
G04491544Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
