System Diagram

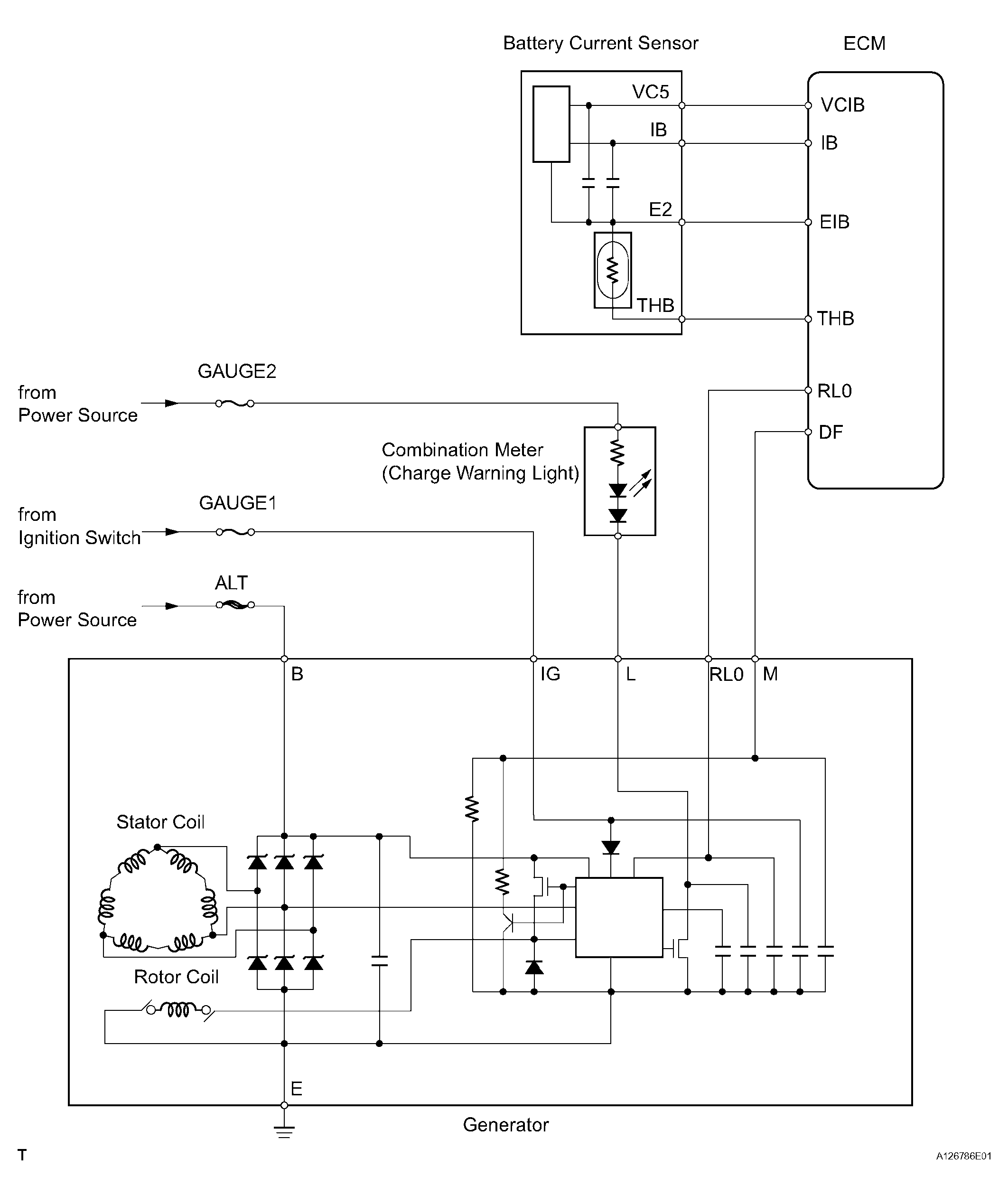

Fig 1: Charging System Diagram

G04486118

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
