Rear Power Outlet Socket: Components

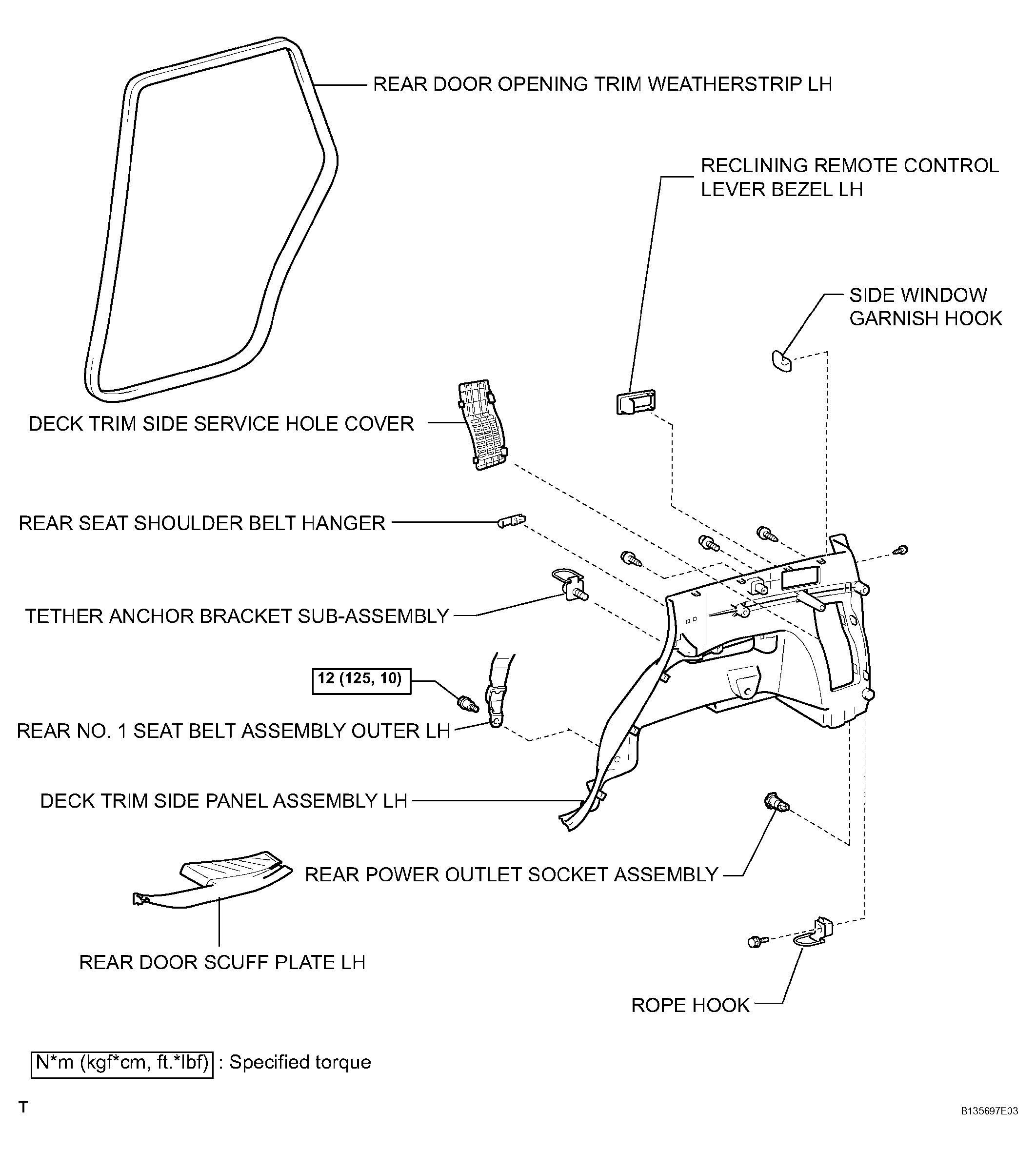

Fig 1: Identifying Rear Power Outlet Socket Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Identifying Rear Power Outlet Socket Components (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
