Rear Axle Hub And Bearing: Components

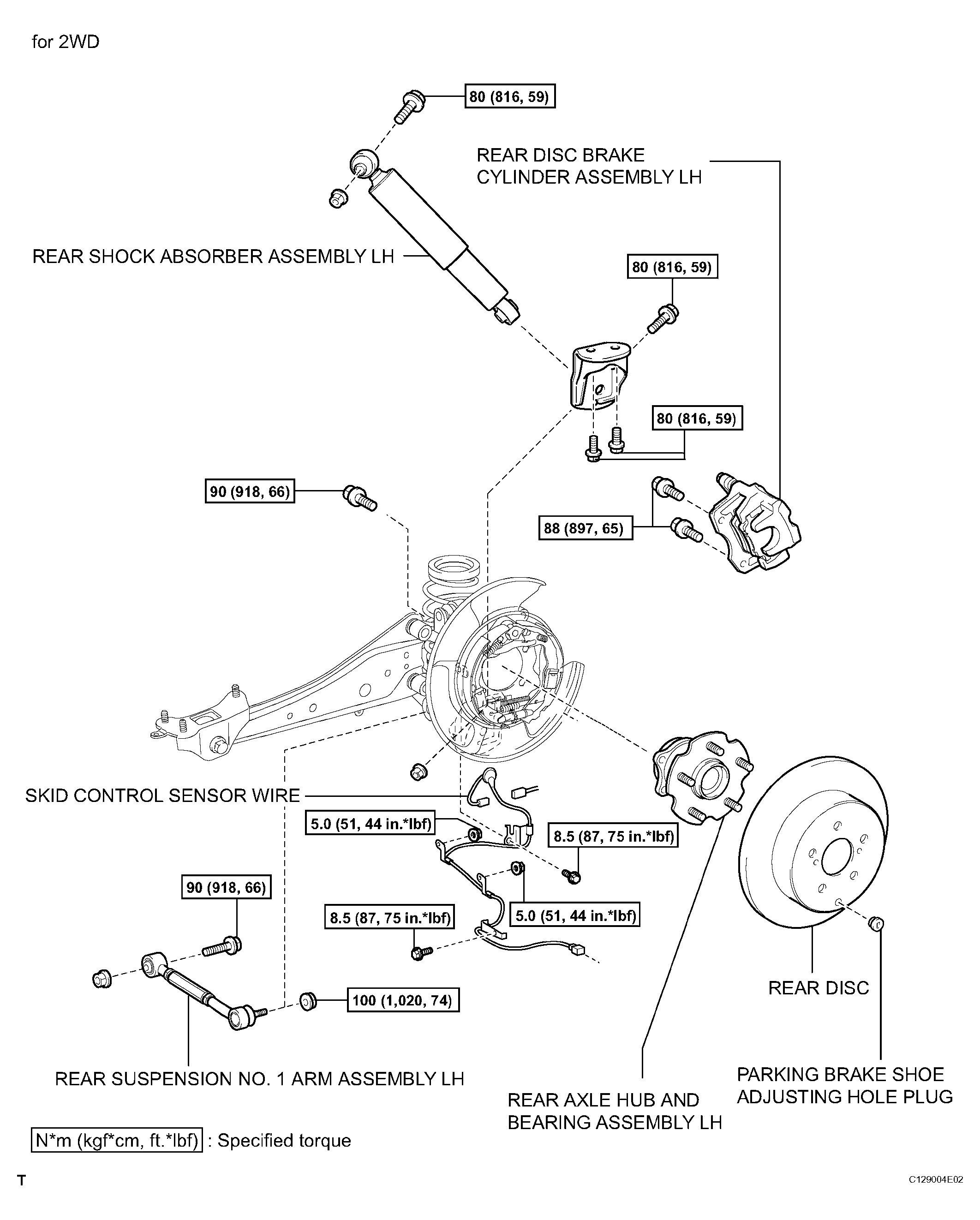

Fig 1: Rear Axle Hub And Bearing Replacement Components With Torque Specifications (1 Of 2)
G04489155Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

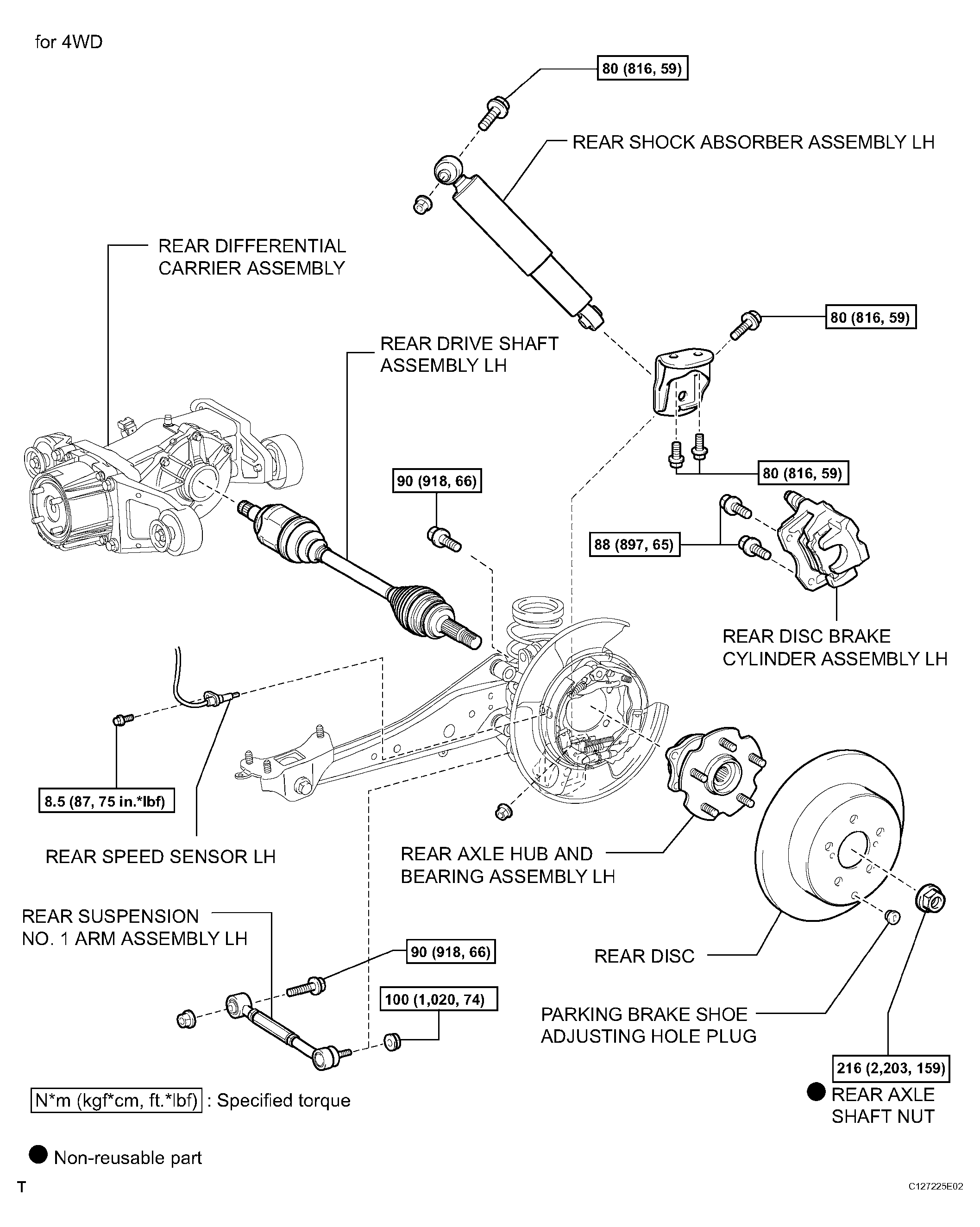

Fig 2: Rear Axle Hub And Bearing Replacement Components With Torque Specifications (2 Of 2)
G04489156Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
