Steering Angle Sensor: Removal

  1. PRECAUTION
    CAUTION: Be sure to read the "PRECAUTION" thoroughly before servicing (see AIRBAG SYSTEM ).
  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
  3. PLACE FRONT WHEELS FACING STRAIGHT AHEAD
  4. REMOVE STEERING PAD ASSEMBLY (See  REMOVAL  )
  5. REMOVE STEERING WHEEL ASSEMBLY (See  REMOVAL  )
  6. REMOVE STEERING COLUMN COVER (See  REMOVAL  )
  7. REMOVE SPIRAL CABLE SUB-ASSEMBLY (See  REMOVAL  )
  8. REMOVE STEERING ANGLE SENSOR
    1. Detach the 6 claws and remove the sensor from the spiral cable.

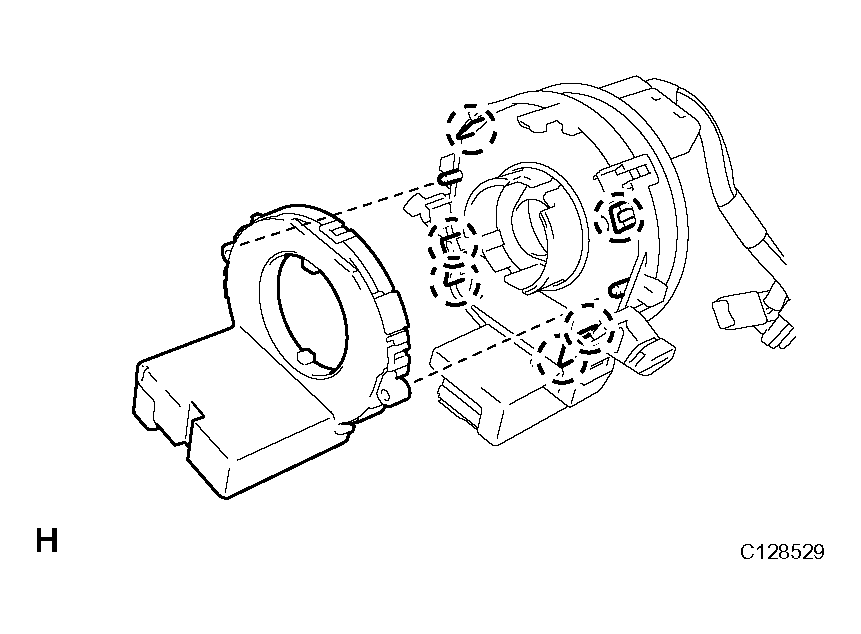

      Fig 1: Removing Sensor From Spiral Cable
      G04489517Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
