Downhill Assist Control Switch: Inspection

CHECK DOWNHILL ASSIST CONTROL SWITCH

Measure the resistance of the switch.

Standard resistance

TESTER CONNECTION SPECIFIED CONDITION

Tester Connection	Switch Condition	Specified Condition
1 - 4	Released	10 kΩ or higher
1 - 4	Pushed in	Below 25 Ω

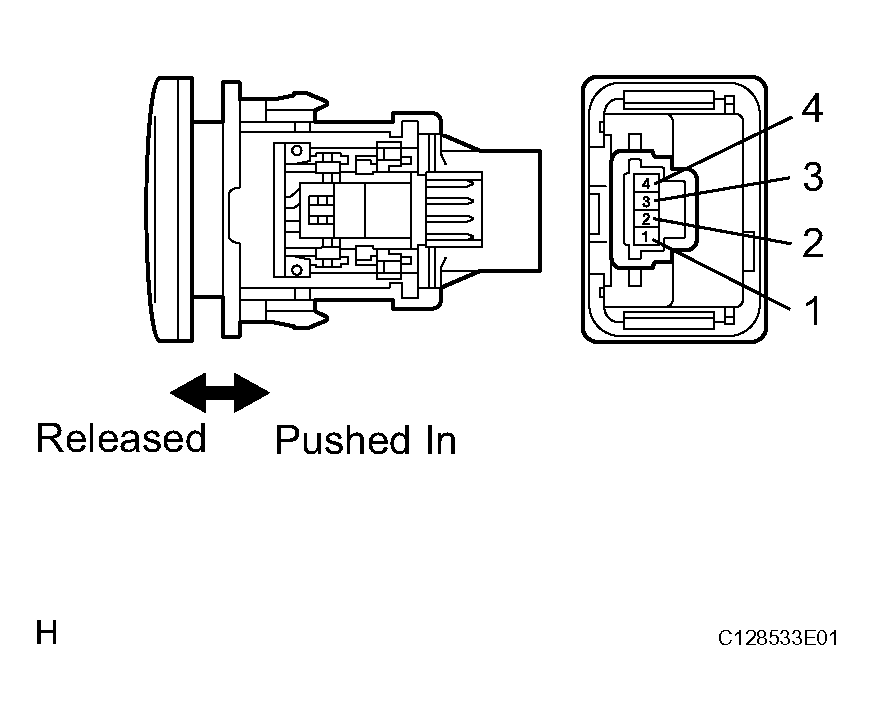

Fig 1: Checking Downhill Assist Control Switch

If the result is not as specified, replace the switch.

Check illumination operation.
1. Connect the battery's positive (+) lead to terminal 3 and negative (-) lead to terminal 2. Then check that the bulb illuminates.
  OK: Bulb illuminates.

  If the result is not as specified, replace the switch.
