System Diagram: Wiring Diagram

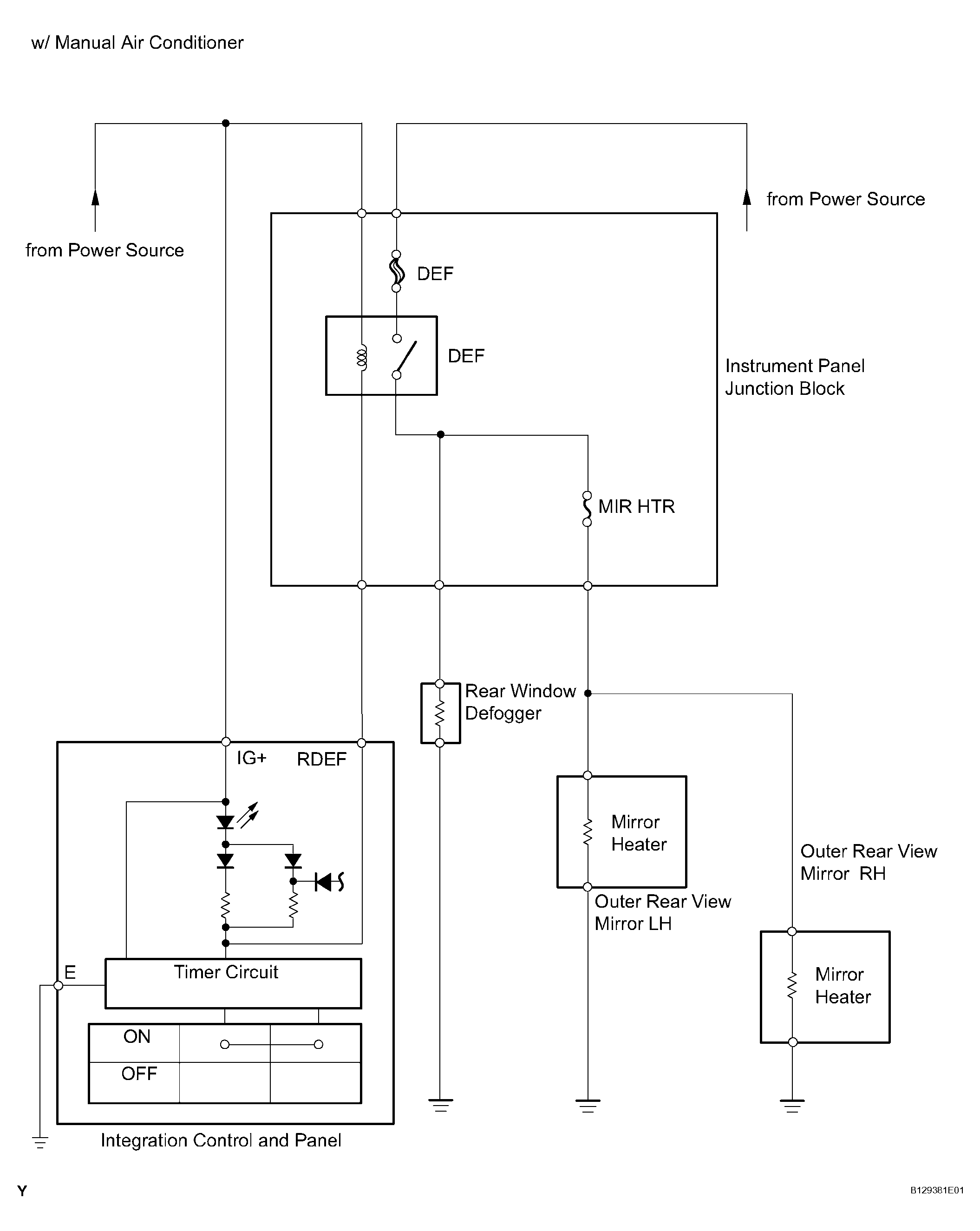

Fig 1: Window Defogger System Diagram (1 Of 2)
G04491463Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

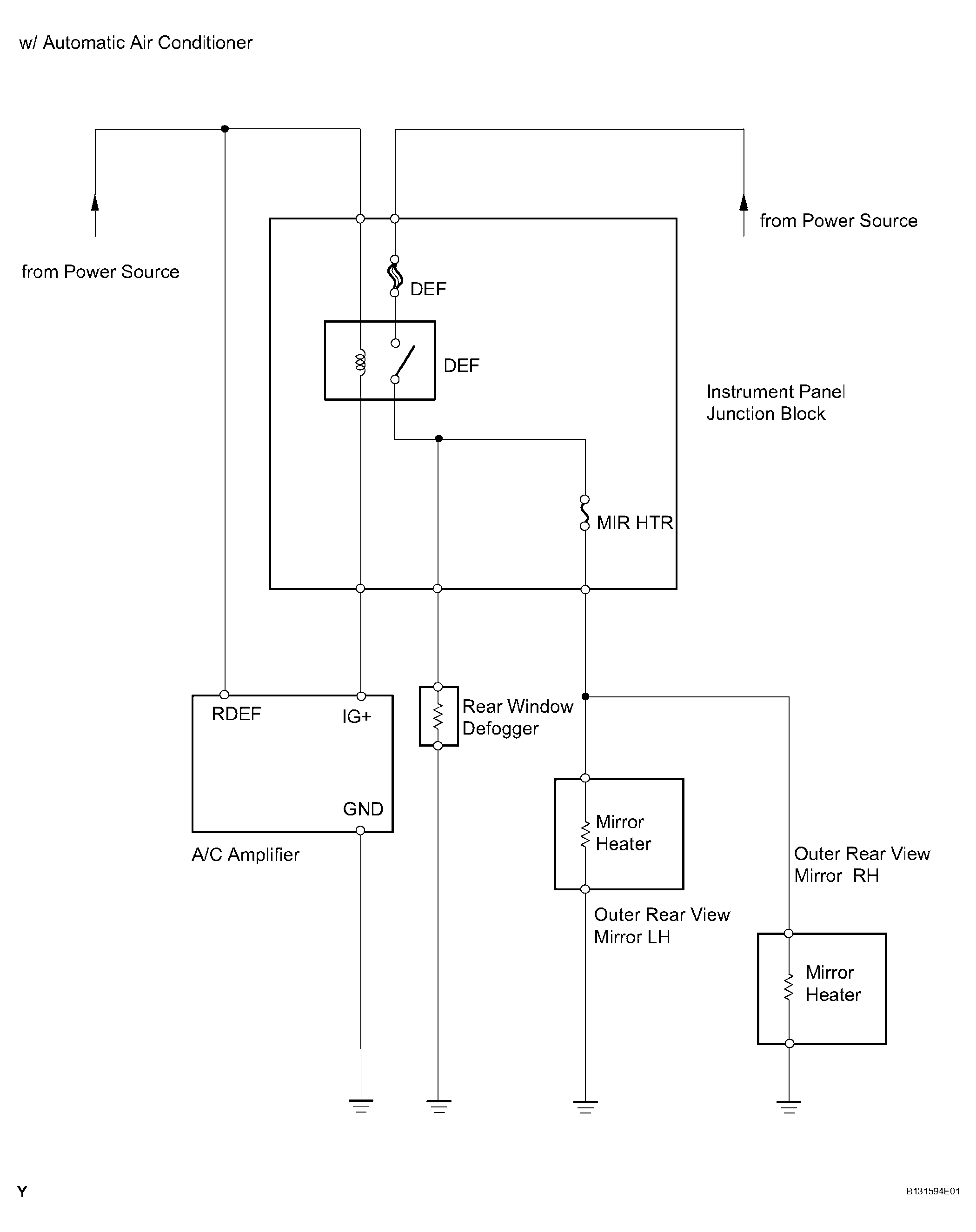

Fig 2: Window Defogger System Diagram (2 Of 2)
G04491464Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
