On-Vehicle Inspection

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
  2. INSPECT RELAY
    1. Disconnect the IG, IF and IQ junction block connectors.
    2. Measure the resistance of the Defogger relay.

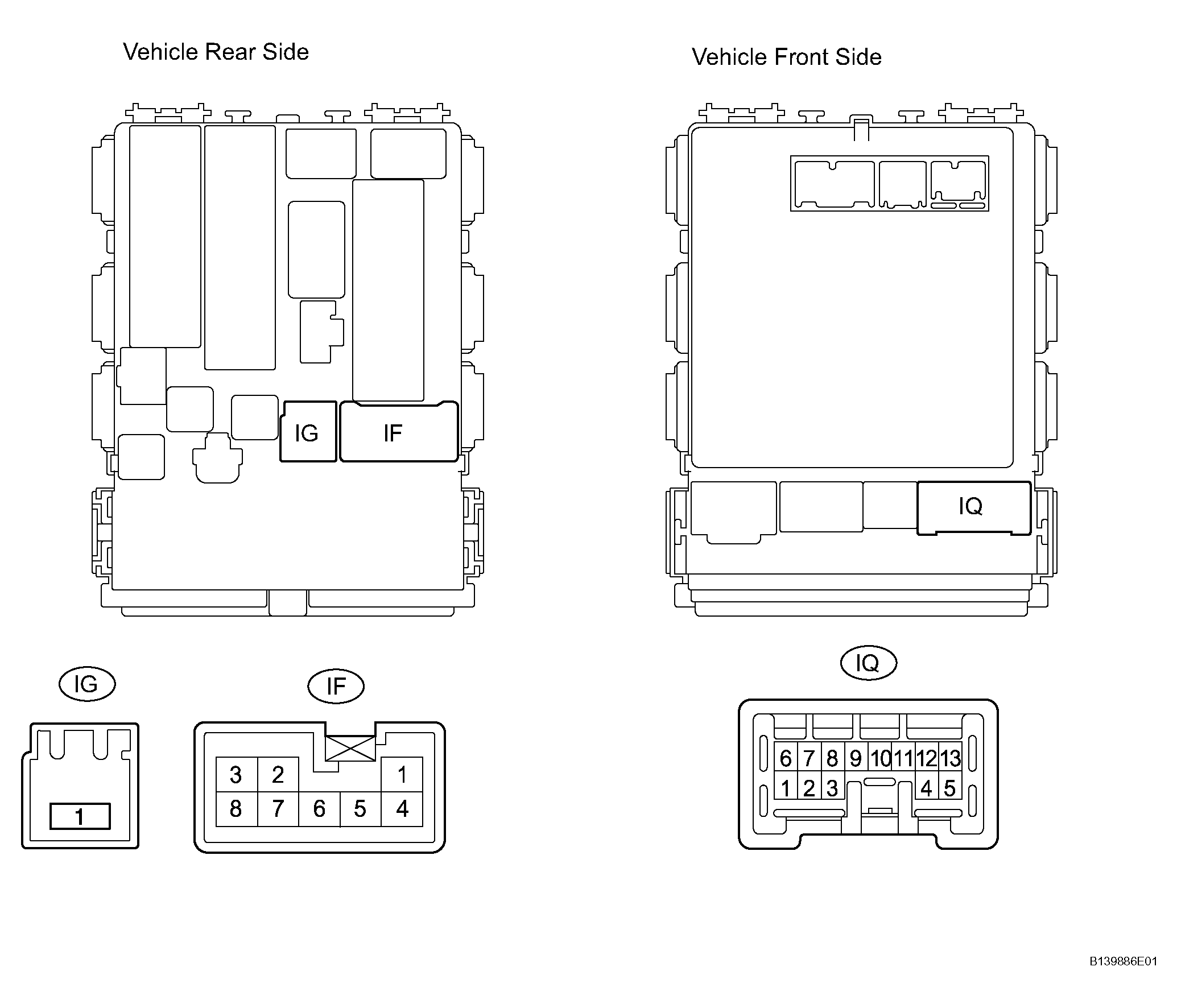

      Fig 1: Identifying IG, IF And IQ Junction Block Connectors
      G04491470Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION

      Tester Connection Specified Condition
      1G-1 - 1F-2 10 kΩ or higher
      1G-1 - 1F-2 Below 1 Ω
      (when battery voltage is applied to terminals 1Q-12 and IQ-4)

      If the result is not as specified, replace the instrument panel junction block.

  3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
