Outer Rear View Mirror: Components

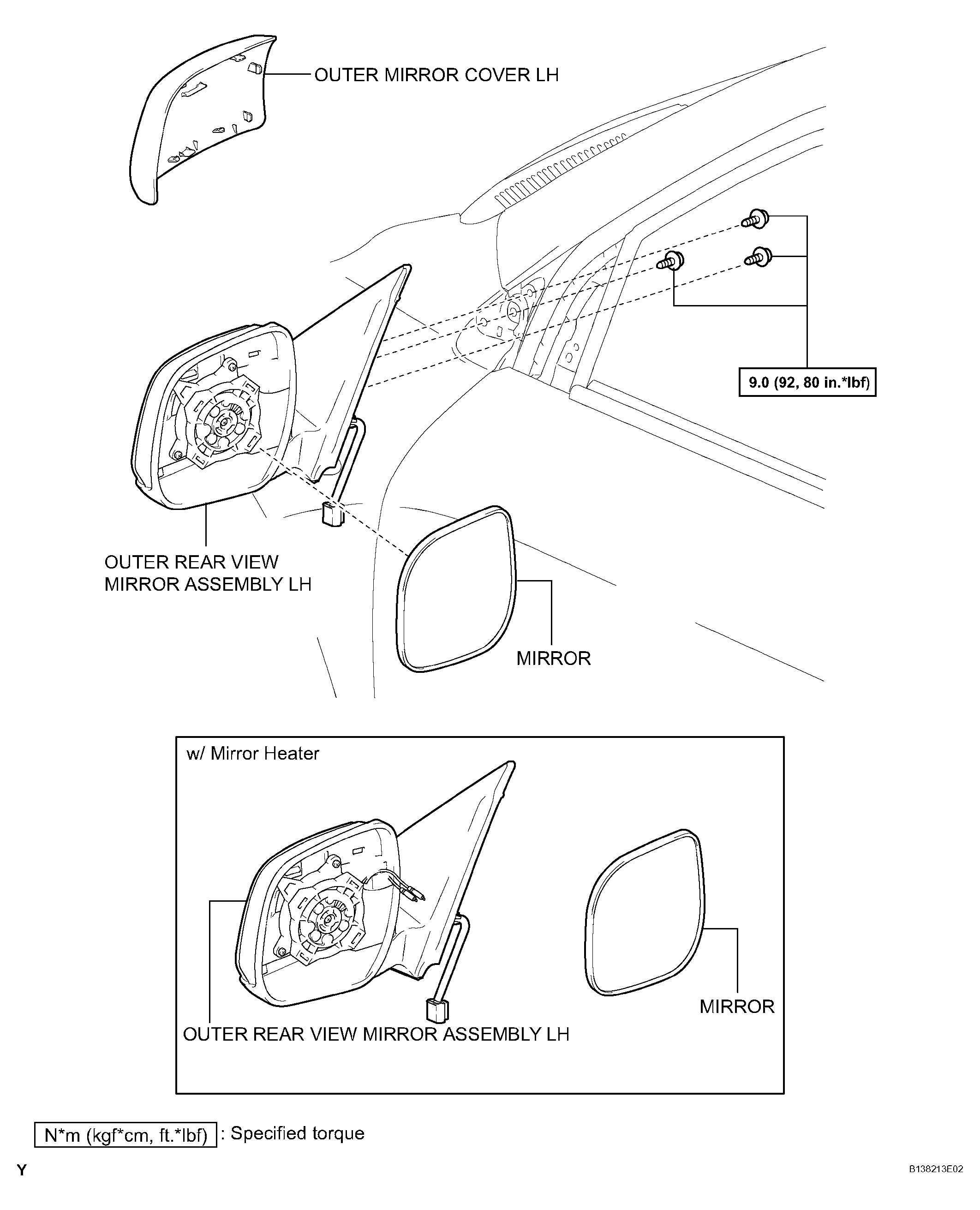

Fig 1: Outer View Mirror Replacement Components With Torque Specifications
G04491494Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

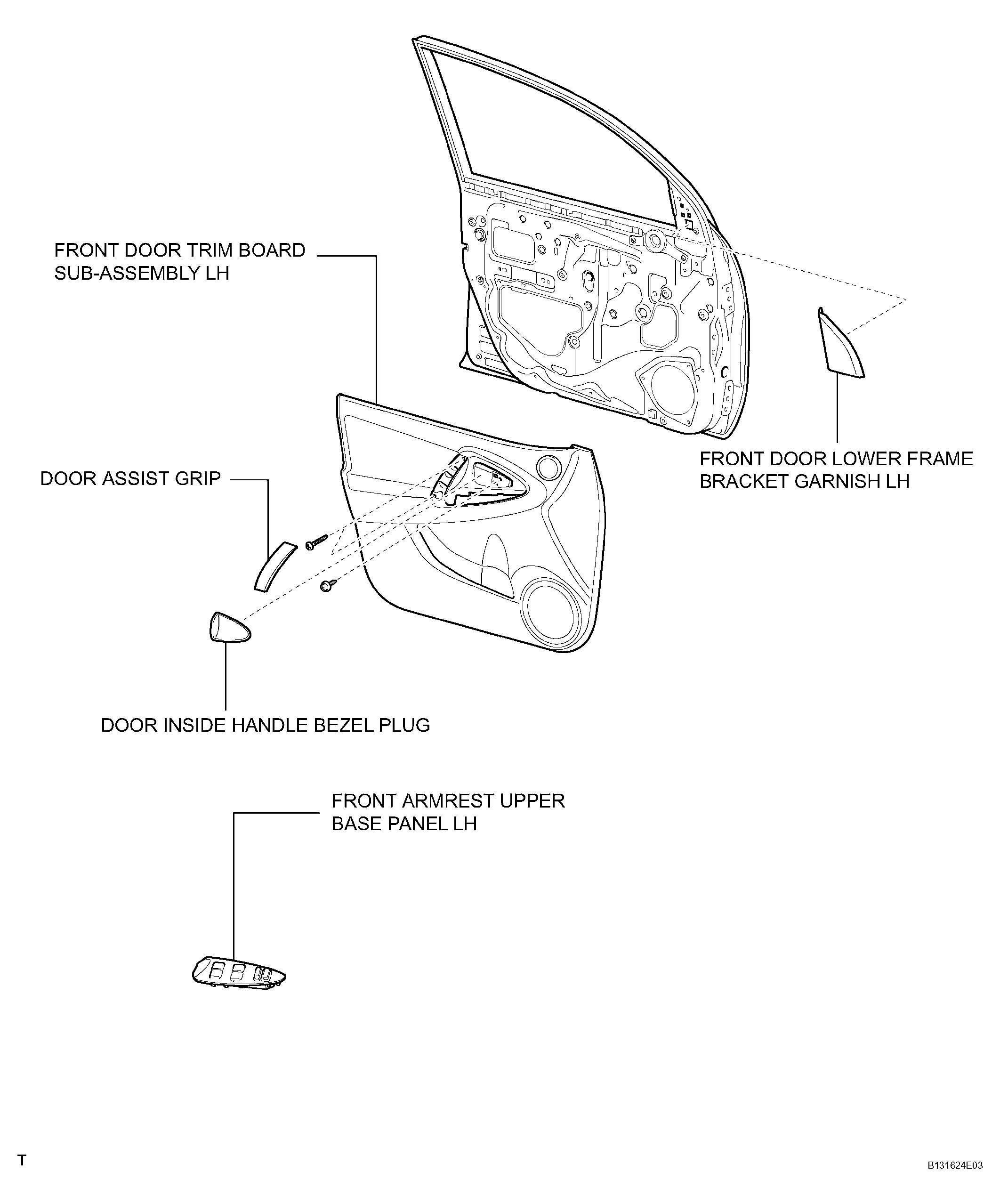

Fig 2: Identifying Door Panel Components
G04491495Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
