Fuel Lid Lock Control: Installation

  1. INSTALL FUEL FILLER OPENING LID LOCK RETAINER

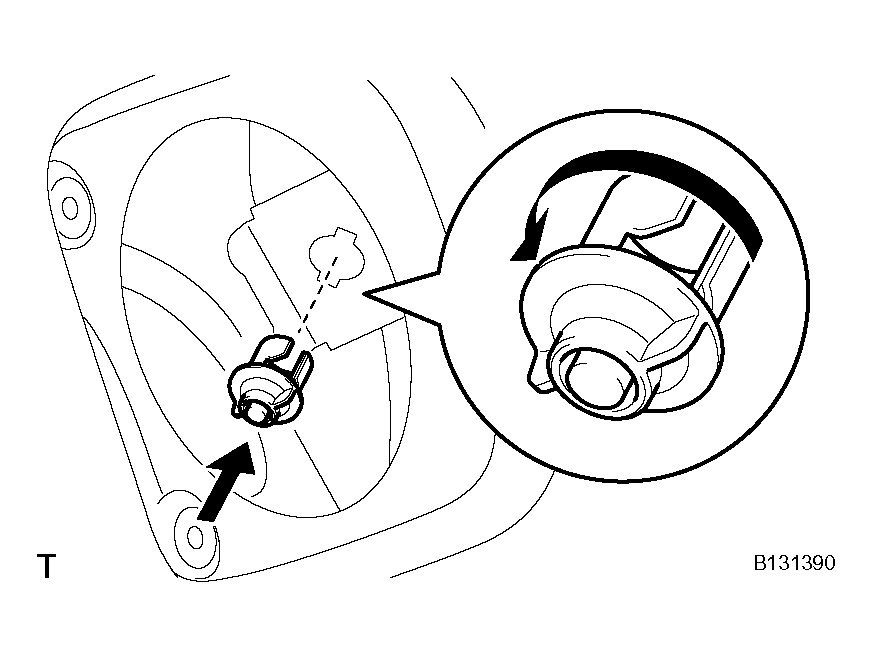

    1. Install the lock retainer and turn it counterclockwise as shown in the illustration.
      Fig 1: Installing Lock Retainer
      G04492537Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL FUEL LID LOCK CONTROL CABLE SUBASSEMBLY
    1. Install the cable and turn it clockwise as shown in Fig 2.
    2. Install the fuel lid lock open lever with the bolt.

      Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

      Fig 2: Installing Fuel Lid Lock Open Lever With Bolt
      G04492538Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

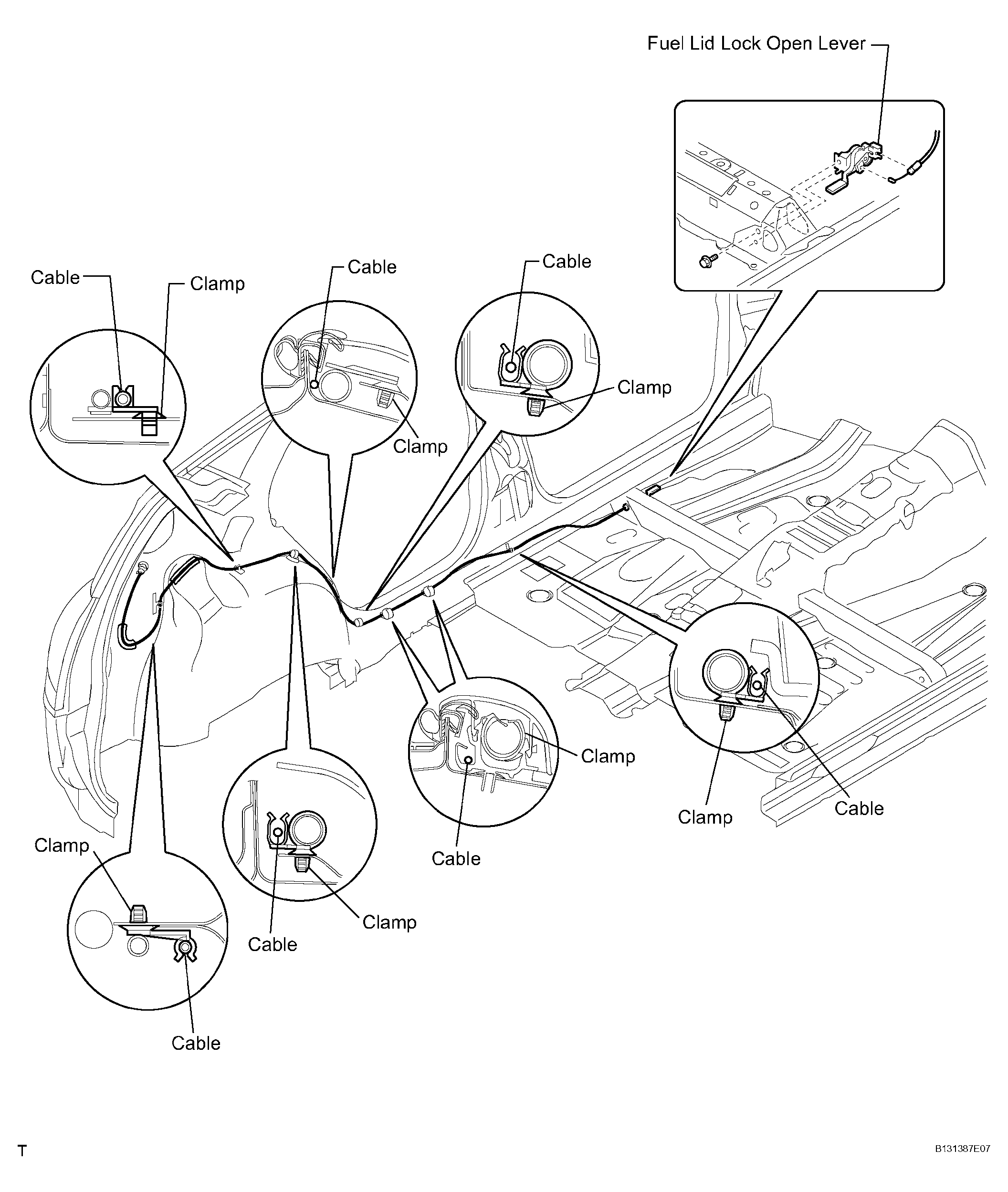

    3. Install the cable to the clamps as shown in Fig 3.
      Fig 3: Installing Cable To Clamps
      G04492539Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL FRONT FLOOR CARPET ASSEMBLY
  4. INSTALL DECK TRIM SIDE PANEL ASSEMBLY RH (w/Rear No. 2 Seat) (See  REMOVAL   )
  5. INSTALL DECK TRIM SIDE PANEL ASSEMBLY RH (w/o Rear No. 2 Seat) (See  INSTALLATION  )
  6. INSTALL DECK TRIM SIDE PANEL ASSEMBLY LH (w/Rear No. 2 Seat) (See  REMOVAL  )
  7. INSTALL DECK TRIM SIDE PANEL ASSEMBLY LH (w/o Rear No. 2 Seat) (See  INSTALLATION  )
  8. INSTALL TETHER ANCHOR BRACKET SUBASSEMBLY (w/o Rear No. 2 Seat) (See  INSTALLATION  )
  9. INSTALL RECLINING REMOTE CONTROL LEVER BEZEL RH (w/o Rear No. 2 Seat) (See appropriate step(s) under  INSTALLATION  )
  10. INSTALL RECLINING REMOTE CONTROL LEVER BEZEL LH (w/o Rear No. 2 Seat) (See appropriate step(s) under  INSTALLATION  )
  11. INSTALL REAR DECK TRIM COVER RH (w/Rear No. 2 Seat) (See  INSTALLATION  )
  12. INSTALL REAR DECK TRIM COVER LH (w/Rear No. 2 Seat) (See  INSTALLATION  )
  13. INSTALL REAR FLOOR FINISH PLATE (See  INSTALLATION  )
  14. INSTALL BACK DOOR WEATHERSTRIP
  15. INSTALL REAR FLOOR NO. 1 MAT SUPPORT SIDE PLATE (See  INSTALLATION  )
  16. INSTALL REAR FLOOR NO. 2 BOARD
  17. INSTALL REAR FLOOR NO. 3 BOARD
  18. INSTALL REAR NO. 2 SEAT ASSEMBLY RH (w/Rear No. 2 Seat)
    1. Install the rear No. 2 seat (See appropriate step(s) under INSTALLATION ).
  19. INSTALL REAR NO. 2 SEAT ASSEMBLY LH (w/Rear No. 2 Seat)
    1. Install the rear No. 2 seat (See appropriate step(s) under INSTALLATION ).
  20. INSTALL DECK BOARD ASSEMBLY (w/o Rear No. 2 Seat)
  21. INSTALL REAR FLOOR NO. 1 BOARD (w/o Rear No. 2 Seat)
  22. INSTALL TONNEAU COVER ASSEMBLY (w/o Rear No. 2 Seat)
  23. INSTALL PACKAGE TRAY TRIM POCKET SUBASSEMBLY (w/o Rear No. 2 Seat)
  24. INSTALL LOWER CENTER PILLAR GARNISH RH (See  INSTALLATION  )
  25. INSTALL LOWER CENTER PILLAR GARNISH LH (See  INSTALLATION  )
  26. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP RH
  27. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP LH
  28. INSTALL REAR DOOR SCUFF PLATE RH (See  INSTALLATION  )
  29. INSTALL REAR DOOR SCUFF PLATE LH (See  INSTALLATION  )
  30. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP RH
  31. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP LH
  32. INSTALL COWL SIDE TRIM BOARD RH (See  INSTALLATION  )
  33. INSTALL COWL SIDE TRIM BOARD LH (See  INSTALLATION  )
  34. INSTALL FRONT DOOR SCUFF PLATE RH (See  INSTALLATION  )
  35. INSTALL FRONT DOOR SCUFF PLATE LH (See  INSTALLATION  )
  36. INSTALL REAR CONSOLE BOX SUB-ASSEMBLY (See appropriate step(s) under  INSTALLATION  )
  37. INSTALL NO. 1 INSTRUMENT PANEL BRACKET COVER INNER RH (See appropriate step(s) under  INSTALLATION  )
  38. INSTALL NO. 1 INSTRUMENT PANEL BRACKET COVER INNER LH (See appropriate step(s) under  INSTALLATION  )
  39. INSTALL CONSOLE REAR END PANEL (See appropriate step(s) under  INSTALLATION  )
  40. INSTALL UPPER REAR CONSOLE PANEL SUBASSEMBLY (See appropriate step(s) under  INSTALLATION  )
  41. INSTALL CONSOLE CUP HOLDER BOX (See appropriate step(s) under  INSTALLATION  )
  42. INSTALL SWITCH BASE (See appropriate step(s) under  INSTALLATION  )
  43. INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY (See appropriate step(s) under  INSTALLATION  )
  44. INSTALL NO. 2 CONSOLE UPPER PANEL GARNISH (See appropriate step(s) under  INSTALLATION  )
  45. INSTALL NO. 1 CONSOLE UPPER PANEL GARNISH (See appropriate step(s) under  INSTALLATION  )
  46. INSTALL REAR NO. 1 SEAT ASSEMBLY LH
    1. Install the rear No. 1 seat (see INSTALLATION ).
  47. INSTALL REAR NO. 1 SEAT ASSEMBLY RH
    1. Install the rear No. 1 seat (see INSTALLATION ).
  48. INSTALL FRONT SEAT ASSEMBLY LH
    1. Install the front seat.

      for Manual Seat (see INSTALLATION )

      for Power Seat (see INSTALLATION ).

  49. INSTALL FRONT SEAT ASSEMBLY RH
    1. Install the front seat.

      for Manual Seat (see INSTALLATION )

      for Power Seat (see INSTALLATION ).

  50. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  51. CHECK SRS WARNING LIGHT
    1. Check the SRS warning light (see DIAGNOSIS SYSTEM ).
