Roof Rack: Components

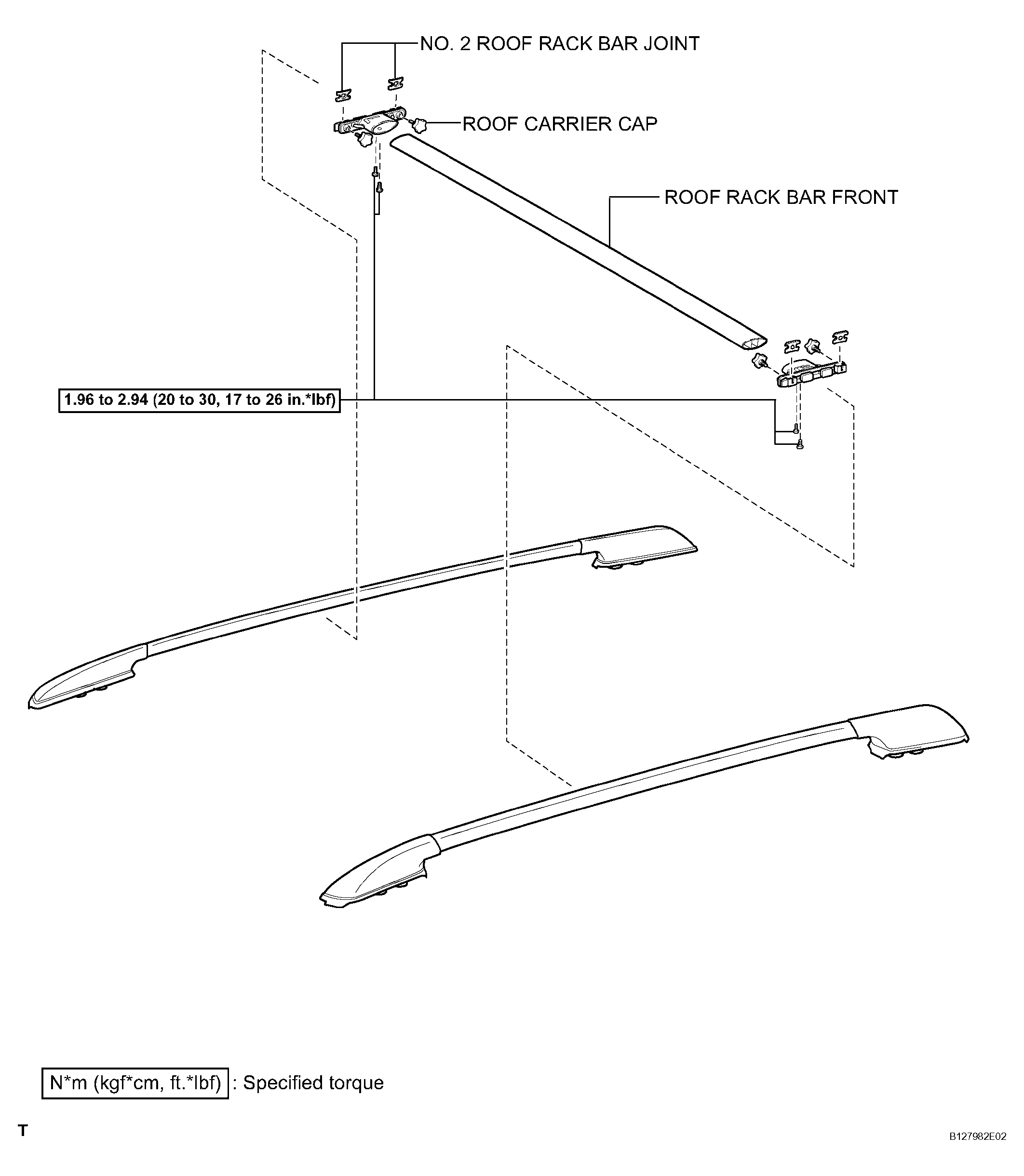

Fig 1: Roof Rack Replacement Components & Torque Specification (1 Of 2)
G04492286Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

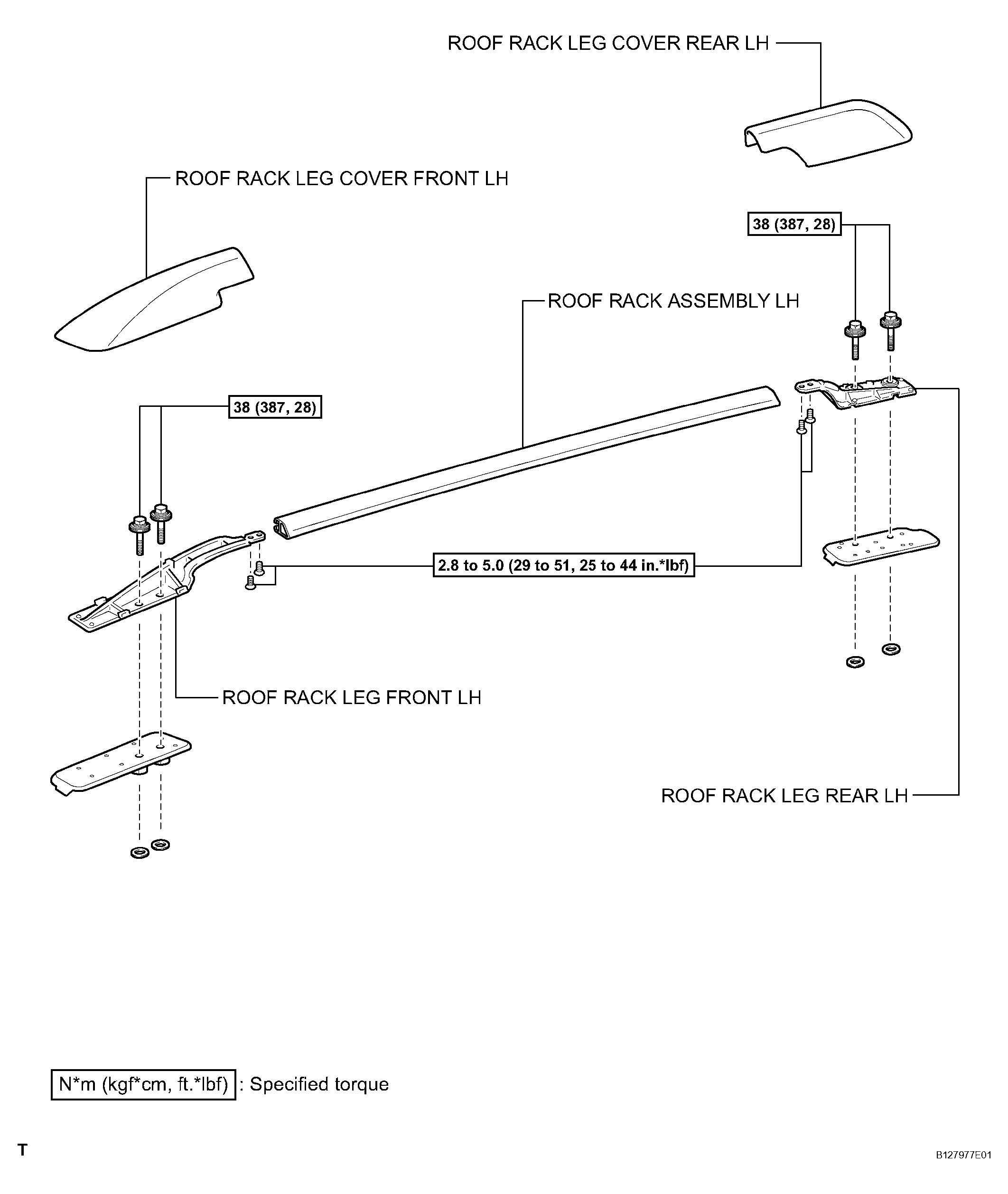

Fig 2: Roof Rack Replacement Components & Torque Specification (2 Of 2)
G04492287Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
