Name Plate: Components

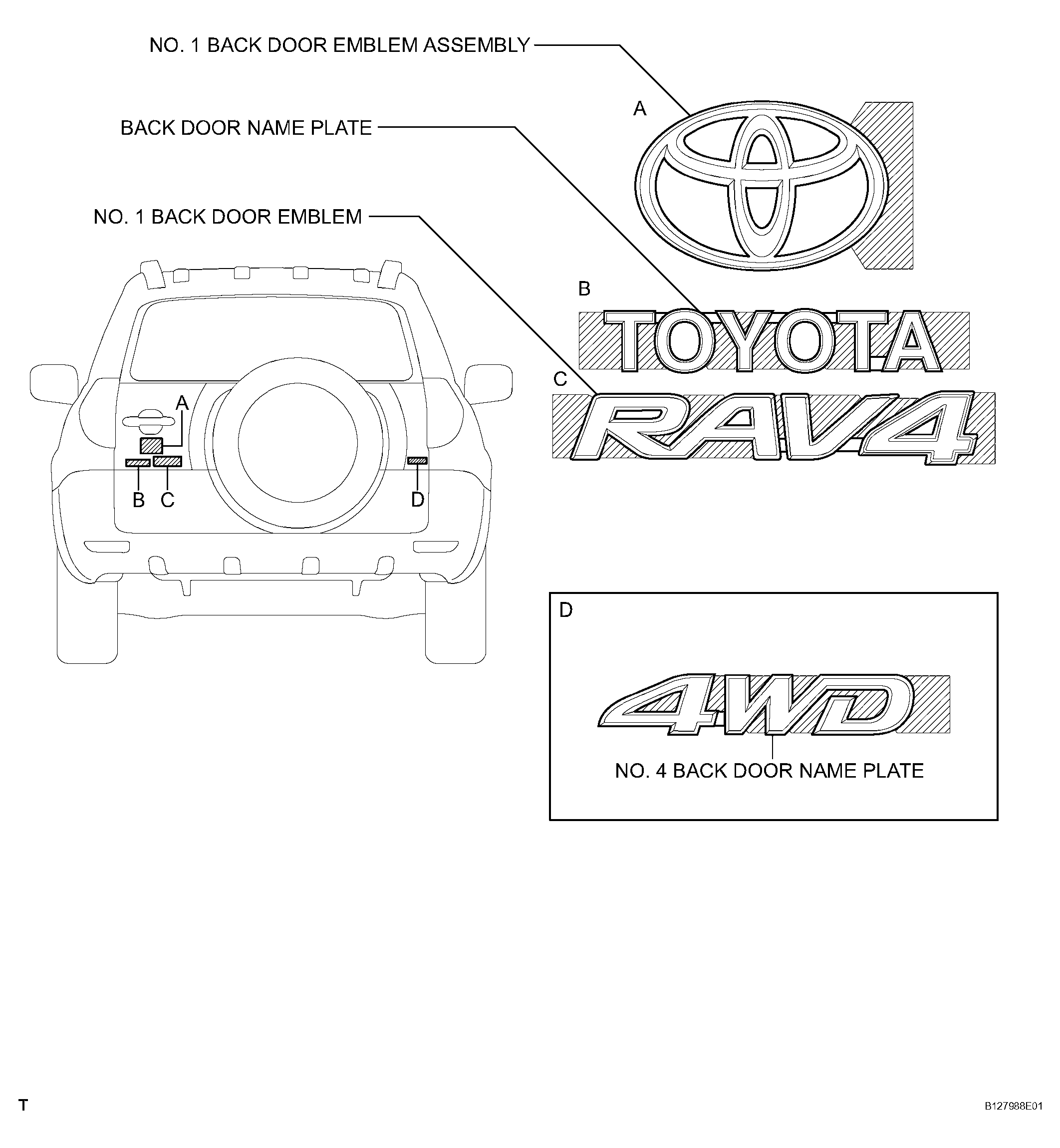

Fig 1: Identifying Name Plate Components
G04492271Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

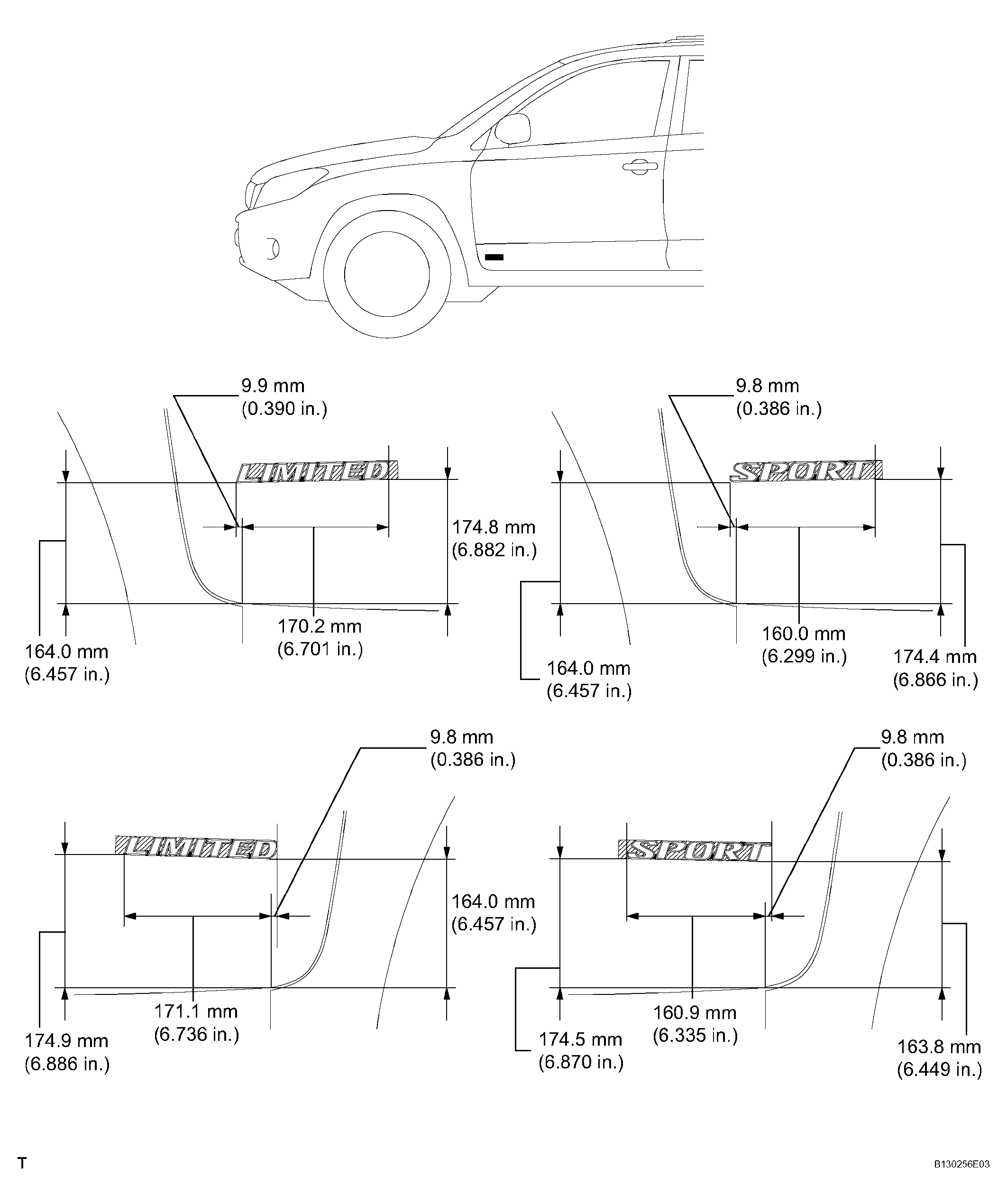

Fig 2: Identifying Name Plate Positioning Specifications
G04492272Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
