Front Bumper: Components

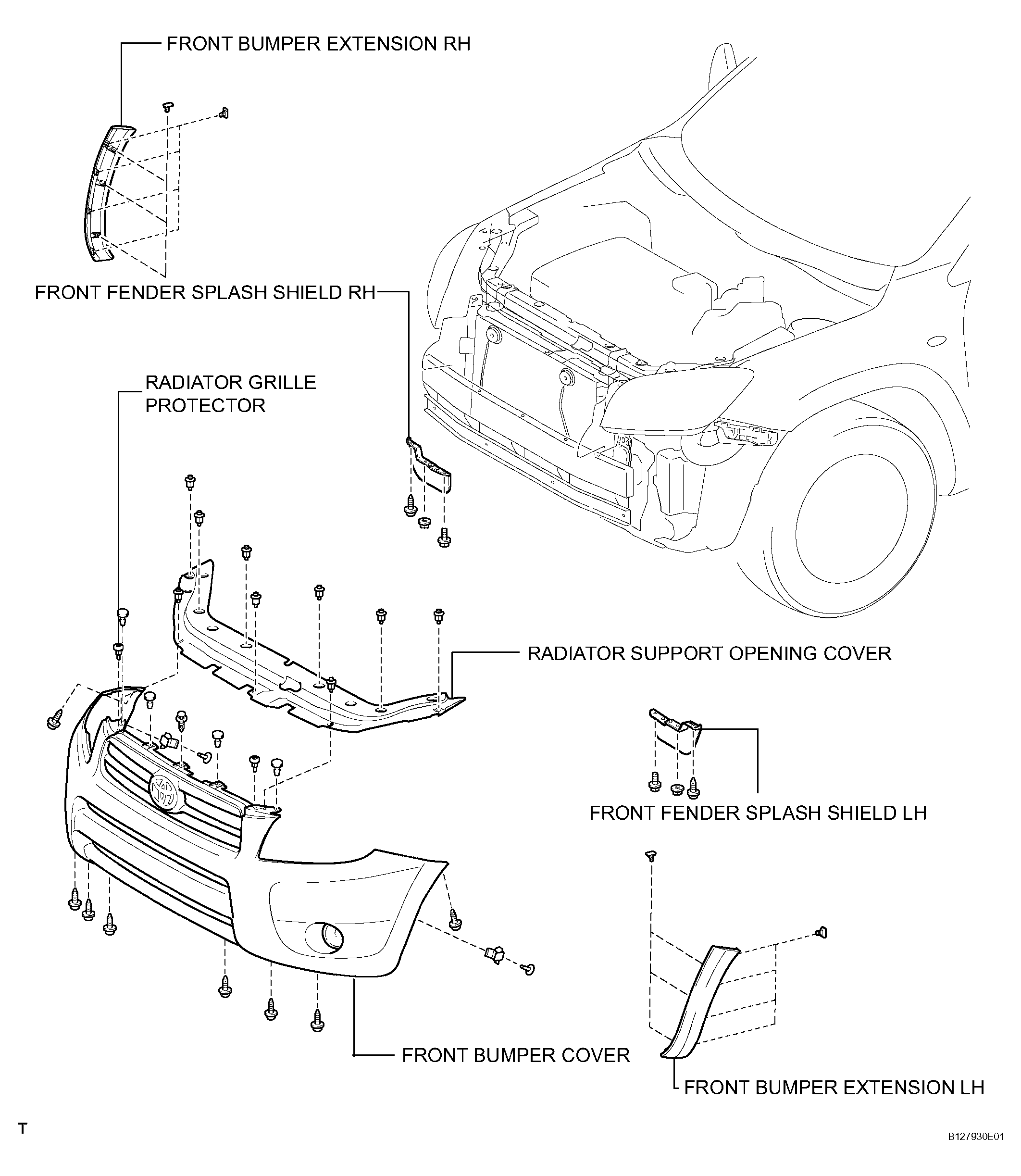

Fig 1: Identifying Front Bumper Components (1 Of 3)
G04492187Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

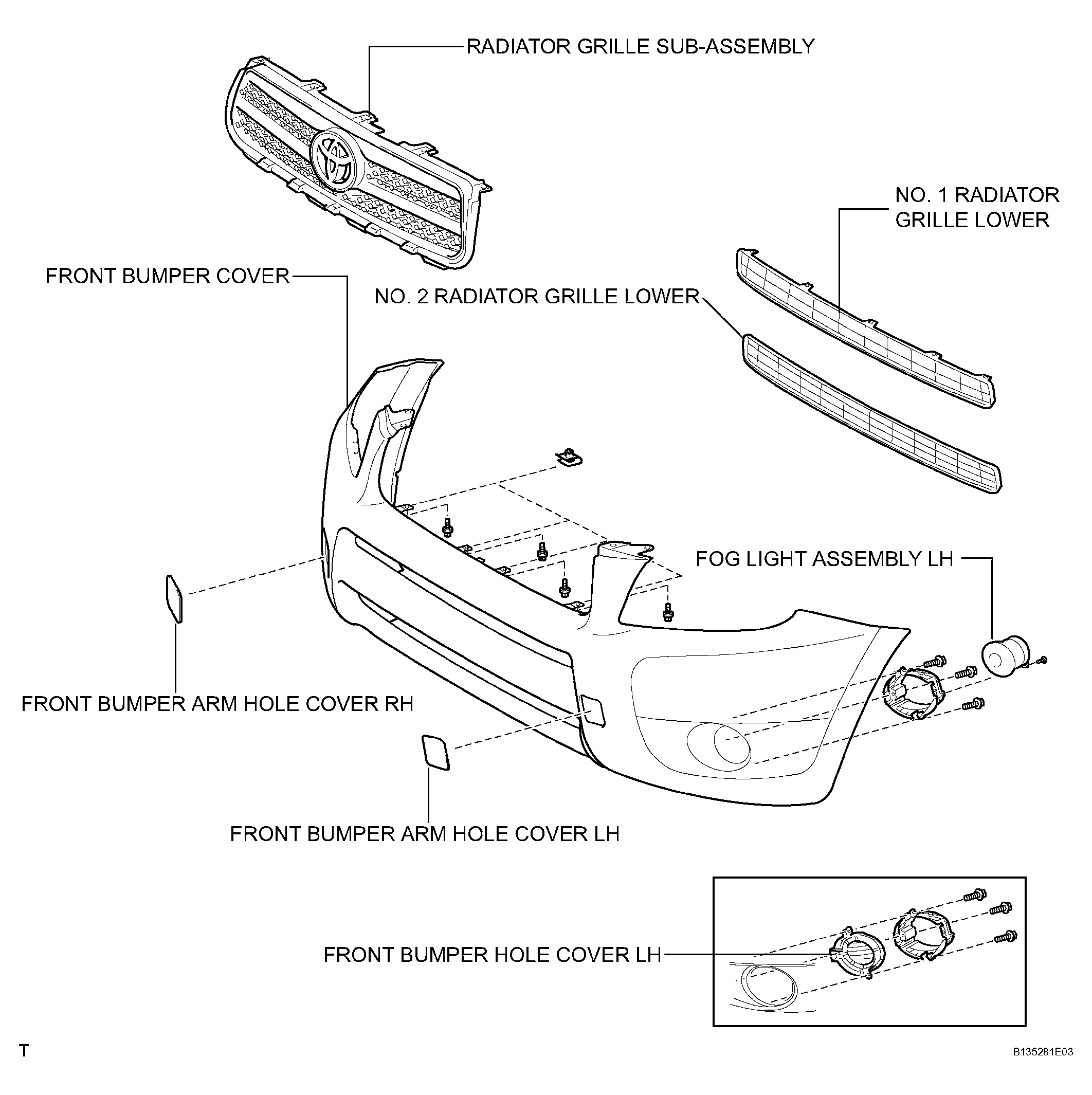

Fig 2: Identifying Front Bumper Components (2 Of 3)
G04492188Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

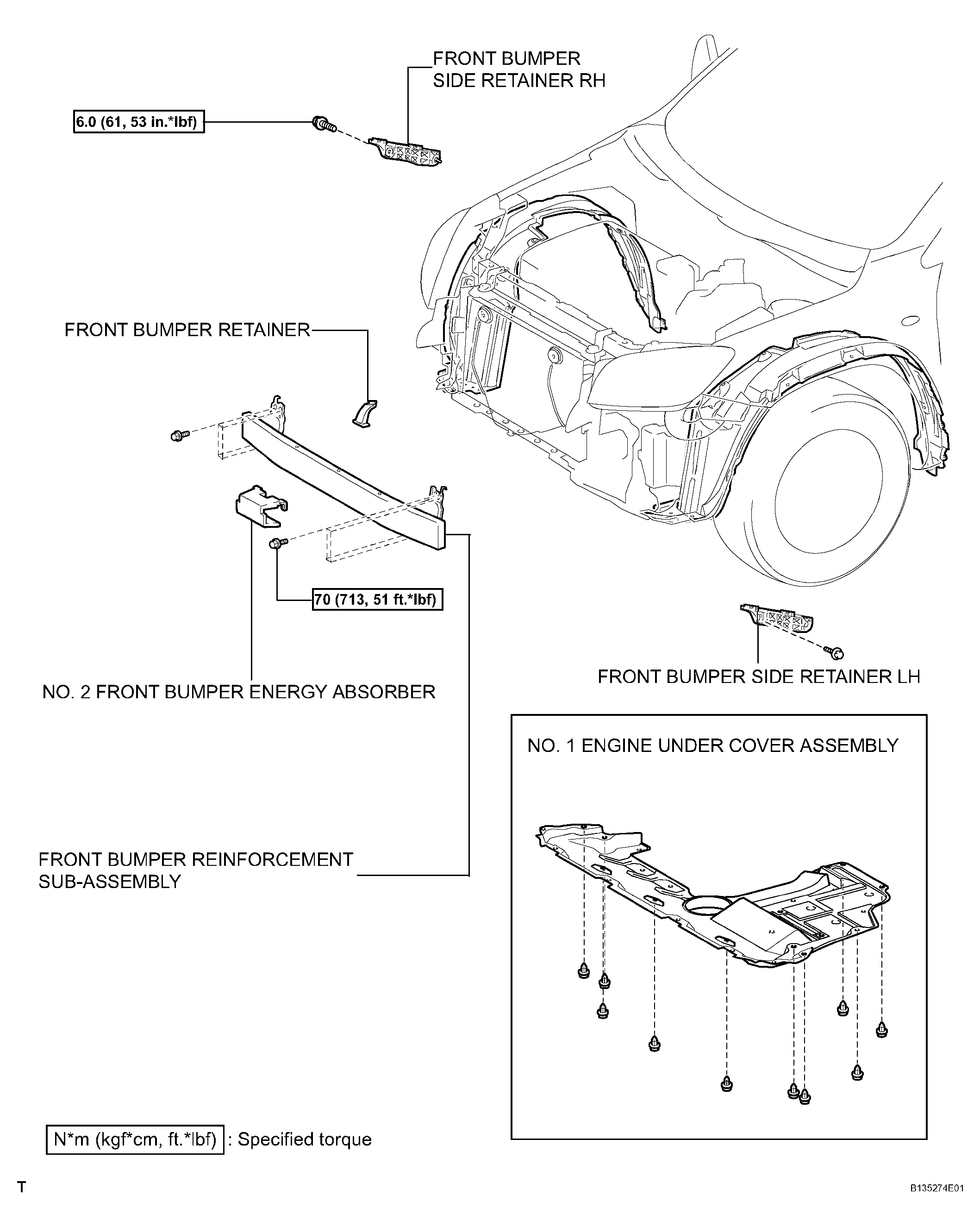

Fig 3: Front Bumper Replacement Components With Torque Specifications (3 Of 3)
G04492189Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
