Steering Pad Switch Circuit: Wiring Diagram

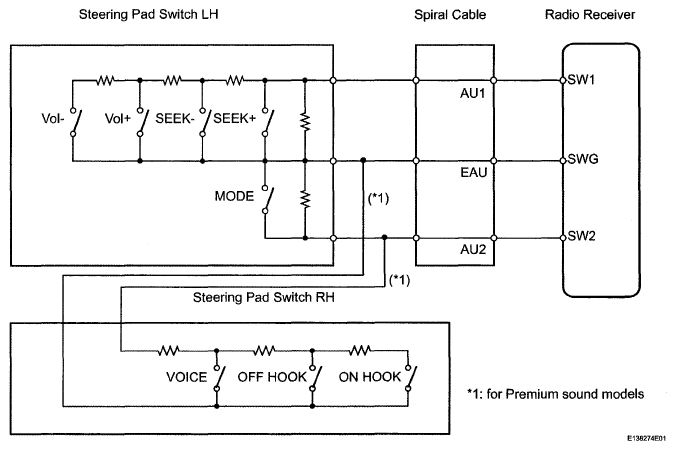

Fig 1: Steering Pad Switch Wiring Diagram

G05184763

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
