Cruise Control Main Switch: Installation

INSTALL CRUISE CONTROL MAIN SWITCH
1. Install the switch with the 2 screws.
  Torque: 1.7 to 3.0 N*m (17.34 to 30.60 kgf*cm,

  15.04 to 26.55 in.*lbf)

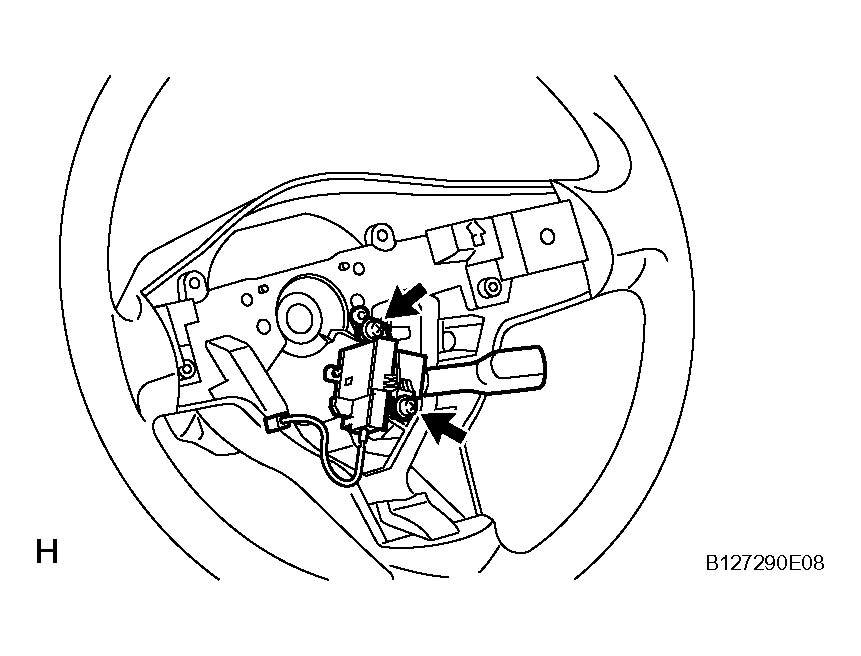

  Fig 1: Installing Cruise Control Main Switch
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the connector.
INSTALL STEERING PAD ASSEMBLY (See INSTALLATION )
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
CHECK SRS WARNING LIGHT
1. Check the SRS warning light (see DIAGNOSIS SYSTEM ).
