Cruise Control Main Switch: Inspection

  1. INSPECT CRUISE CONTROL MAIN SWITCH
    1. Measure the resistance of the switch.

      Standard resistance

      TESTER CONNECTION AND SPECIFIED CONDITION

      Tester Connection Switch Condition Specified Condition
      3 - 4 +/RES 216 to 264 Ω
      -/SET 567 to 693 Ω
      CANCEL 1,386 to 1,694 Ω
      Cruise control switch ON Below 1 Ω
      Cruise control switch OFF 10 kΩ or higher

      If the result is not as specified, replace the switch assembly.

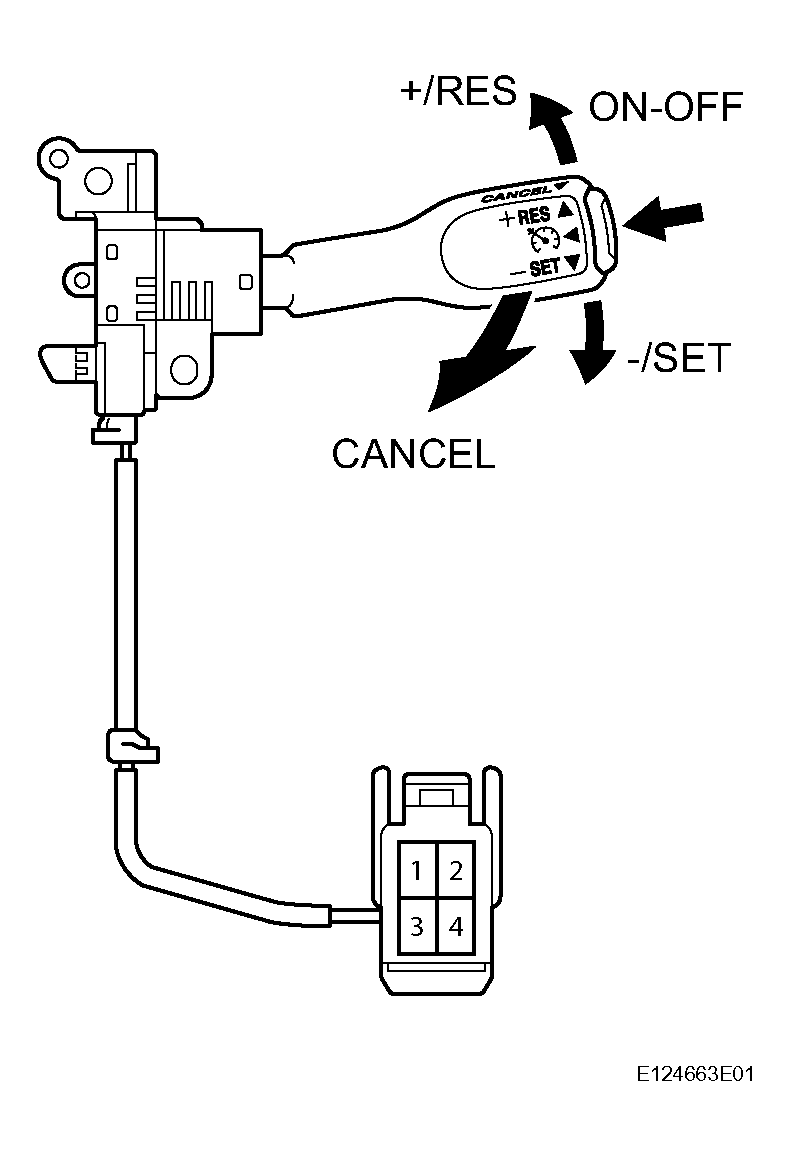

      Fig 1: Inspecting Cruise Control Main Switch
      G04490716Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
