Cruise Control Main Switch: Components

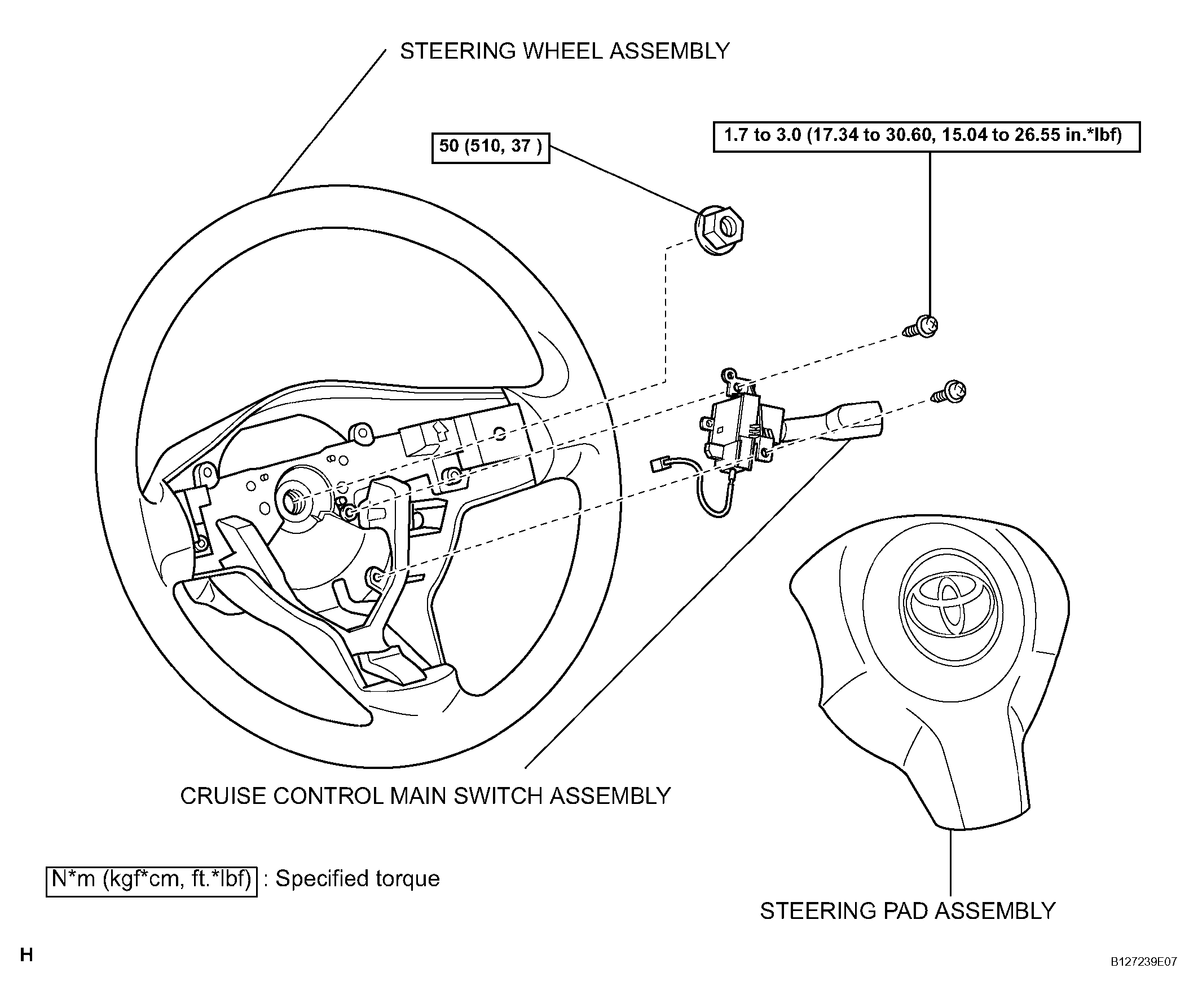

Fig 1: Cruise Control Main Switch Replacement Components With Torque Specifications

G04490714

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
