Valve Body: Disassembly

  1. REMOVE SHIFT SOLENOID VALVE SLT
    1. Remove the bolt, plate and shift solenoid valve SLT from the valve body.

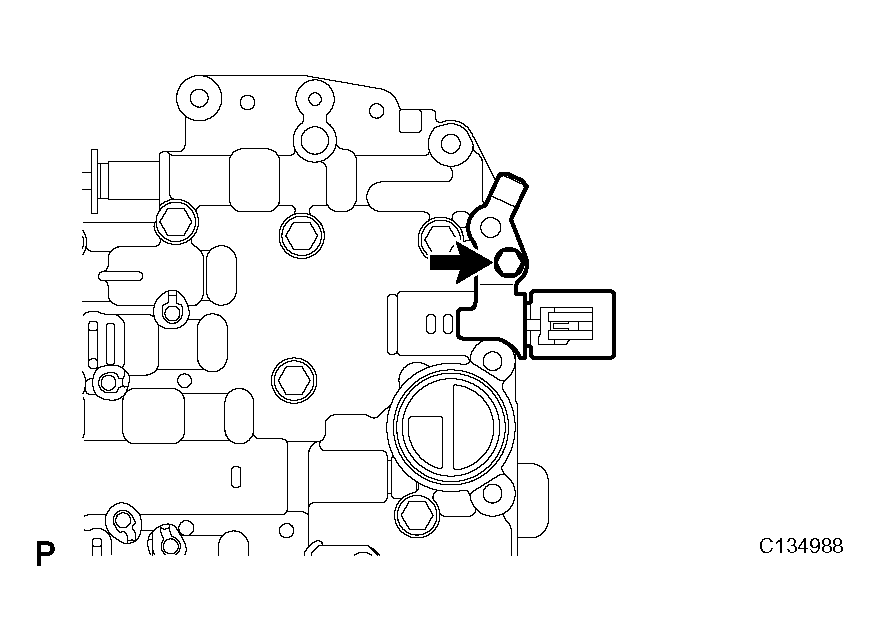

      Fig 1: Removing Shift Solenoid Valve SLT
      G04486792Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE SHIFT SOLENOID VALVE SL1
    1. Remove the bolt, plate and shift solenoid valve SL1 from the valve body.

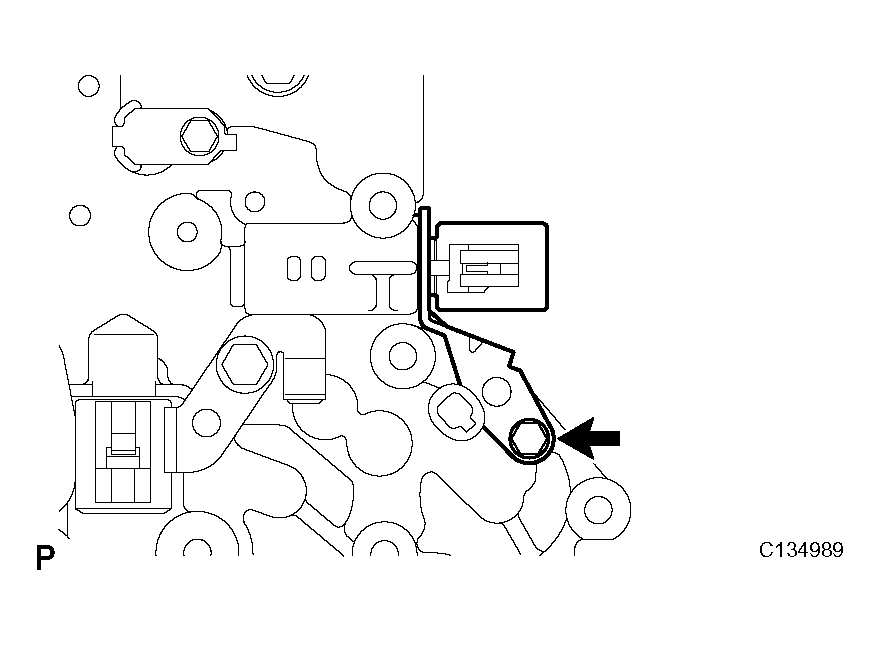

      Fig 2: Removing Shift Solenoid Valve SL1
      G04486793Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE SHIFT SOLENOID VALVE DSL
    1. Remove the bolt and shift solenoid valve DSL from the valve body.
      Fig 3: Removing Shift Solenoid Valve DSL
      G04486794Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE SHIFT SOLENOID VALVE SL2
    1. Remove the bolt, plate and shift solenoid valve SL2 from the valve body.

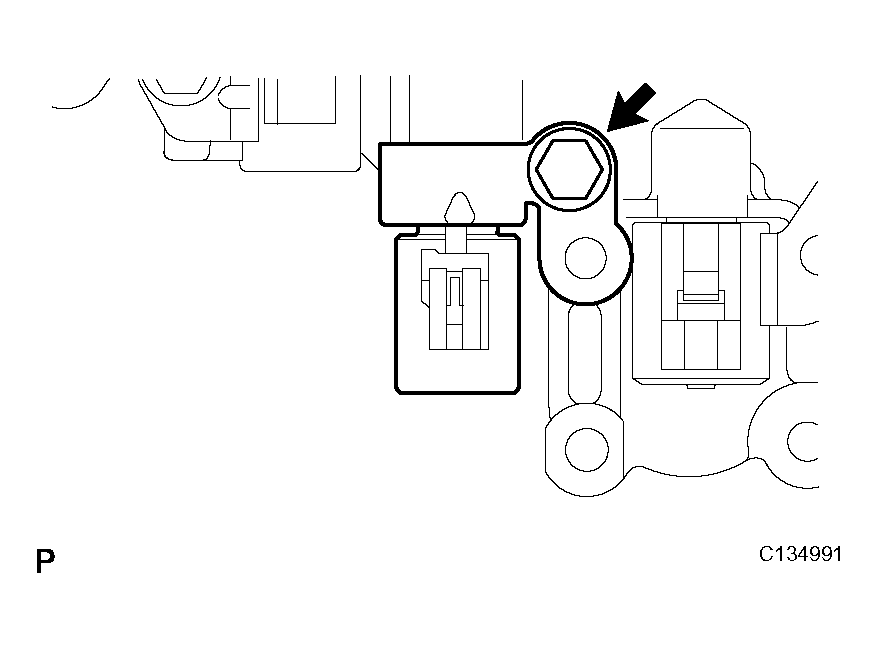

      Fig 4: Removing Shift Solenoid Valve SL2
      G04486795Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE SHIFT SOLENOID VALVE S4
    1. Remove the bolt and shift solenoid valve S4 from the valve body.
  6. REMOVE MANUAL VALVE
    1. Remove the manual valve from the valve body.

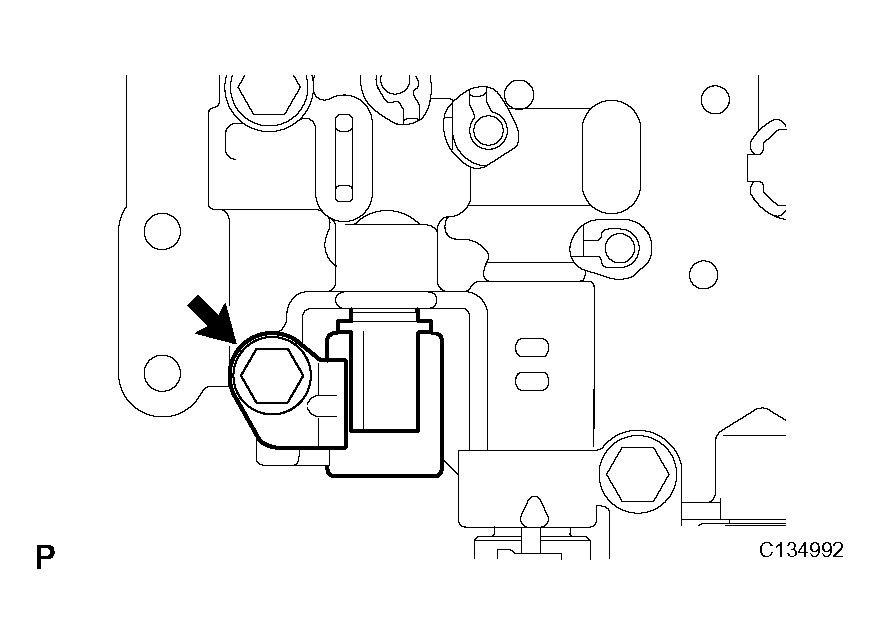

      Fig 5: Removing Manual Valve
      G04486796Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
