Valve Body Assembly: Components

Fig 1: Identifying Valve Body Assembly Components (1 Of 2)
G04486328Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

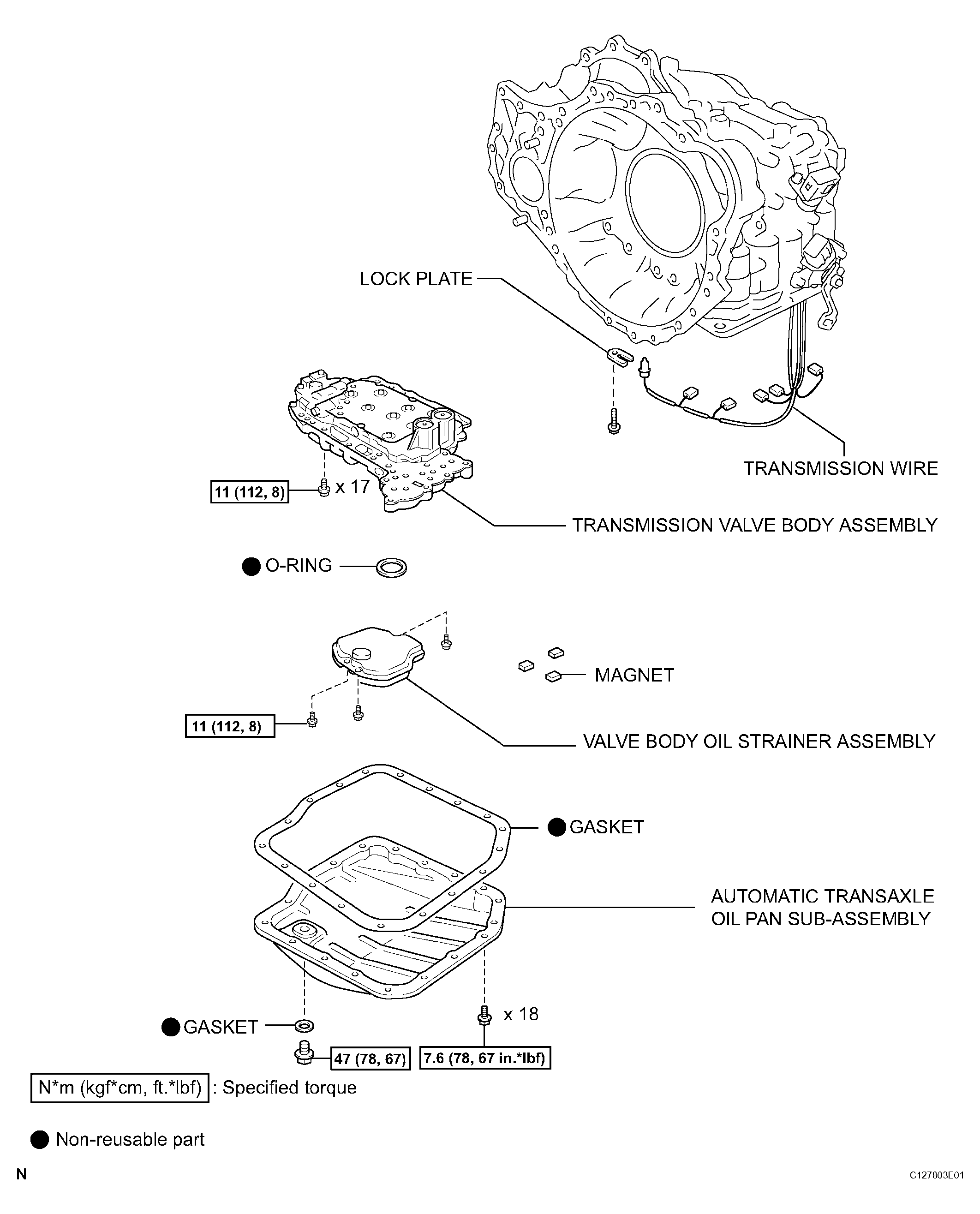

Fig 2: Identifying Valve Body Assembly Components (2 Of 2)
G04486329Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
