Transmission Wire: Installation

INSTALL TRANSMISSION WIRE
1. Coat a new O-ring of the transmission wire connector with ATF.

  Fig 1: Installing Transmission Wire
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

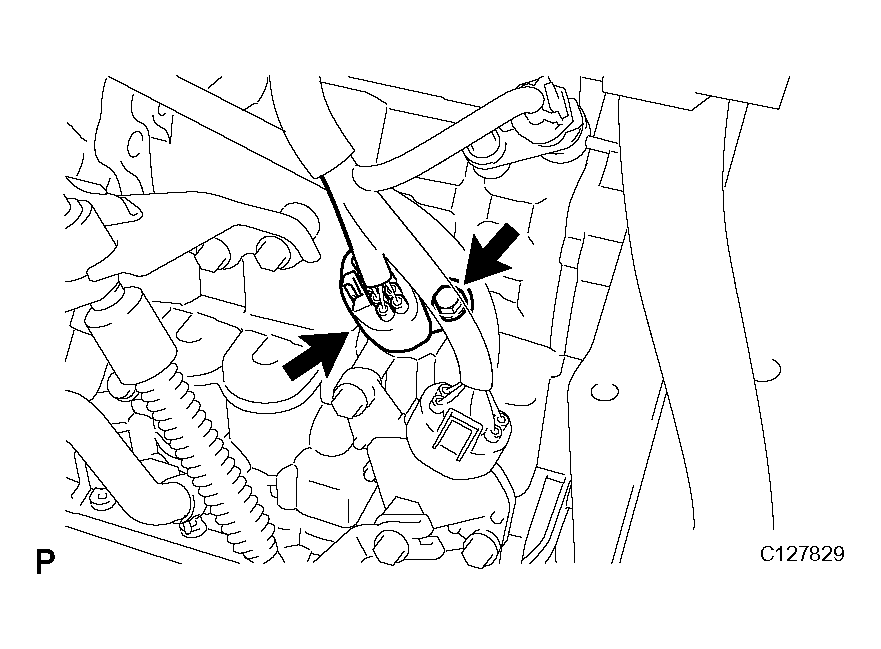

2. Install the transmission wire.
3. Install the bolt.
4. Connect the connector.

  Fig 2: Connecting Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

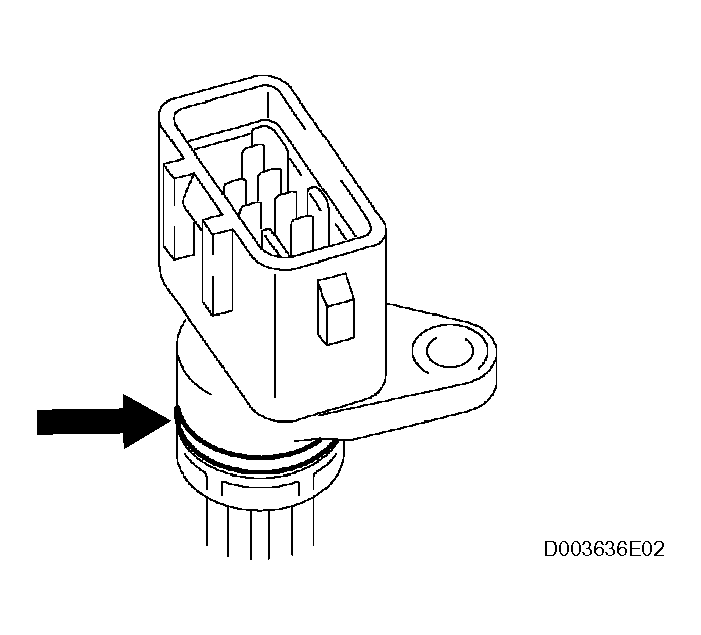

5. Coat the O-ring of the ATF temperature sensor with ATF.
6. Install the ATF temperature sensor with the lock plate and bolt.
  Torque: 6.6 N*m (67 kgf*cm, 58 in.*lbf)

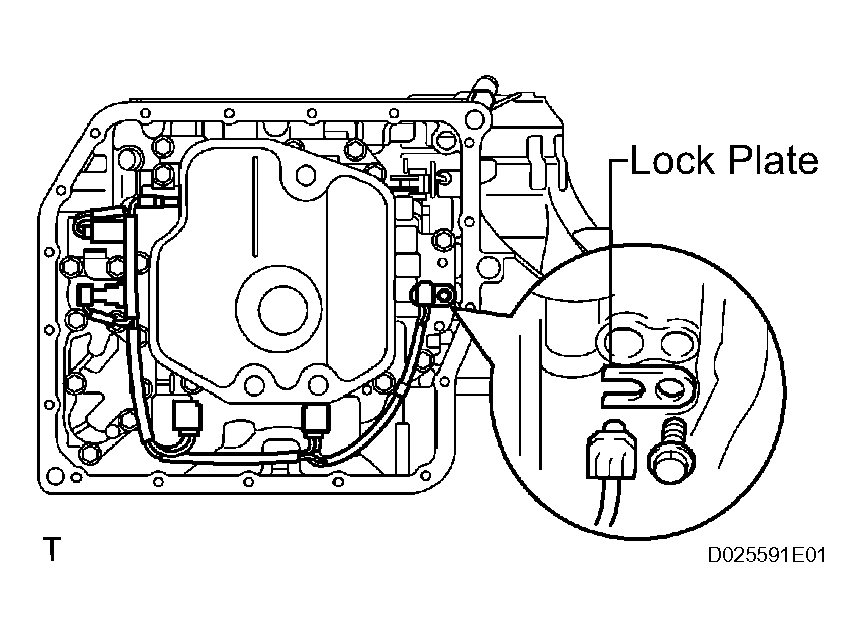

7. Connect the 5 shift solenoid valve connectors.

  Fig 3: Connecting Shift Solenoid Valve Connectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL AUTOMATIC TRANSAXLE OIL PAN SUB-ASSEMBLY

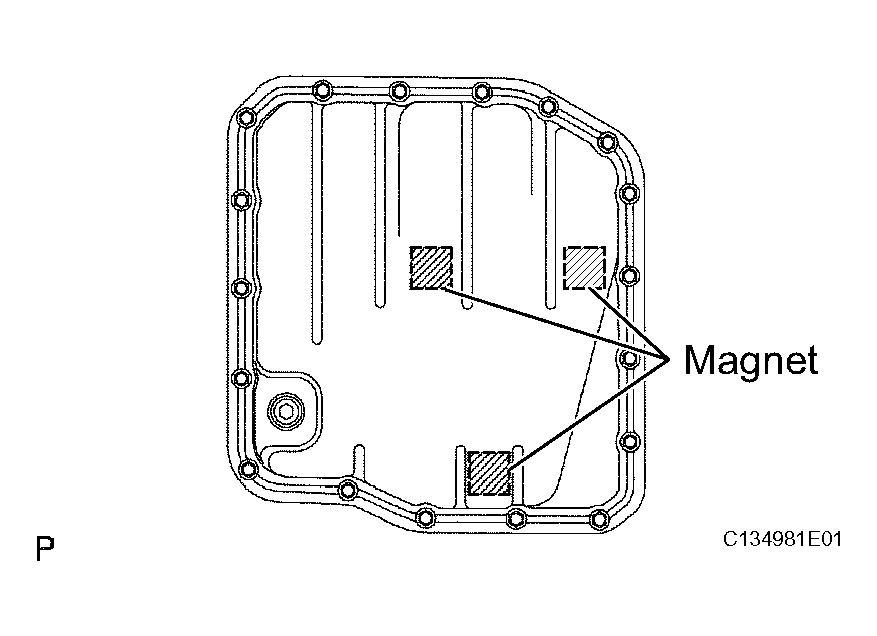

1. Install the 3 magnets in the oil pan.

  Fig 4: Installing Magnets In Oil Pan
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install a new gasket and the oil pan with the 18 bolts.
  Torque: 7.6 N*m (77 kgf*cm, 67 in.*lbf)
INSTALL NO. 1 ENGINE UNDER COVER
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
ADD AUTOMATIC TRANSAXLE FLUID
Fluid type: Toyota Genuine ATF WS

Fig 5: Identifying Oil Pan Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT TRANSAXLE FLUID LEVEL
1. Inspect the fluid level (see INSPECTION PROCEDURE ).
PERFORM RESET MEMORY
1. Perform the RESET MEMORY procedures (A/T initialization) (see INITIALIZATION ).
