Speed Sensor: Inspection

  1. INSPECT SPEED SENSOR NT

    Measure the resistance of the sensor.

    Standard resistance

    RESISTANCE REFERENCE

    Tester Connection Condition Specified Condition
    1 - 2 20°C (68°F) 560 to 680 Ω

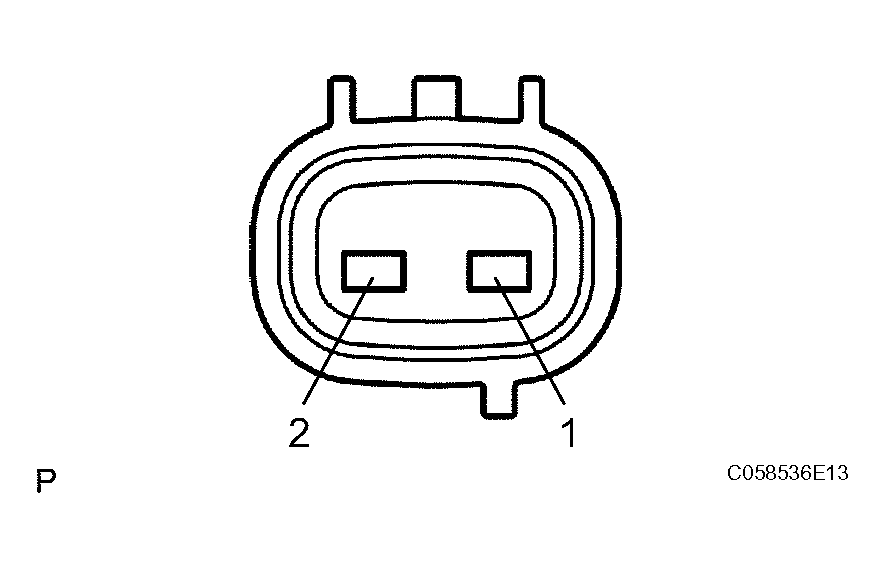

    Fig 1: Identifying Connector Terminals
    G04486297Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSPECT SPEED SENSOR NC

    Measure the resistance of the sensor.

    Standard resistance

    RESISTANCE REFERENCE

    Tester Connection Condition Specified Condition
    1 - 2 20°C (68°F) 560 to 680 Ω

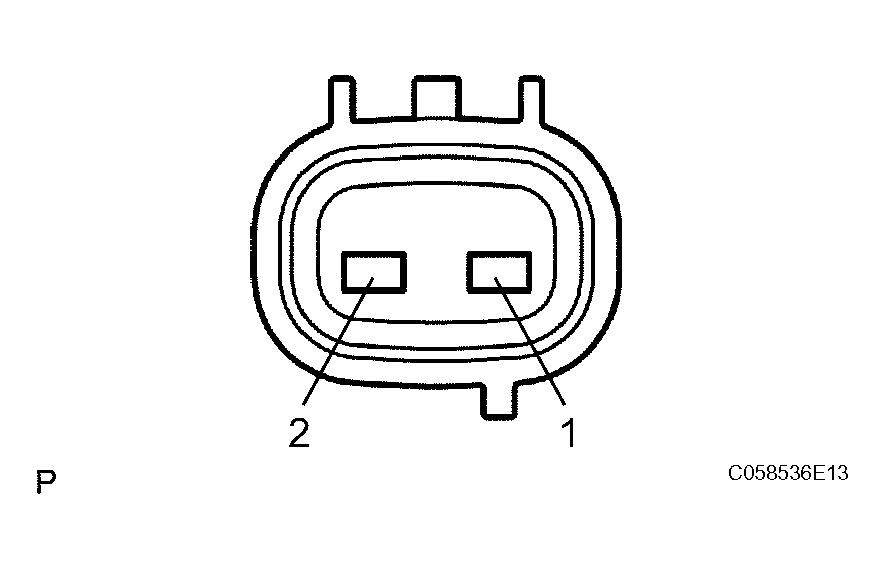

    Fig 2: Identifying Connector Terminals
    G04486298Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
