Speed Sensor: Components

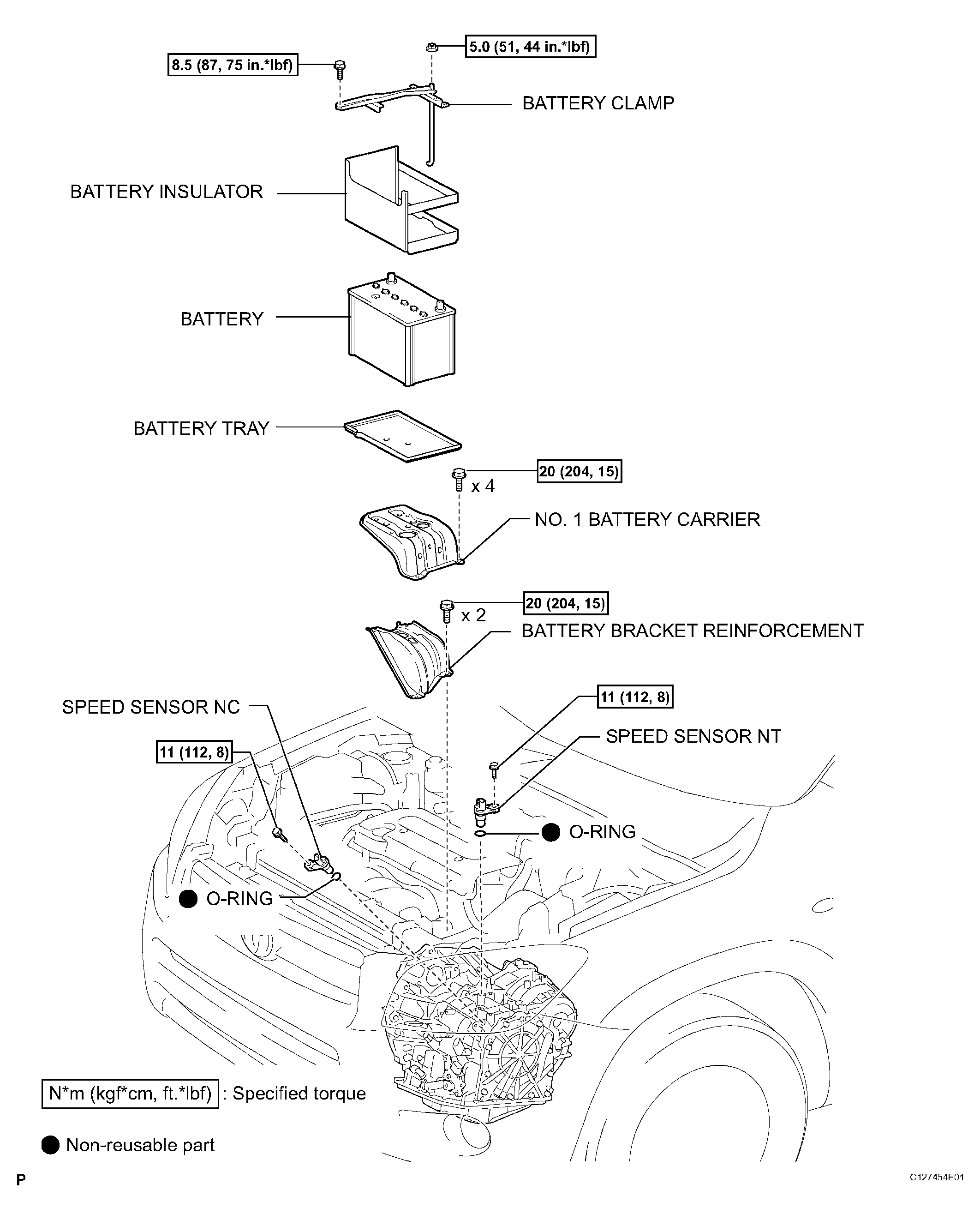

Fig 1: Identifying Speed Sensor Components

G04486294

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
