Second Brake Piston: Reassembly

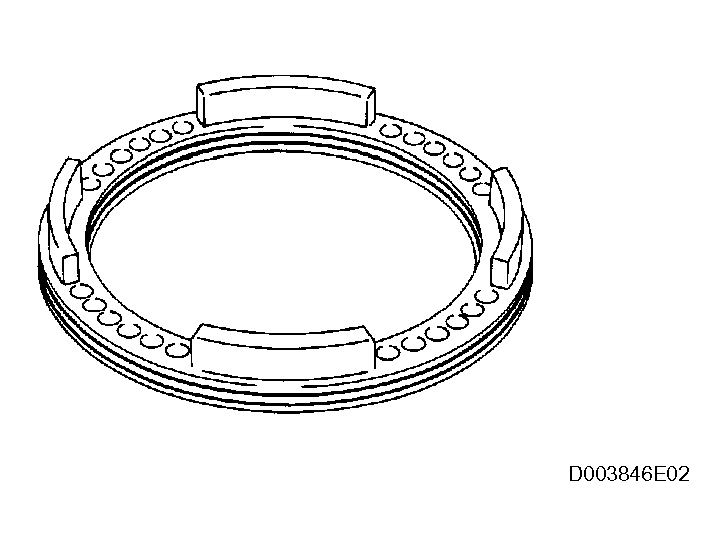

INSTALL 2ND BRAKE PISTON O-RING
1. Coat the 2 new O-rings with ATF, and install them into the 2nd brake piston.

  Fig 1: Installing 2Nd Brake Piston O-Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

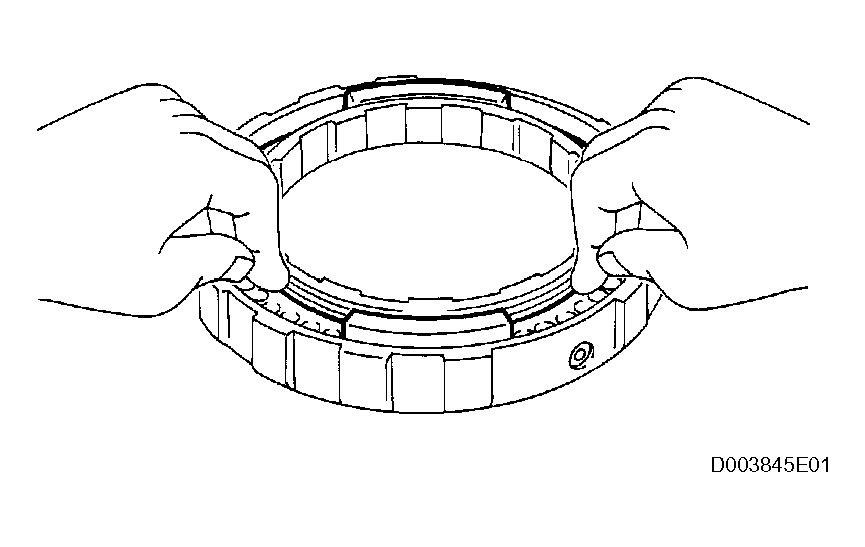

INSTALL 2ND BRAKE PISTON
1. Press in the 2nd brake piston into the 2nd brake cylinder with your hands.

  Fig 2: Installing 2Nd Brake Piston
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

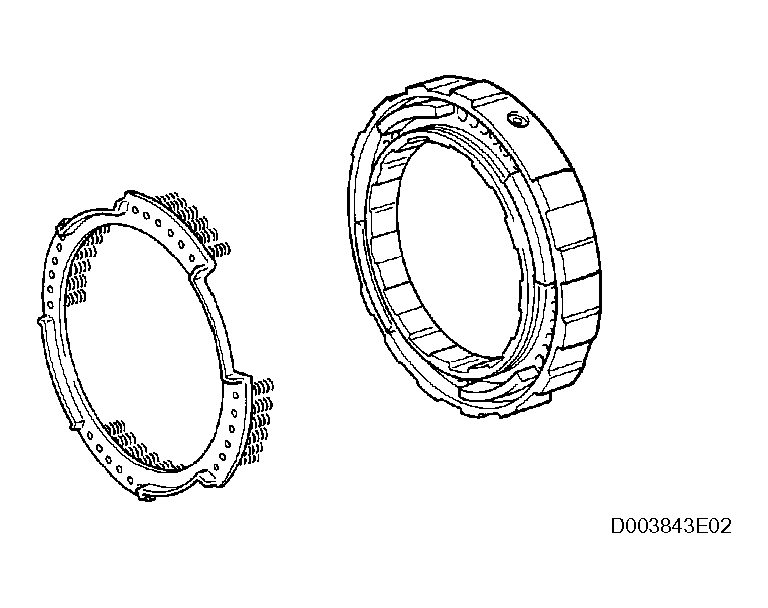

INSTALL 2ND BRAKE PISTON RETURN SPRING SUB-ASSEMBLY
1. Install the piston return spring.

  Fig 3: Installing Piston Return Spring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

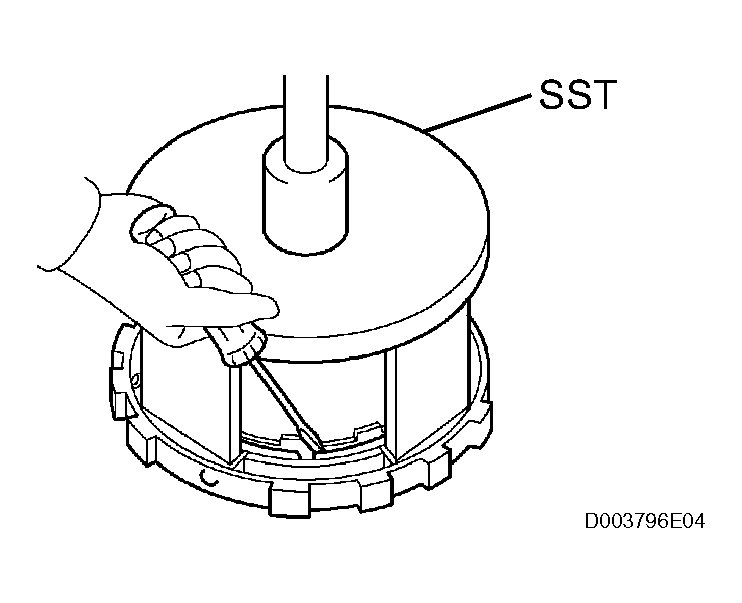

2. Place SST on the piston return spring, and compress the piston return spring with a press.
  SST 09387-00060
3. Using a screwdriver, install the snap ring.
  NOTE: Be sure the end gap of the snap ring is not aligned with the piston return spring claw.

  Fig 4: Installing Snap Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
