Home >> Toyota >> 2007 >> RAV4 Base, 2.4 D, AWD >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission - U140F >> Park / Neutral Position Switch >> Components

Park / Neutral Position Switch: Components

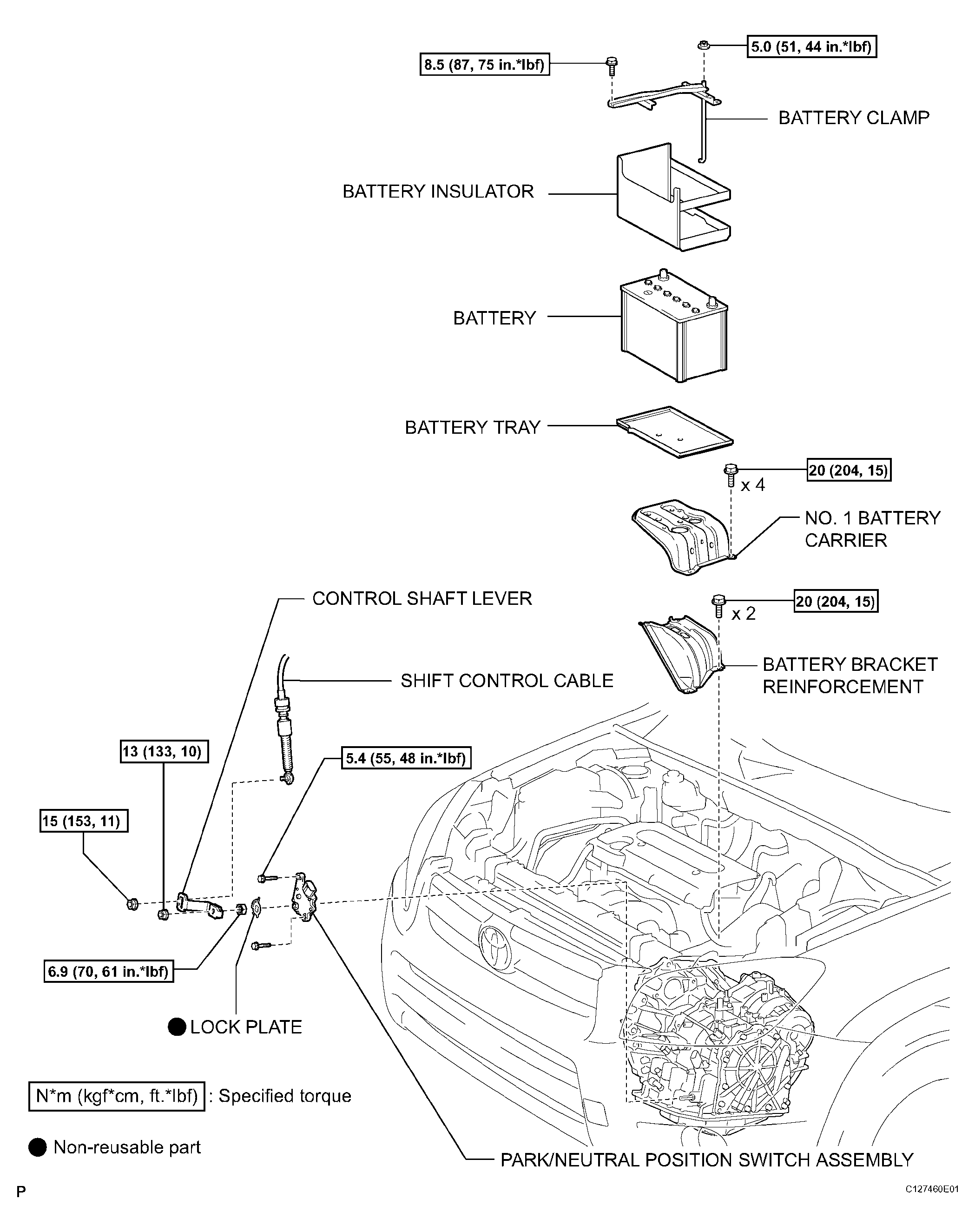

Fig 1: Identifying Park / Neutral Position Switch Components

G04486301

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
