Oil Pump: Reassembly

INSTALL FRONT OIL PUMP OIL SEAL
1. Using SST and a hammer, install a new oil seal to the pump.
  SST 09350-32014 (09351-32140)

  HINT:

  The seal end should be flat with the outer edge of the oil pump.
2. Coat the lip of the oil seal with petroleum jelly.

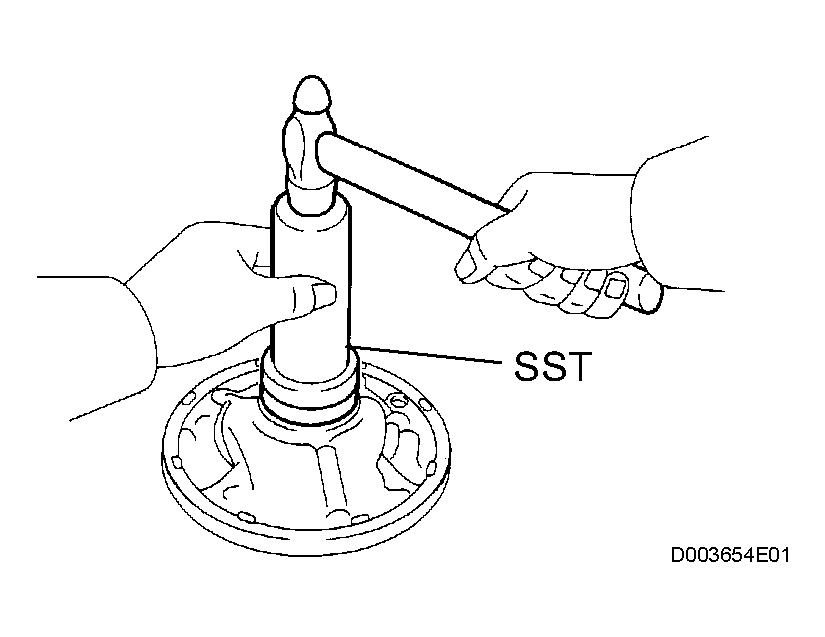

  Fig 1: Installing Front Oil Pump Oil Seal
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT OIL PUMP BODY O-RING
1. Coat the new O-ring with ATF, and install it to the oil pump body.

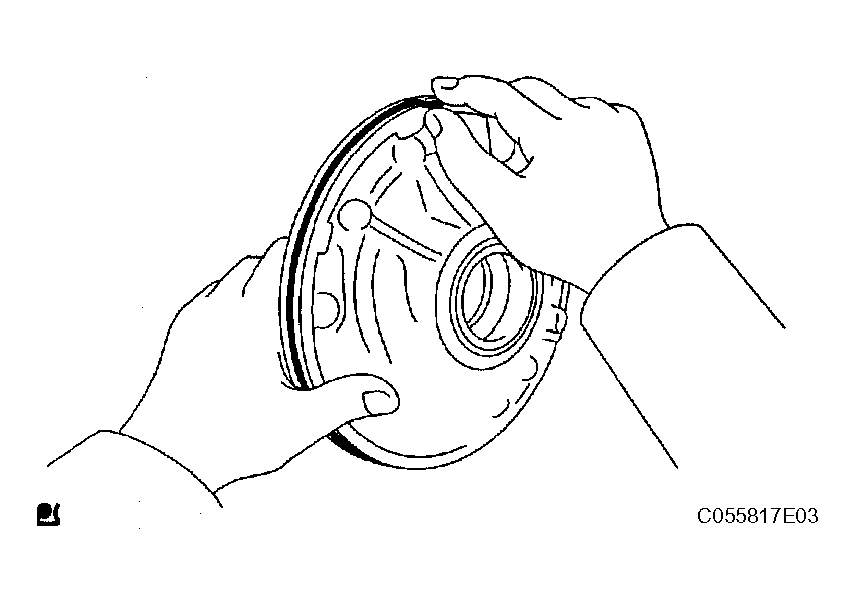

  Fig 2: Installing Front Oil Pump Body O-Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT OIL PUMP DRIVEN GEAR
1. Coat the front oil pump driven gear with ATF, and install it to the oil pump body with the marked side facing up.

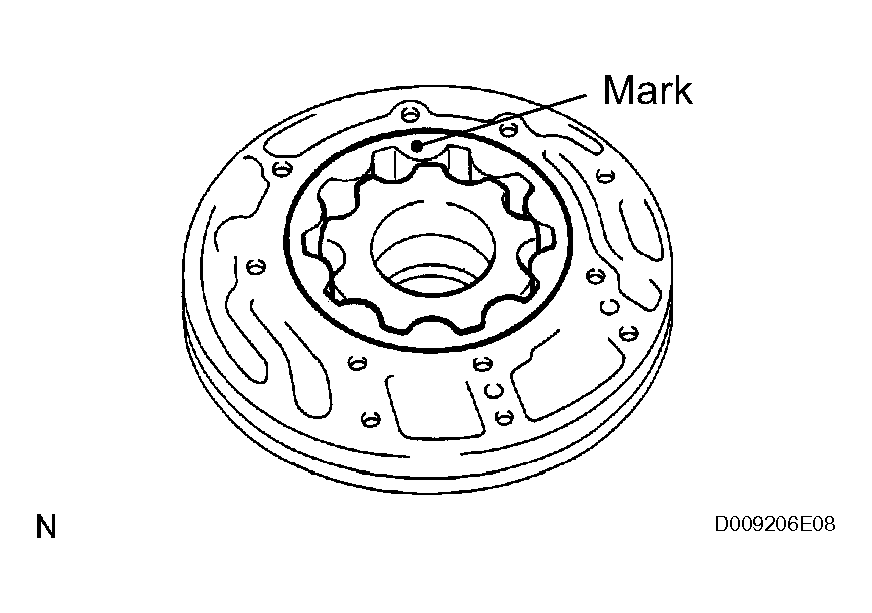

  Fig 3: Installing Front Oil Pump Driven Gear
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT OIL PUMP DRIVE GEAR
1. Coat the front oil pump drive gear with ATF, and install it to the oil pump body with the marked side facing up.

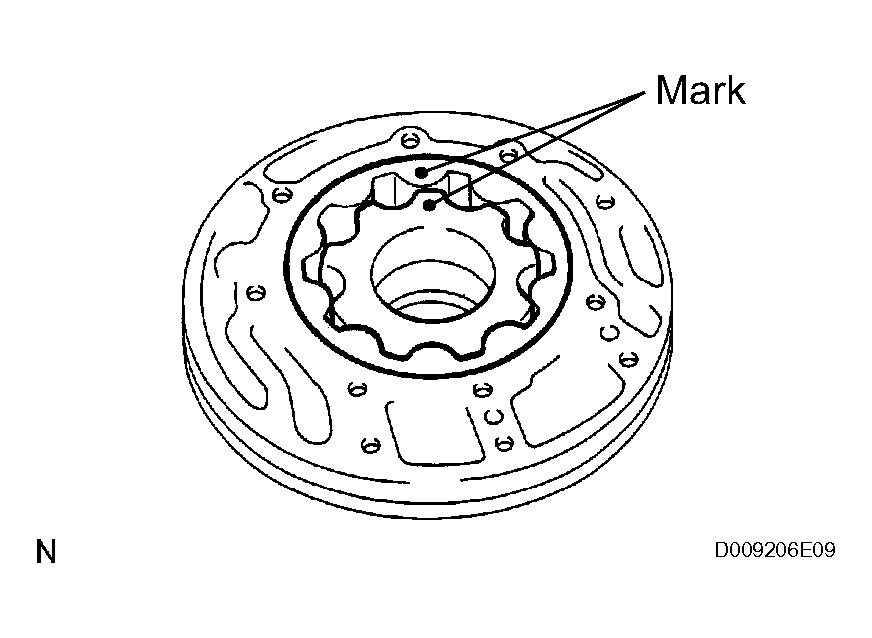

  Fig 4: Installing Front Oil Pump Drive Gear
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL STATOR SHAFT ASSEMBLY
1. Set the stator shaft by aligning each bolt hole.
2. Using a T30 "trox" socket, install the 11 bolts.
  Torque: 9.8 N*m (100 kgf*cm, 87 in.*lbf)

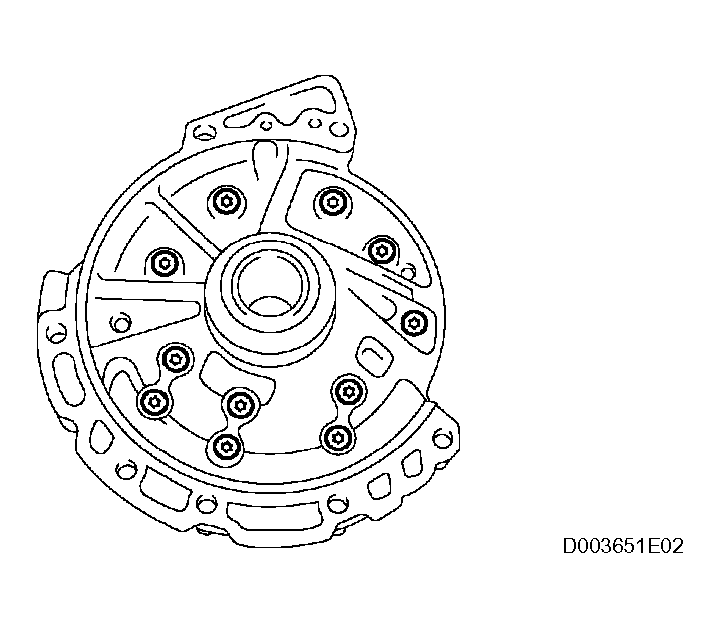

  Fig 5: Installing Stator Shaft Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL CLUTCH DRUM OIL SEAL RING
1. Install the 2 clutch drum oil seal rings.
  NOTE: Do not expand the ring ends excessively.
INSPECT OIL PUMP ASSEMBLY (See INSPECTION )

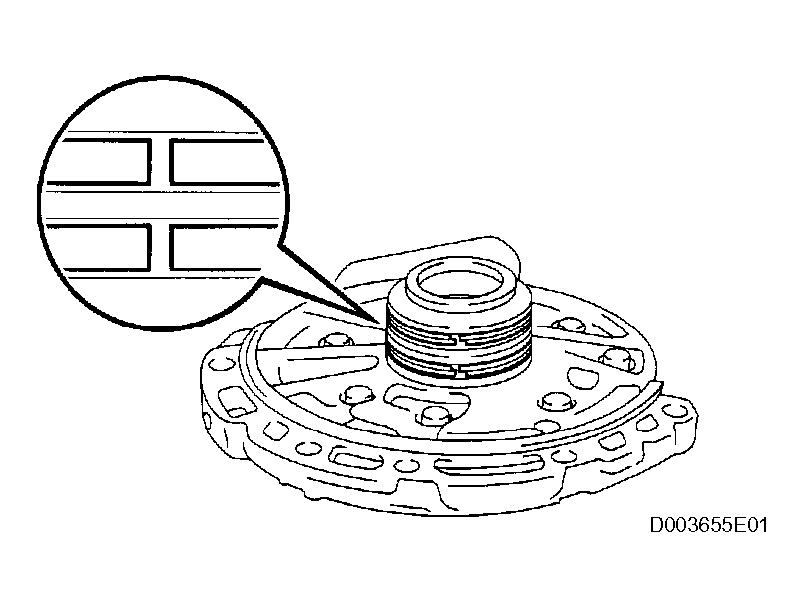

Fig 6: Installing Clutch Drum Oil Seal Ring
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
