Oil Pump: Components

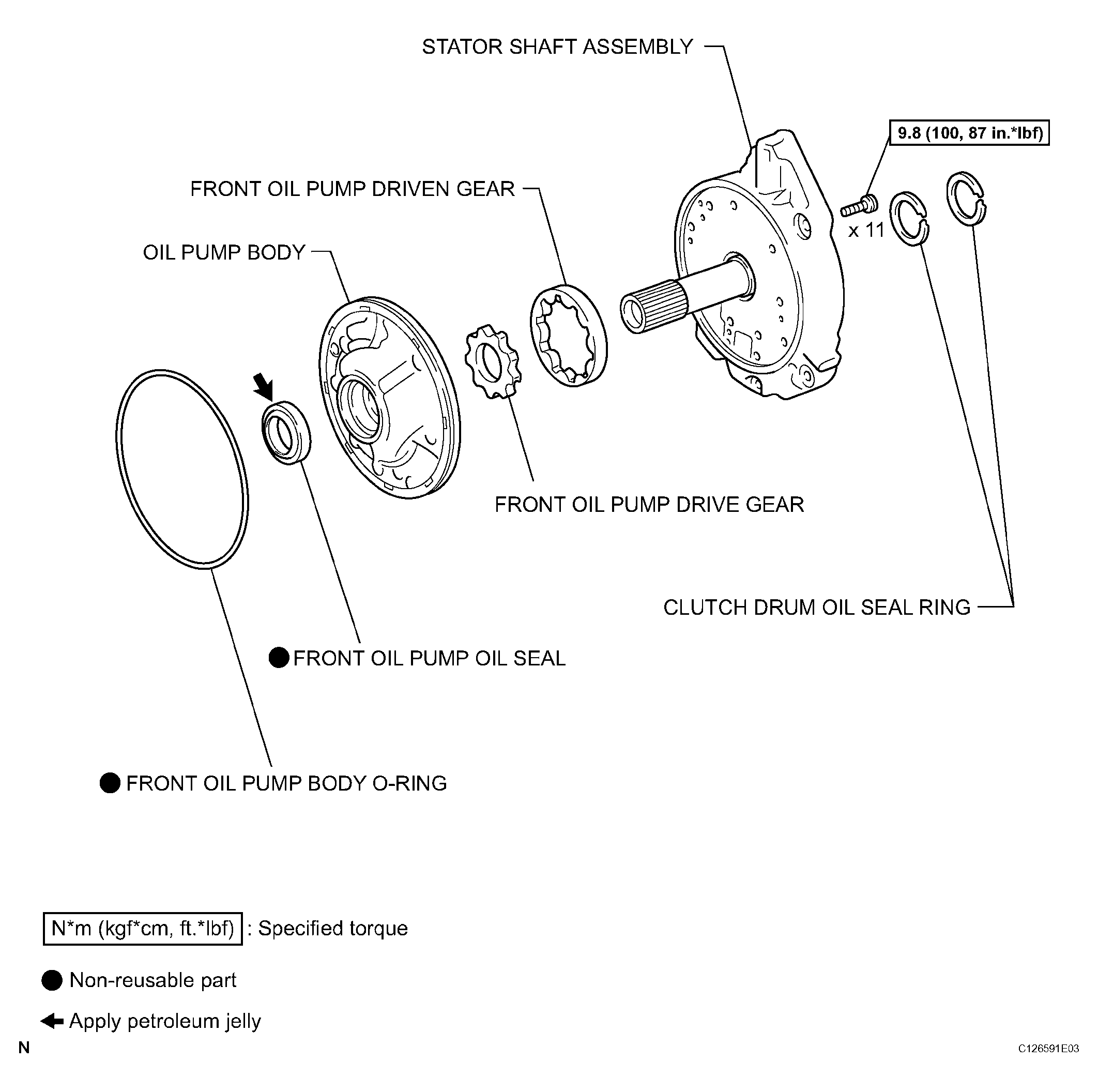

Fig 1: Identifying Oil Pump Components

G04486673

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
