Forward Clutch: Components

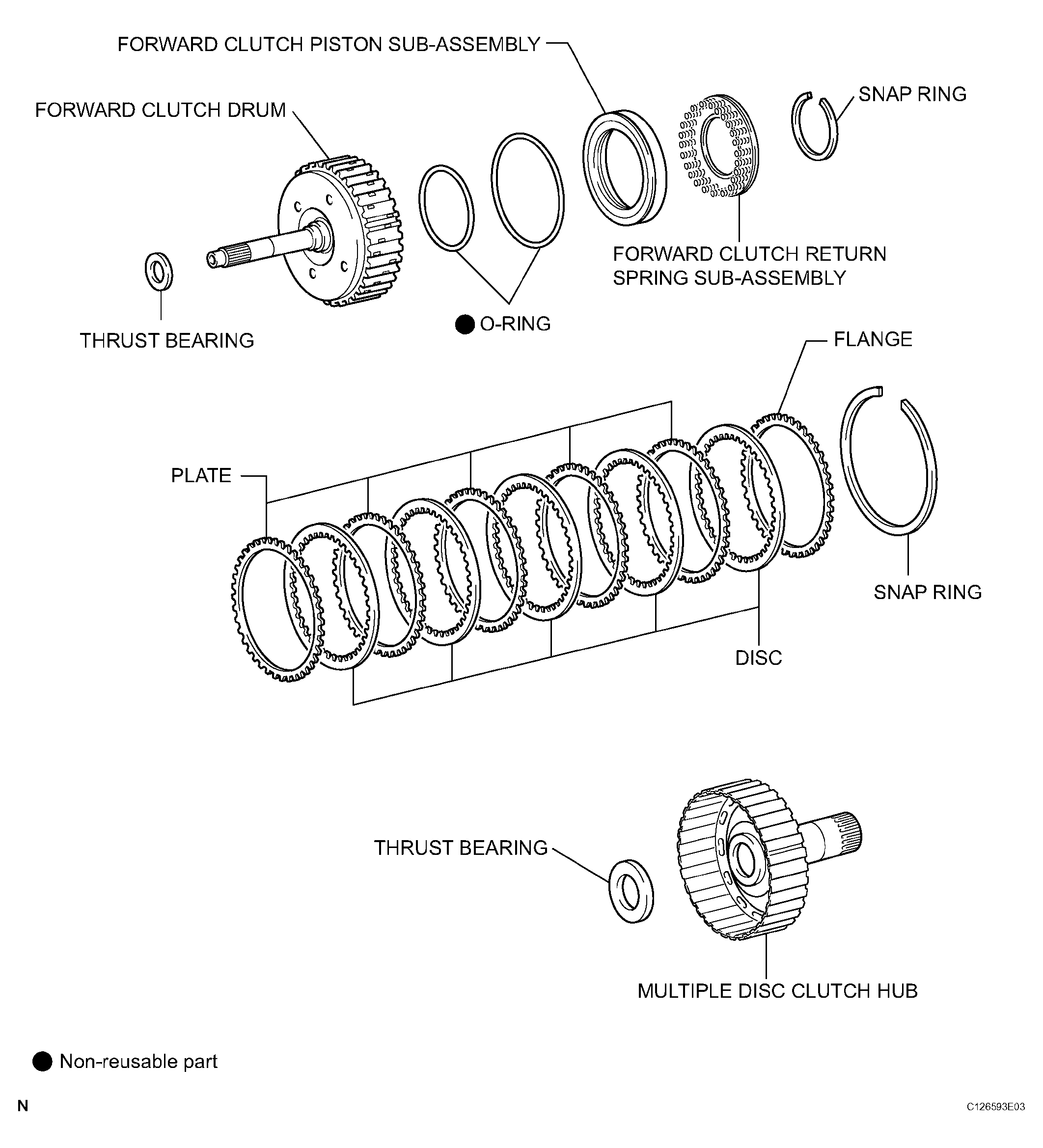

Fig 1: Identifying Forward Clutch Components

G04486702

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
