Floor Shift Assembly: Removal

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY
REMOVE REAR CONSOLE BOX SUB-ASSEMBLY
1. Remove the console box (see ).
DISCONNECT TRANSAXLE CONTROL CABLE ASSEMBLY
1. Disconnect the control cable from the shift lever.

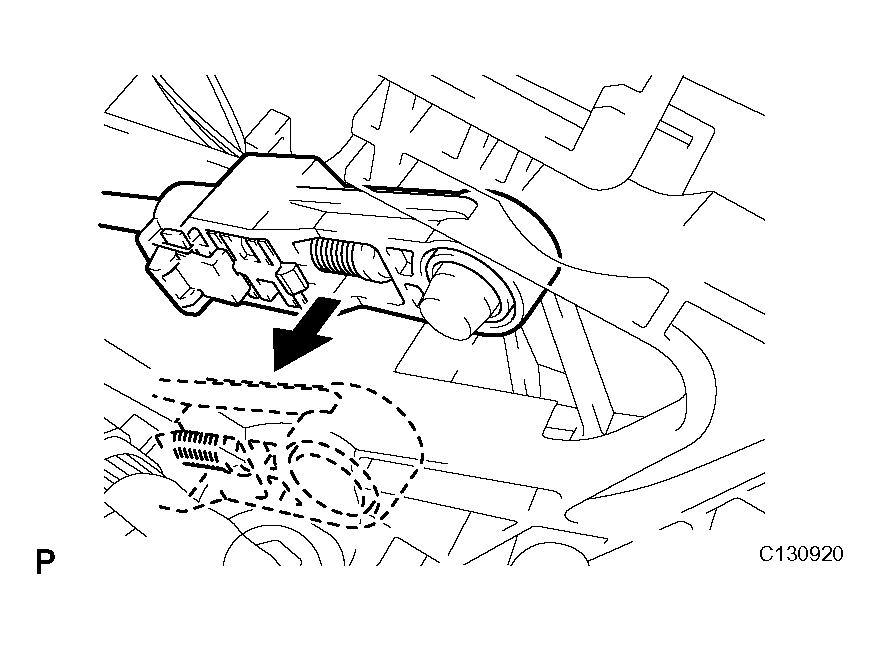

  Fig 1: Disconnecting Control Cable From Shift Lever
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Turn the nut and disconnect the control cable from the shift lever retainer.

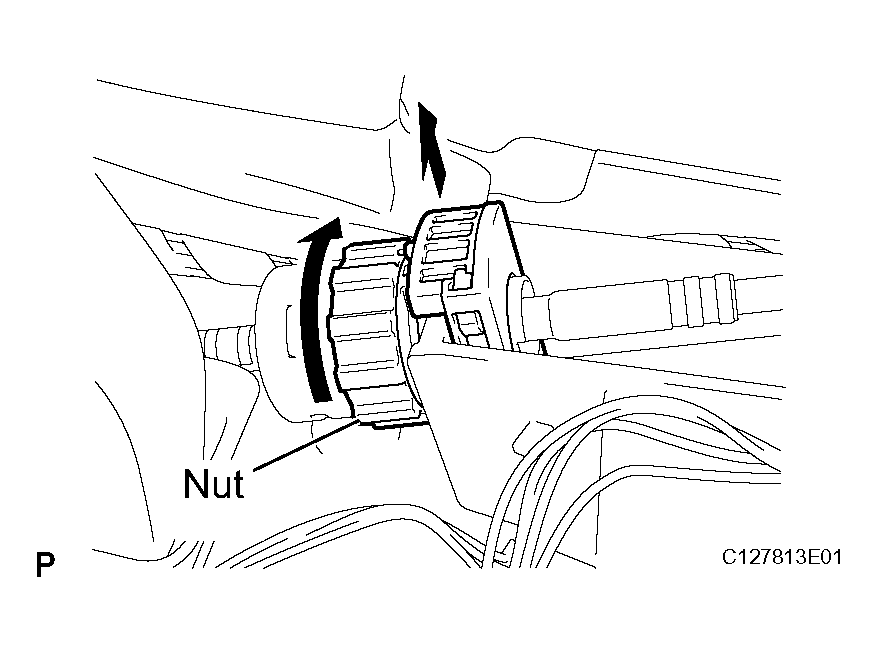

  Fig 2: Disconnecting Control Cable
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FLOOR SHIFT ASSEMBLY
1. Remove the 4 bolts and floor shift.

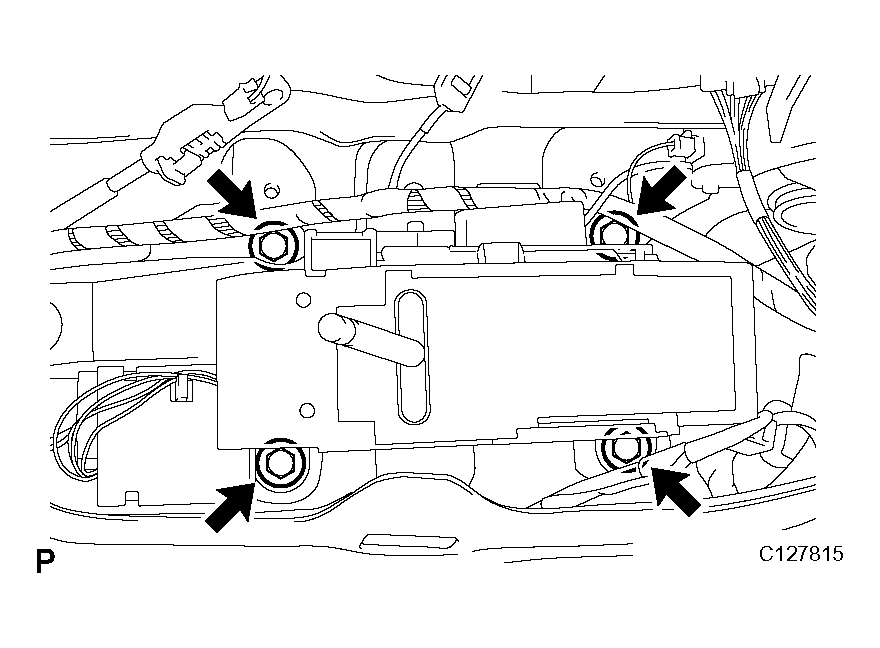

  Fig 3: Removing Floor Shift Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the 2 connectors and detach the clamp.

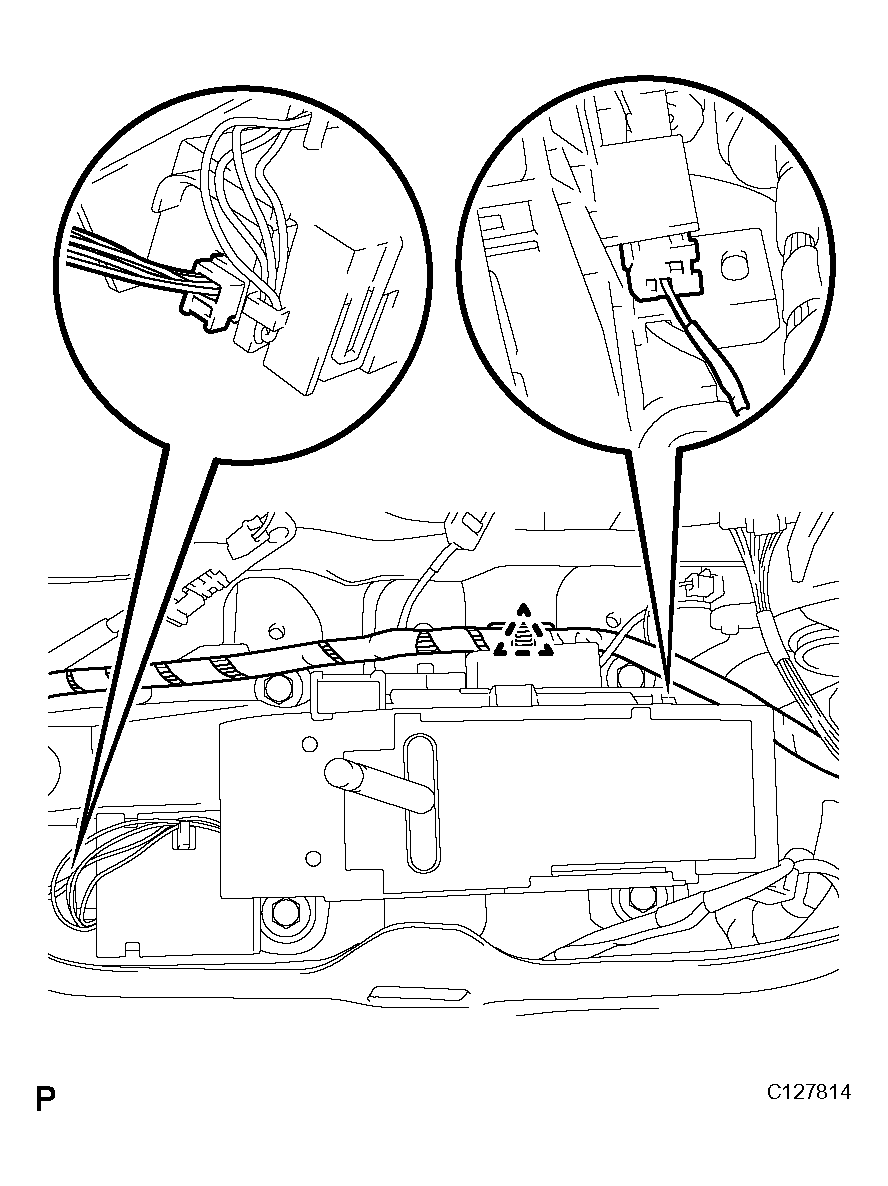

  Fig 4: Disconnecting Connectors
