Floor Shift Assembly: Reassembly

INSTALL SHIFT LOCK RELEASE BUTTON
1. Install the spring and button and attach the claws to the position indicator light housing.
INSTALL INDICATOR LIGHT WIRE SUB-ASSEMBLY

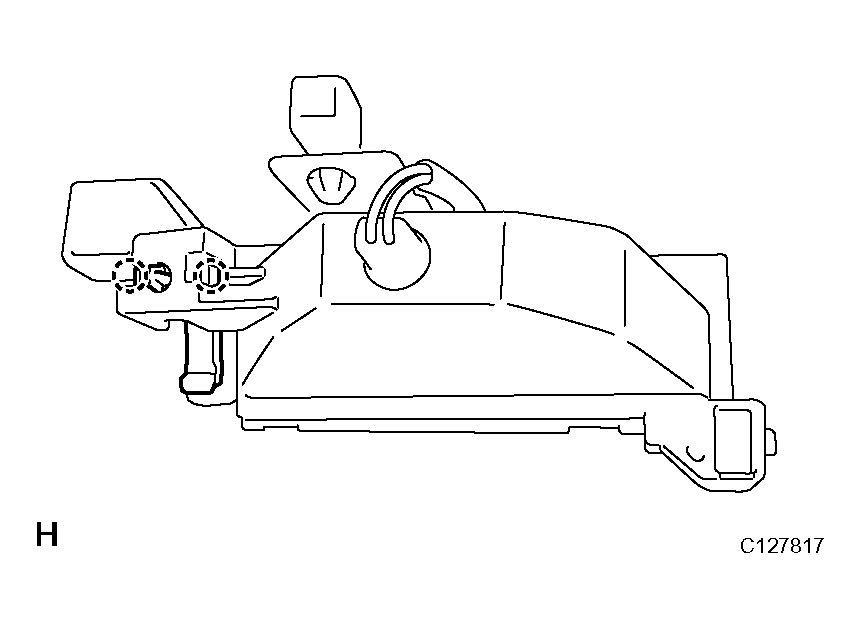

Fig 1: Installing Indicator Light Wire Sub-Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL POSITION INDICATOR LIGHT HOUSING
1. Attach the indicator light housing to the shift position indicator housing with the 2 claws.

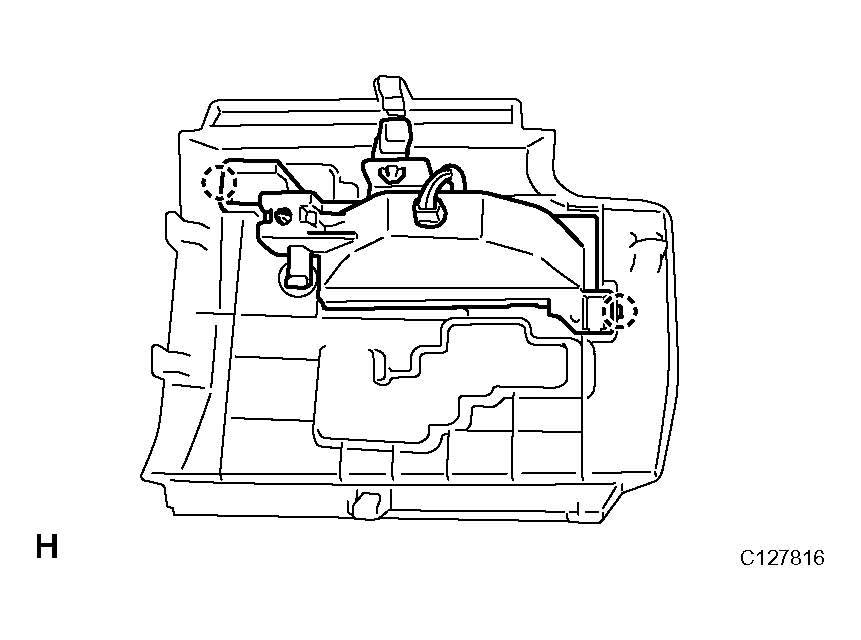

  Fig 2: Installing Position Indicator Light Housing
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL LOWER POSITION INDICATOR HOUSING
1. Install the position indicator slide cover with slide cover No. 2 to the indicator housing.
2. Attach the housing to the floor shift assembly with the 4 claws.

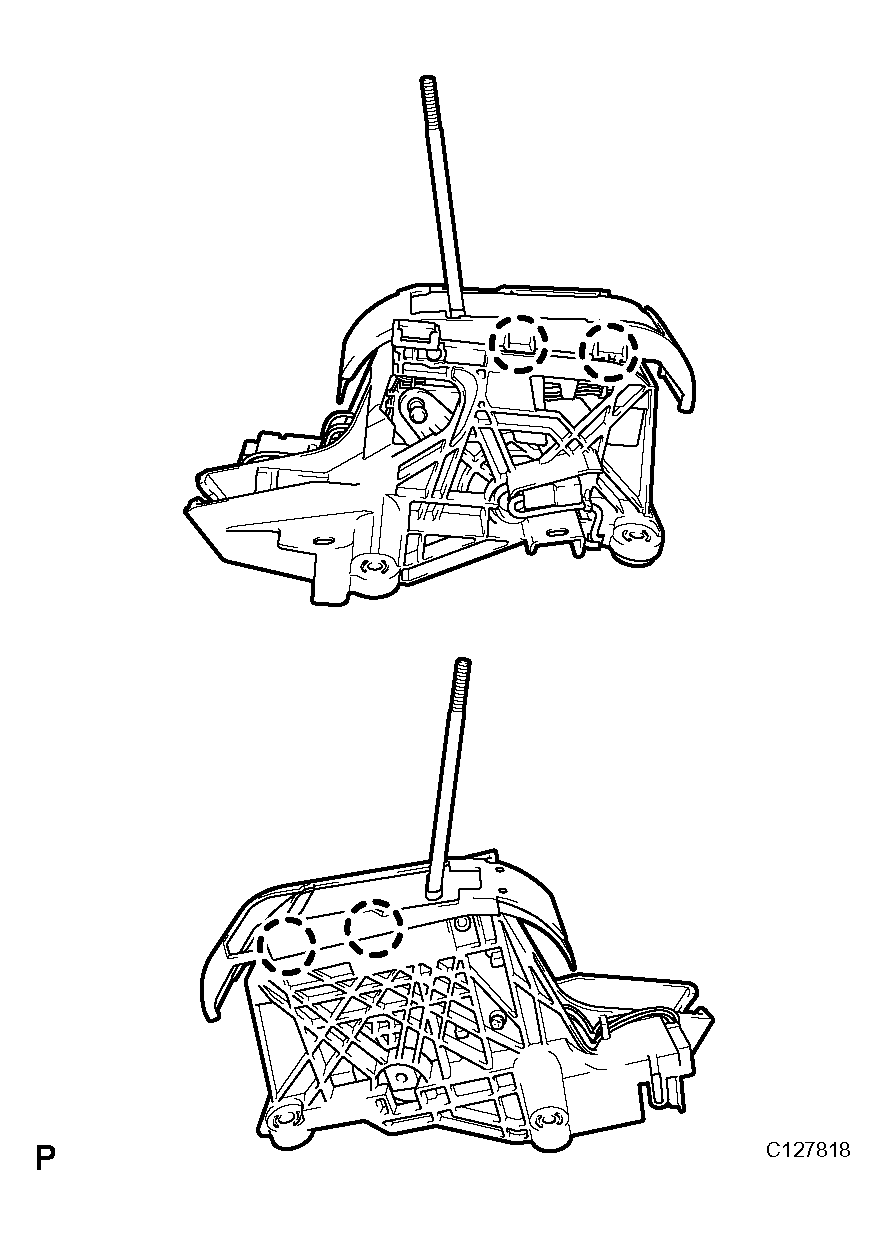

  Fig 3: Installing Lower Position Indicator Housing
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
