Floor Shift Assembly: Disassembly

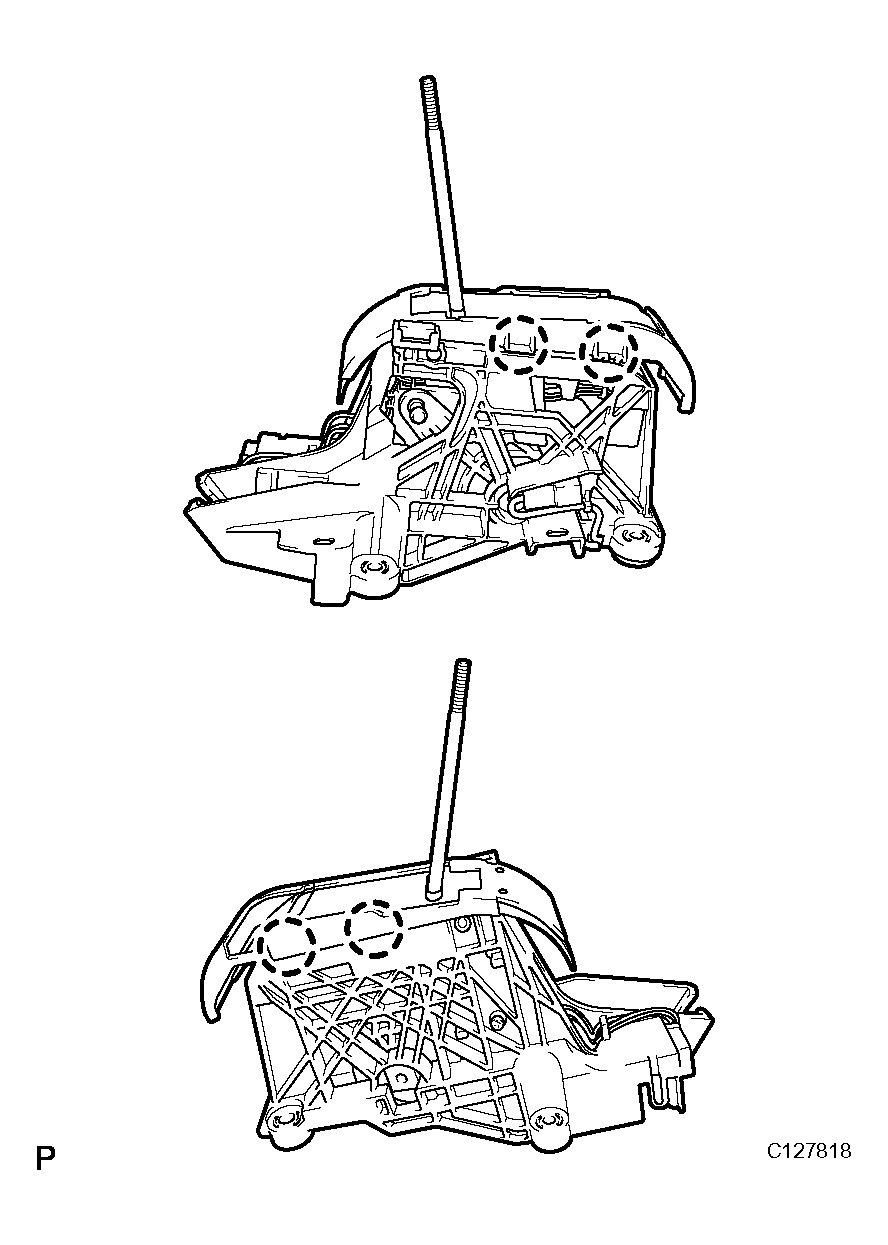

REMOVE LOWER POSITION INDICATOR HOUSING
1. Detach the 4 claws and remove the housing.
2. Remove the position indicator slide cover with slide No. 2 cover.

  Fig 1: Removing Lower Position Indicator Housing
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

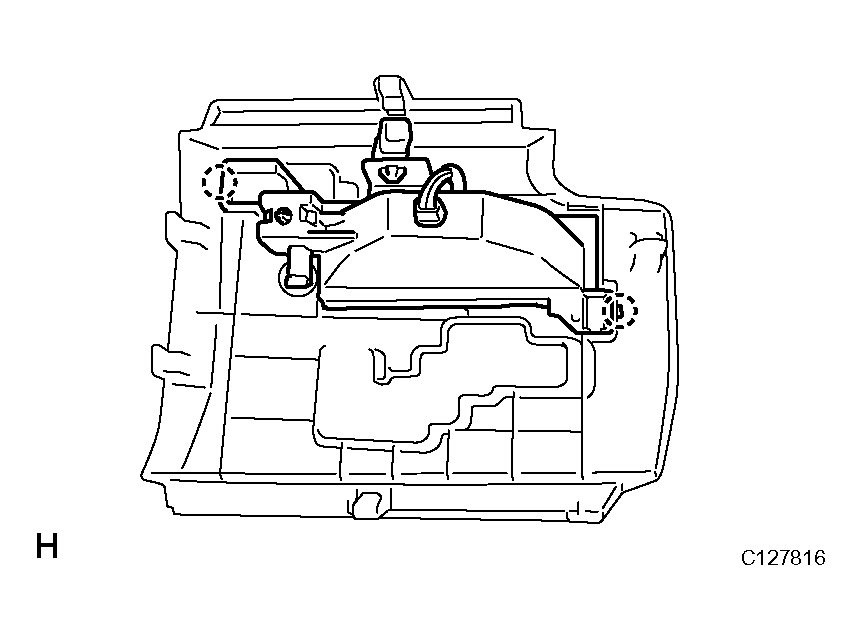

REMOVE POSITION INDICATOR LIGHT HOUSING
1. Detach the 2 claws and remove the indicator light housing from the floor shift position indicator housing.
REMOVE INDICATOR LIGHT WIRE SUB-ASSEMBLY

Fig 2: Removing Indicator Light Wire Sub-Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

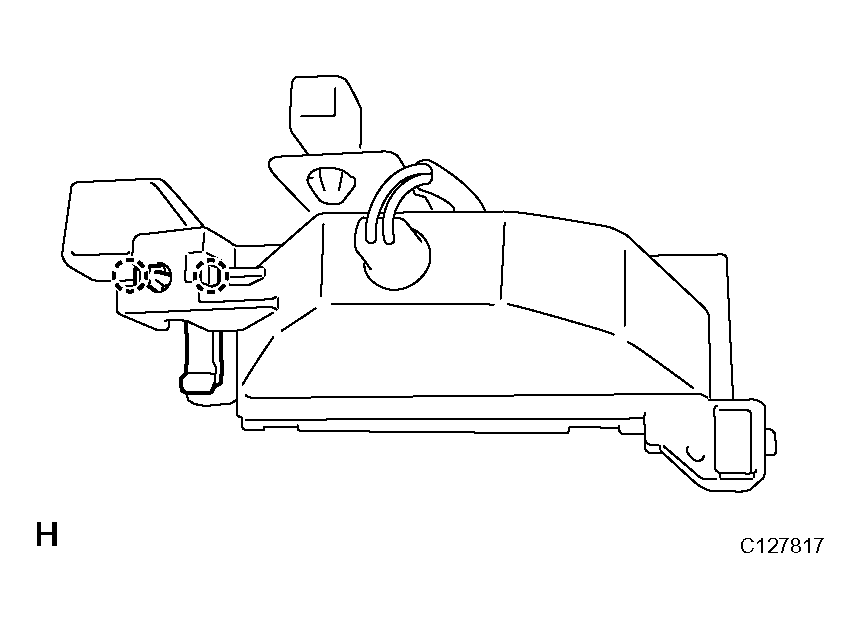

REMOVE SHIFT LOCK RELEASE BUTTON
1. Detach the 2 claws and remove the button and spring from the position indicator light housing.

  Fig 3: Removing Shift Lock Release Button
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
