Home >> Toyota >> 2007 >> RAV4 Base, 2.4 D, AWD >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission - U140F >> Differential Case >> Components

Differential Case: Components

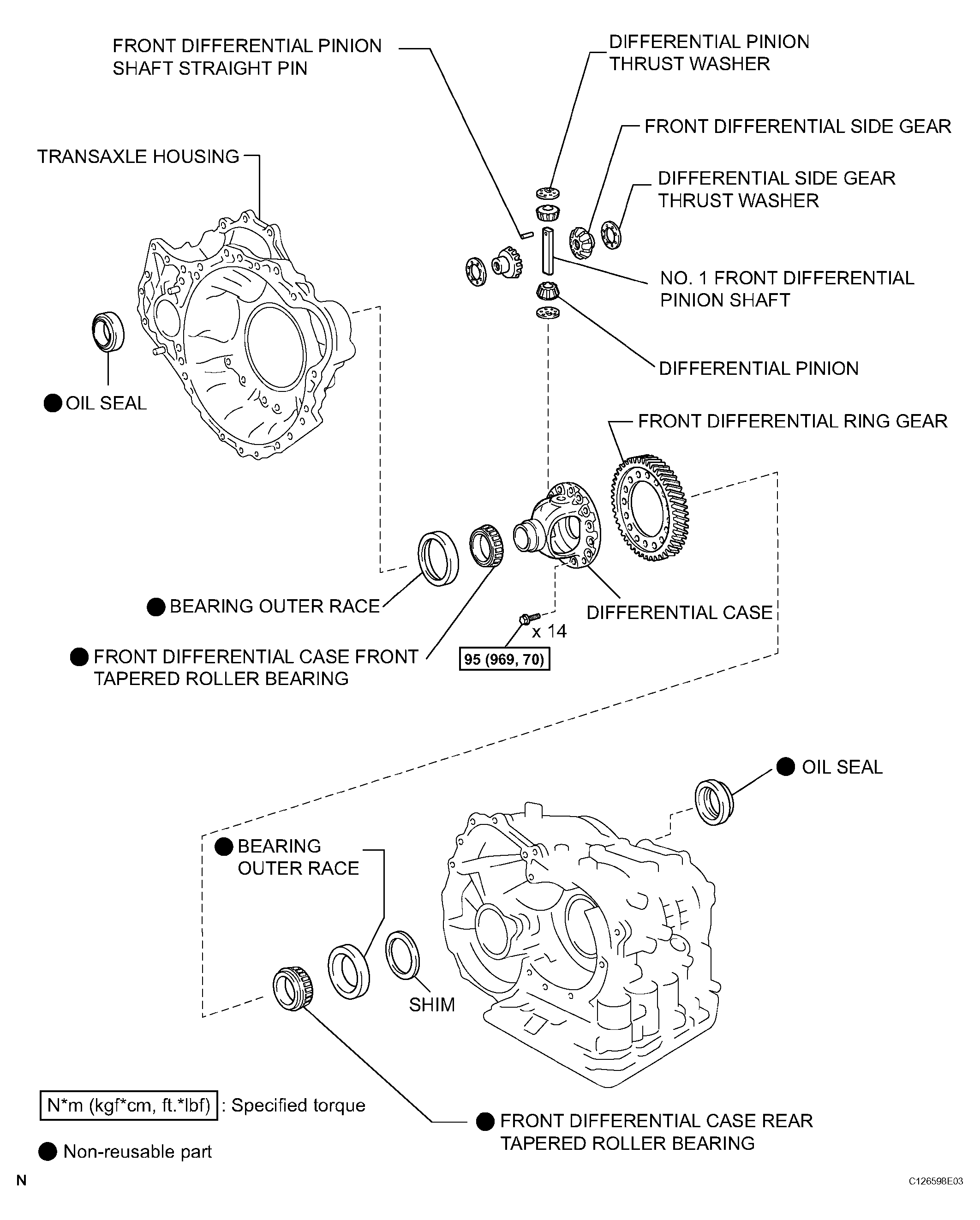

Fig 1: Identifying Differential Case Components

G04486802

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
