Parts Location

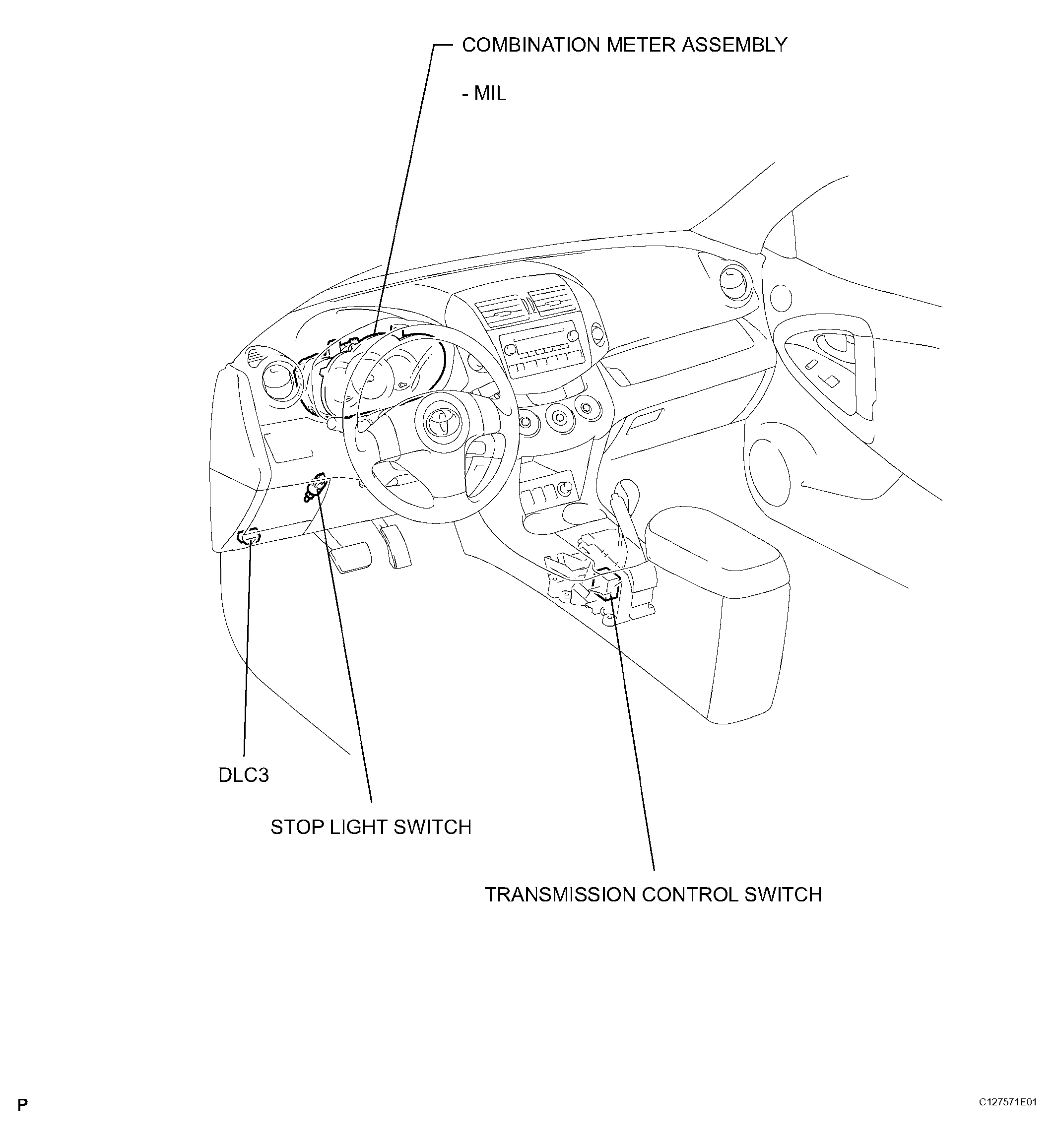

Fig 1: Automatic Transaxle System Parts Location (1 Of 2)
G04486218Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

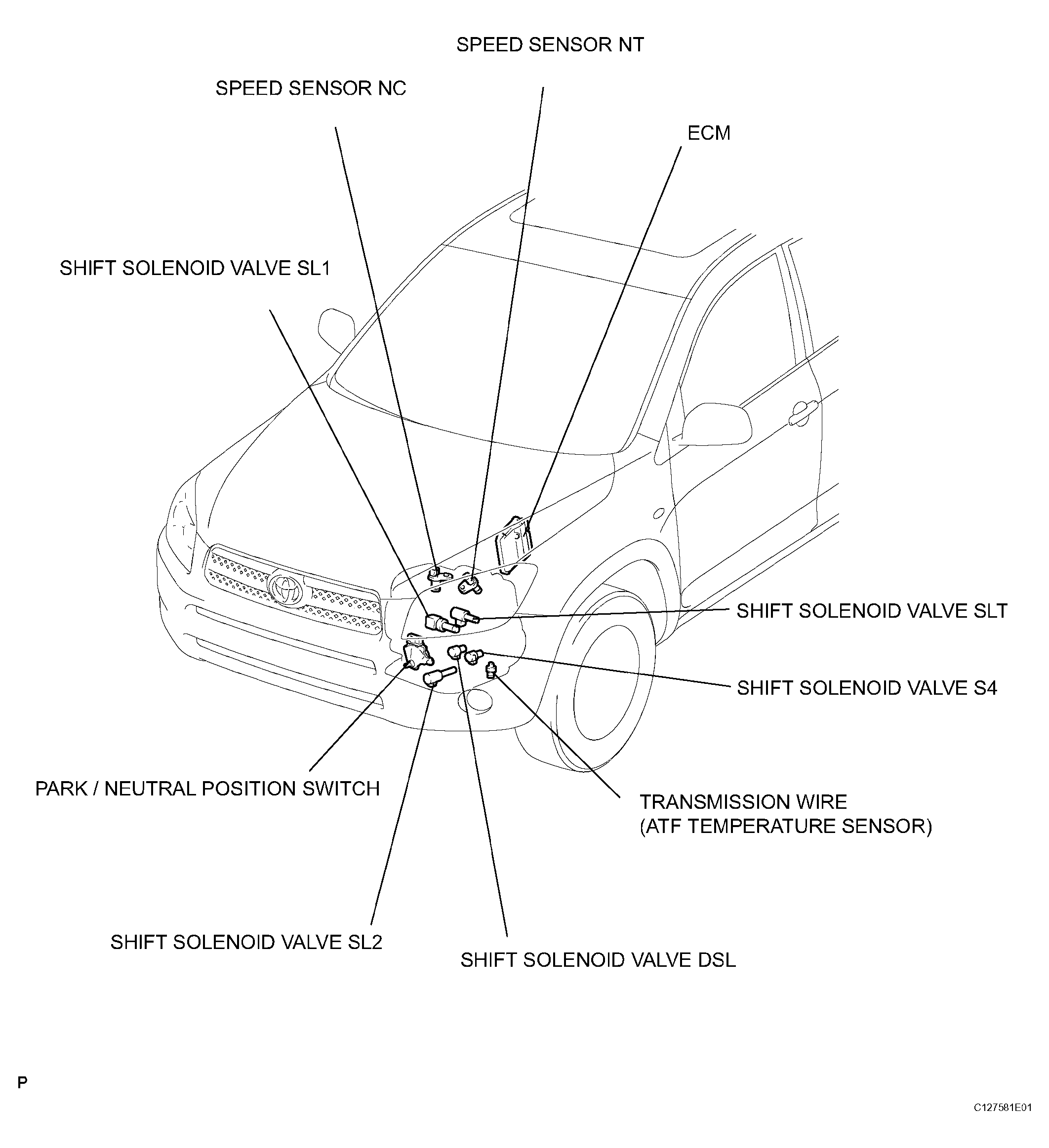

Fig 2: Automatic Transaxle System Parts Location (2 Of 2)
G04486219Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
