Front Seat Inner Belt Assembly: Installation

HINT:

A bolt without a torque specification is shown in the standard bolt chart (see SPECIFIED TORQUE FOR STANDARD BOLTS ).

Refer to appropriate step(s) under "Reassembly and Installation".

INSTALL FRONT SEAT INNER BELT ASSEMBLY (for Power Seat)
1. Install the front seat inner belt assembly with the nut.
  Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

  NOTE: Do not overlap the anchor part of the seat belt and protruding part of the seat adjuster.

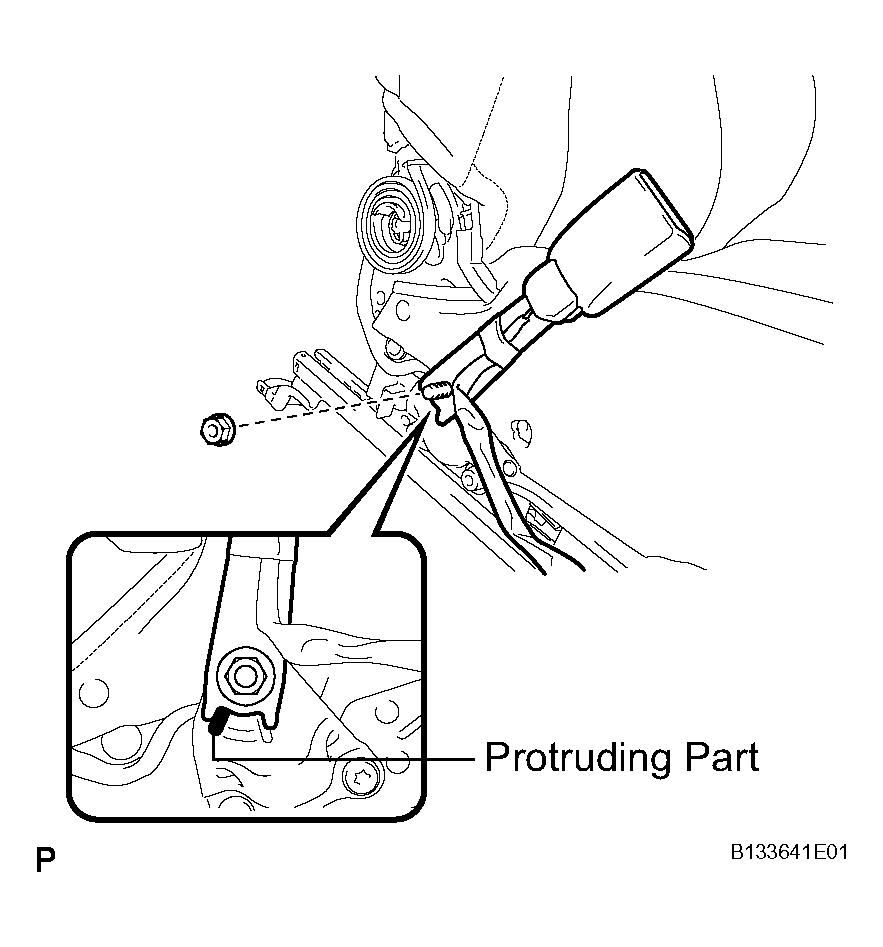

  Fig 1: Installing Front Seat Inner Belt Assembly (Power Seat)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. for driver seat:
  Attach the 2 clamps and connect the 2 connector.
3. for Passenger Seat:
  Attach the clamp and connect the 2 connector.
INSTALL FRONT SEAT INNER BELT ASSEMBLY (for Manual Seat)
1. Install the front seat inner belt assembly with the nut.
  Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

  NOTE: Do not overlap the anchor part of the seat belt and protruding part of the seat adjuster.

  Fig 2: Installing Front Seat Inner Belt Assembly (Manual Seat)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. for driver seat:
  Attach the 3 clamps and connect the 2 connector.
3. for Passenger Seat:
  Attach the 2 clamps and connect the connector.
INSTALL FRONT SEAT CUSHION INNER SHIELD LH (See REASSEMBLY )
INSTALL FRONT SEAT CUSHION INNER SHIELD RH (See REASSEMBLY )
INSTALL FRONT SEAT ASSEMBLY (for Power Seat) (See INSTALLATION )
INSTALL FRONT SEAT ASSEMBLY (for Manual Seat) (See INSTALLATION )
INSTALL FRONT SEAT TRACK BRACKET OUTER COVER LH (See INSTALLATION )
INSTALL FRONT SEAT TRACK BRACKET INNER COVER LH (See INSTALLATION )
INSTALL FRONT SEAT TRACK BRACKET INNER COVER RH
1. Use the same procedures described for the LH side.
INSTALL FRONT SEAT TRACK BRACKET OUTER COVER RH
1. Use the same procedures described for the LH side.
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
