Fuel Tank: Reassembly

WARNING: This page is about a different variant/trim than selected.
  1. INSTALL FUEL SENDER GAUGE ASSEMBLY
    1. Install the sender gauge with the 5 screws.

      Torque: 1.5 N*m (15 kgf*cm, 13 in.*lbf)

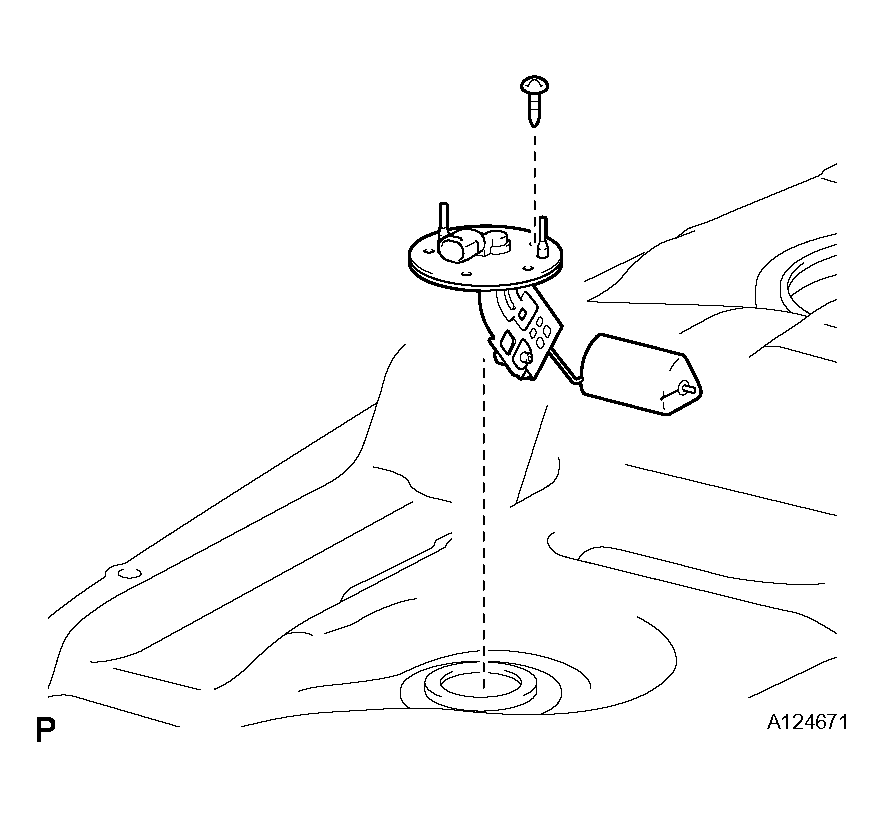

      Fig 1: Installing Sender Gauge With Screws
      G04485604Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL NO. 1 FUEL TANK CUSHION
    1. Install 7 new fuel tank cushions onto the fuel tank as shown in the illustration.

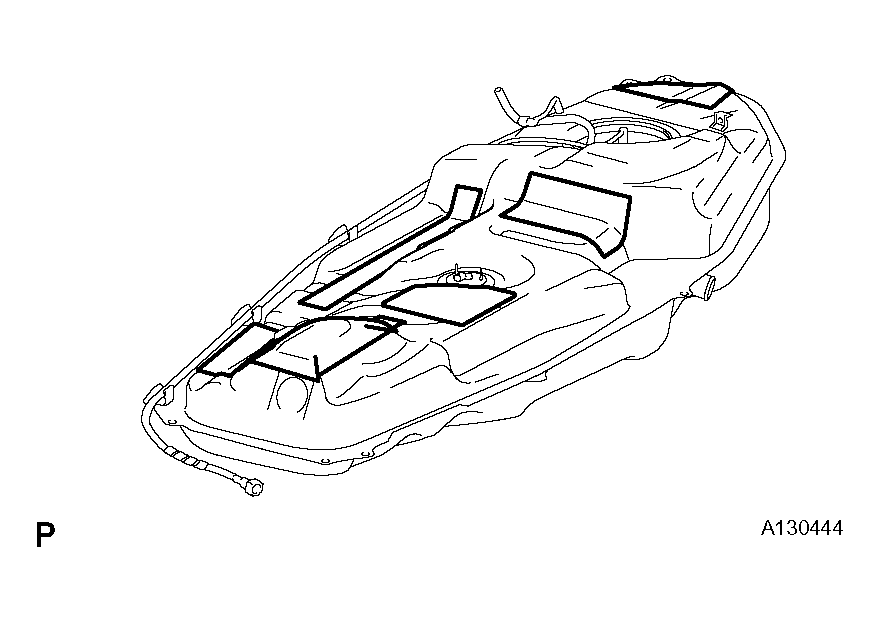

      Fig 2: Installing Fuel Tank Cushions Onto Fuel Tank
      G04485605Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL NO. 1 FUEL TUBE CLAMP
    1. Install the 4 tube clamps to the fuel tank.
  4. INSTALL FUEL TANK MAIN TUBE SUB-ASSEMBLY
    1. Install the tube to the 4 fuel tube clamps (see Fig 3).
  5. INSTALL FUEL SUCTION WITH PUMP ASSEMBLY (See appropriates step(s) under  INSTALLATION  )
  6. INSTALL FUEL TANK VENT TUBE SET PLATE (See  INSTALLATION  )
  7. CONNECT FUEL TANK MAIN TUBE SUB-ASSEMBLY (See  INSTALLATION  )

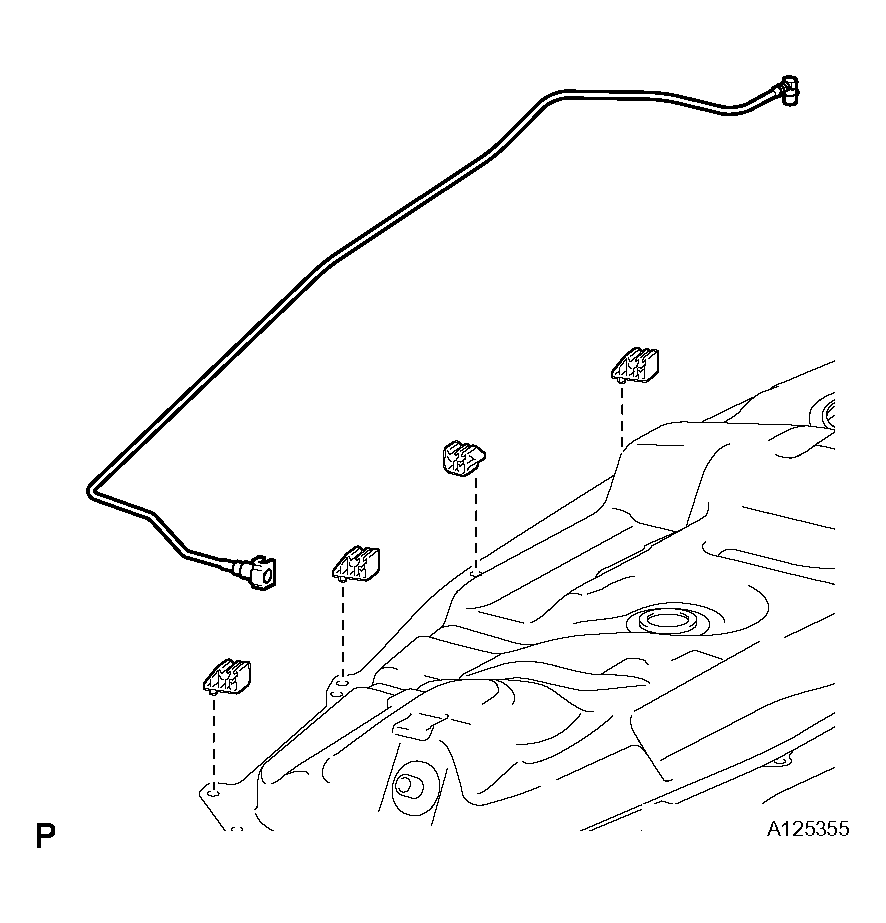

    Fig 3: Installing Tube To Fuel Tube Clamps
    G04485606Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
