Fuel Tank: Disassembly

WARNING: This page is about a different variant/trim than selected.
  1. DISCONNECT FUEL TANK MAIN TUBE SUBASSEMBLY (See  REMOVAL  )
  2. REMOVE FUEL TANK VENT TUBE SET PLATE (See  REMOVAL  )
  3. REMOVE FUEL SUCTION WITH PUMP ASSEMBLY (See  REMOVAL  )
  4. REMOVE FUEL TANK MAIN TUBE SUB-ASSEMBLY
    1. Remove the tube from the 4 fuel tube clamps.
  5. REMOVE NO. 1 FUEL TUBE CLAMP
    1. Remove the 4 tube clamps from the fuel tank.

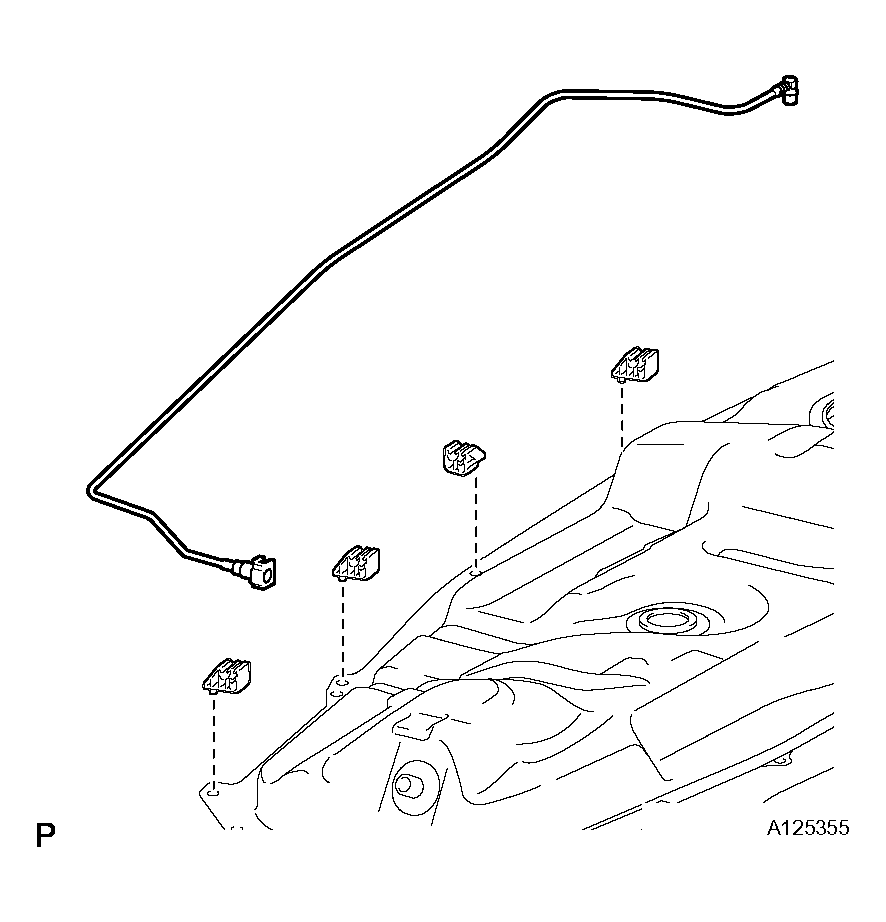

      Fig 1: Removing Tube Clamps From Fuel Tank
      G04485601Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE NO. 1 FUEL TANK CUSHION
    1. Remove the 7 fuel tank cushions from the fuel tank.

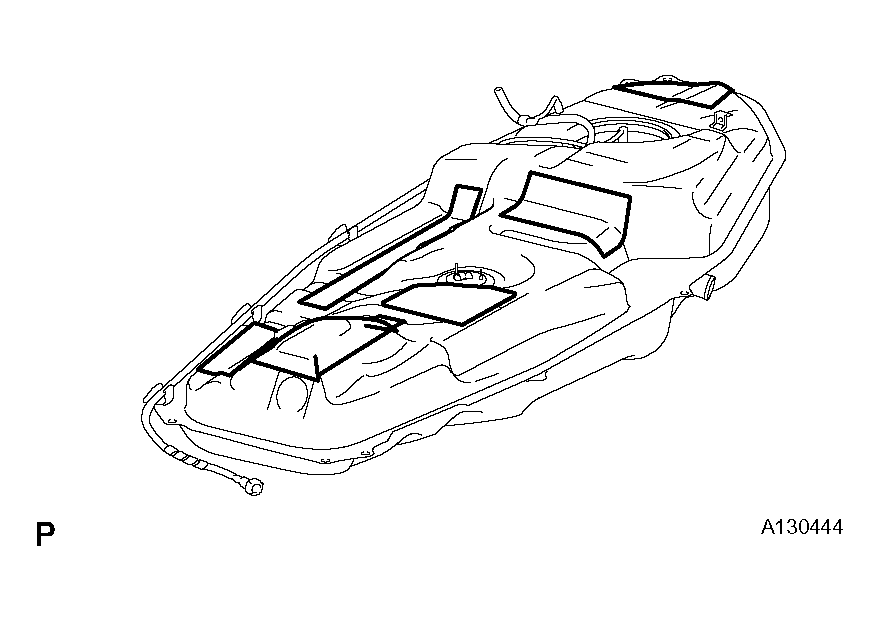

      Fig 2: Removing Fuel Tank Cushions From Fuel Tank
      G04485602Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE FUEL SENDER GAUGE ASSEMBLY
    1. Remove the 5 screws and sender gauge.

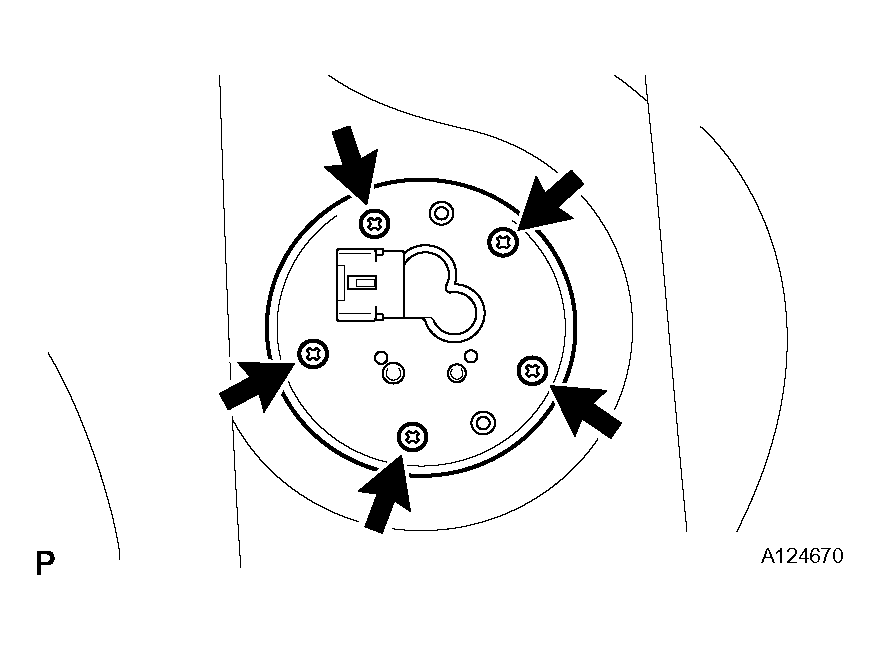

      Fig 3: Removing Screws And Sender Gauge
      G04485603Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
